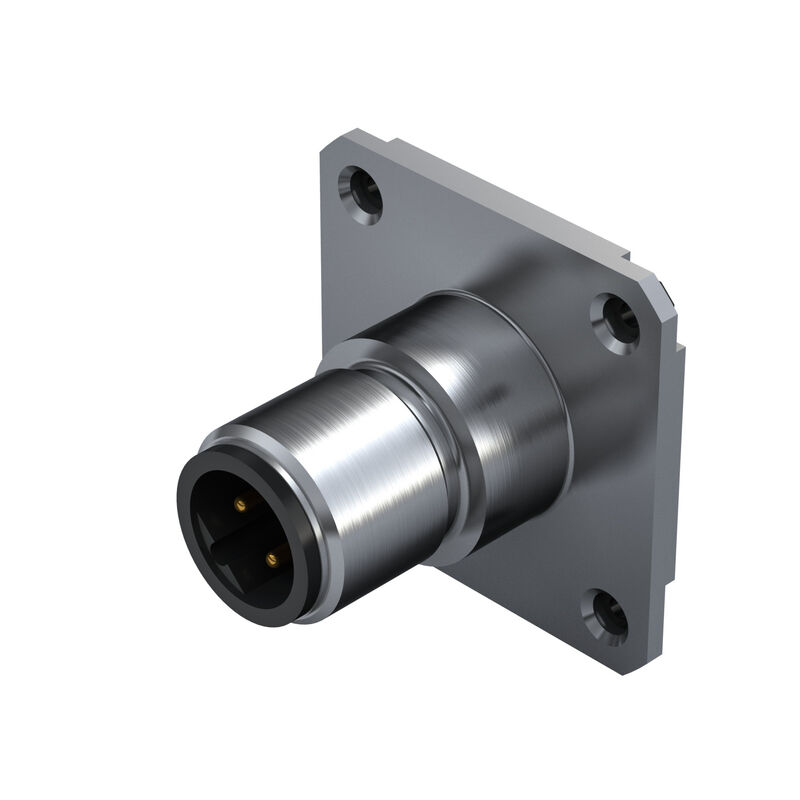

SAIE-M12S-4B-FV-26-LK
SAIE-M12S-4B-FV-26-LK
Dimensioned drawing
SAIE-M12S-4B-FV-26-LK
Pole scheme
Male
SAIE-M12S-4B-FV-26-LK
Installation cut-out

SAIE-M12S-4B-FV-26-LK

Built-in plugs, M12, Mounting thread: , Number of poles: 5, Strand / cable length:

Tuotteen tunnus 2424400000
Lataa tietosivu Engineering Support
Samankaltaiset tuotteet 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Технические данные вставного разъема печатной платы General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

버전
Built-in plugs, M12, Mounting thread: , Number of poles: 5, Strand / cable length:
주문 번호
2424400000
유형
SAIE-M12S-4B-FV-26-LK
GTIN(EAN)
4050118432435
Кол.
10 items

Dimensions and weights

Net weight
20 g

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Технические данные вставного разъема печатной платы

Coding
B-кодировка
Housings
Штекер M12
Number of poles
5
Raccordement du blindage
Нет
Superficie de la carcasa
förnicklad
Type of mounting
Front mounting
Nennspannung
60 V
Rated voltage
250 V (4-pole) / 60 V (5-pole)
Nominal current
4 A
Rated current
4 A
Temperature range
-30…80 °C
Protection degree
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Соединительная резьба
M12
조임 토크
M12: 0.8 Nm
Сопротивление изоляции
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
5
Materiale base della custodia
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Поверхность контакта
Au (Gold)
Type of mounting
Front mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
Contact surface
Au (Gold)

System parameters

Insulation resistance
100 MΩ
Number of poles
5
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003569
ETIM 9.0
EC003569
ETIM 10.0
EC003569
ECLASS 14.0
27-44-01-09
ECLASS 15.0
27-44-01-09
