SAIL-M12WM12G-4B-10U
SAIL-M12WM12G-4B-10U
Dimensioned drawing
Male, angled
SAIL-M12WM12G-4B-10U
Detailed drawing
Straight socket
SAIL-M12WM12G-4B-10U
Pole scheme
M12 = B-coded
SAIL-M12WM12G-4B-10U
Pole scheme
M12 = B-coded
SAIL-M12WM12G-4B-10U
Wiring diagram

SAIL-M12WM12G-4B-10U

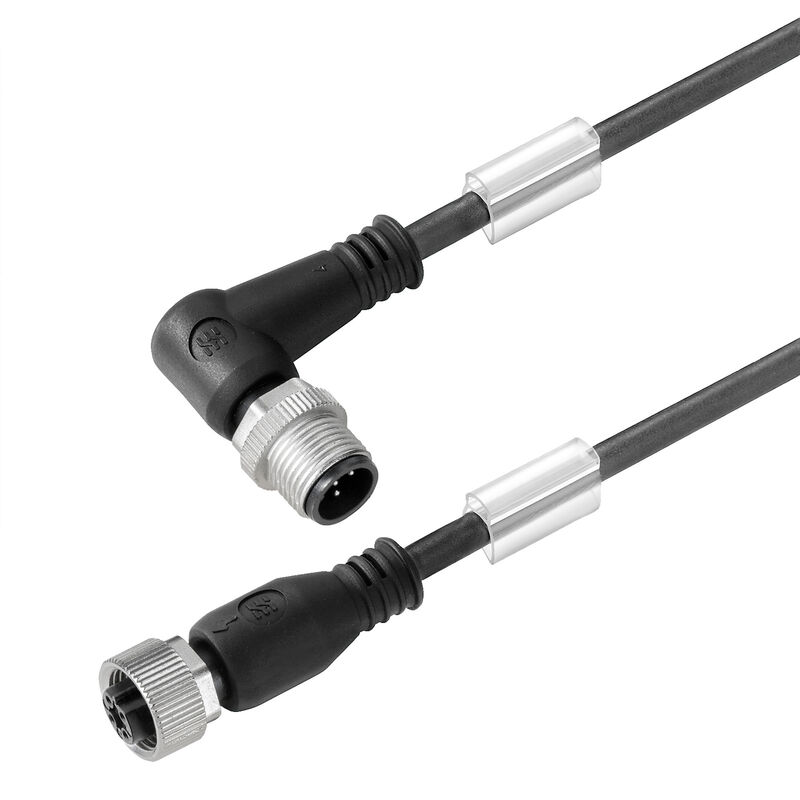

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 10 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1057881000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 7 Verwante producten 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Dopuszczenia
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat-Nr. (cULus)
E307231

General ordering data

Версия
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 10 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1057881000
Typ
SAIL-M12WM12G-4B-10U
GTIN (EAN)
4032248798537
Qty.
1 items

Dimensions and weights

Net weight
288,64 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
10 m
Colour coding
brown
white
blue
black
Configurable cable length
Yes
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Csavarás hossza
1 m
Diametro esterno
4.1 mm + 0.15 mm
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Number of wires
4
Numero di poli
4
Odolnost vůči jiskrám ze sváření
No
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistente a las salpicaduras de soldadura
No
Sheath material
PUR
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m

General technical data

Coding
B-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
IP69
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, angled - bush straight

Electrical properties

공칭 전압
250 V
절연 저항
108 Ω

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, B-coded, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
M12, B-coded, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
