ZDT 2.5/2
Product image
ZDT 2.5/2

ZDT 2.5/2

Série Z, Blobcs de jonction embrochables, Section nominale: 2.5 mm², Raccordement à ressort, Beige foncé

Item No. 1815150000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 44 Related products 161
Approvals Informations générales de commande Dimensions and weights Temperatures Environmental Product Compliance Material data Caractéristiques du système Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Illustrations du produit Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Megfelel
UL File Number Search
[Sito web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

Informations générales de commande

Version
Série Z, Blobcs de jonction embrochables, Section nominale: 2.5 mm², Raccordement à ressort, Beige foncé
Order No.
1815150000
Type
ZDT 2.5/2
GTIN (EAN)
4032248340774
Qty.
50 Pezzo

Dimensions and weights

Depth
52 mm
Profondeur (pouces)
2.047 inch
Profondeur, y compris rail DIN
52.5 mm
Height
80.5 mm
Height (inches)
3.169 inch
Width
5.1 mm
Larghezza (pollici)
0.201 inch
Net weight
9.67 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Temperatura d'esercizio continuo, min.
-50 °C
Temperatura d'esercizio continuo, max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Nincs 0,1 tömeg% feletti SVHC

Material data

Basic material
Wemid
Colour
Beige scuro
UL 94 flammability rating
V-0

Caractéristiques du système

Version

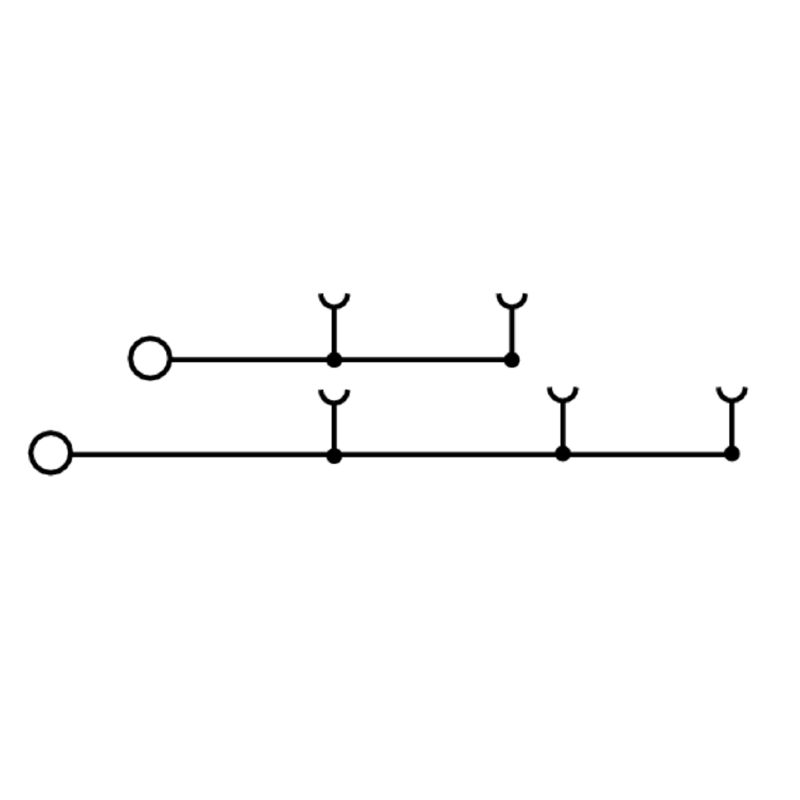

2 raccordements à ressort #96 2 raccordements enfichables
Enfichable
End cover plate required
Oui
Number of potentials
2
Numero di piani
2
Numero dei punti di serraggio per piano
4
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
PE function
아니요

Additional technical data

Explosion-tested version
No
Open sides
right
Type of mounting
gerastet

Conductors for clamping (additional connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
2.5 mm²
Connection type, additional connection
pluggable

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.13 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0.13 mm²
Connection direction
vrchol
Gauge to IEC 60947-1
A2
Number of connections
4
Stripping length
10 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Cross-section for conductor connection:
    • nominal:
      0.5 mm²
    • min.:
      6 mm
    • max.:
      10 mm
  • Leiteranschlussquerschnitt:
    • nominal:
      0.75 mm²
    • min.:
      6 mm
    • max.:
      12 mm
  • Leiteranschlussquerschnitt:
    • nominal:
      1 mm²
    • min.:
      6 mm
    • max.:
      12 mm
  • Leiteranschlussquerschnitt:
    • nominal:
      1.5 mm²
    • min.:
      8 mm
    • max.:
      12 mm
  • Leiteranschlussquerschnitt:
    • nominal:
      2.5 mm²
    • min.:
      8 mm
    • max.:
      12 mm
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Leiteranschlussquerschnitt:
    • nominal:
      0.5 mm²
    • nominal:
      10 mm
  • Leiteranschlussquerschnitt:
    • nominal:
      0.75 mm²
    • nominal:
      10 mm
  • Leiteranschlussquerschnitt:
    • nominal:
      1 mm²
    • nominal:
      10 mm
  • Leiteranschlussquerschnitt:
    • nominal:
      1.5 mm²
    • min.:
      10 mm
    • max.:
      12 mm
  • Leiteranschlussquerschnitt:
    • nominal:
      2.5 mm²
    • min.:
      10 mm
    • max.:
      12 mm
Type of connection
Zugfederanschluss
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0.13 mm²

CSA rating data

Certificate number (cCSAus)
154685-1460993
Current size C (cCSAus)
20 A
Current size D (cCSAus)
5 A
Voltage size C (cCSAus)
300 V
Voltage size D (cCSAus)
600 V
Wire cross section max. (cCSAusX)
12 AWG
Wire cross section min. (cCSAusX)
26 AWG

General

Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Rating data

Rated cross-section
2.5 mm²
Rated voltage
400 V
Max. voltage of clamp support & pluggable system
690 V
Rated DC voltage
500 V
Nominal current
24 A
Current at maximum wires
24 A
IEC 60947-7-x에 따른 체적 저항률
1.33 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
오염 심각도
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Illustrations du produit

Illustration title 02
Illustration du produit
Légende 02
Figure similaire

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
