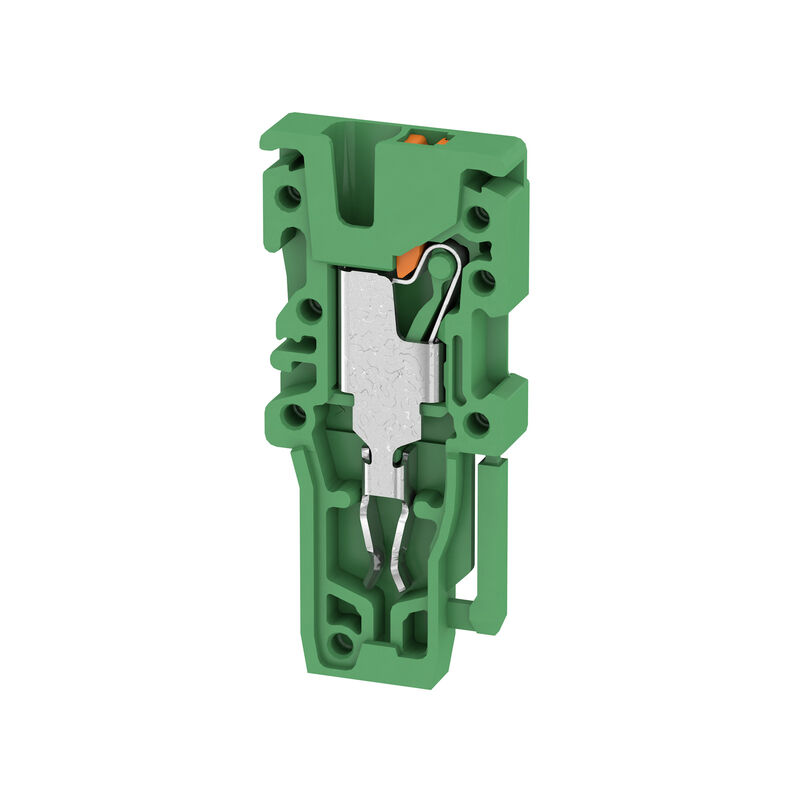

APG 1.5 MI GN
APG 1.5 MI GN

APG 1.5 MI GN

Plug, 1.5 mm², 500 V, 17.5 A, Number of poles: 1, green

Ürün No. 2482300000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 11 aksesuarıdır 18 İlgili ürünler 316
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(cURus)
E60693

General ordering data

Version
Plug, 1.5 mm², 500 V, 17.5 A, Number of poles: 1, green
Order No.
2482300000
Type
APG 1.5 MI GN
GTIN (EAN)
4050118494365
수량
50 adet

Dimensions and weights

Depth
31,15 mm
Depth (inches)
1,226 inch
Height
14 mm
Height (inches)
0,551 inch
Width
3,5 mm
Width (inches)
0,138 inch
Масса нетто
1,146 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material básico
Wemid
Colour
green
Colour of operational elements
orange
UL 94 flammability rating
V-0

System specifications

Abschlussplatte erforderlich
Yes
電位数
1
Number of levels
1

Additional technical data

Type de montage
Plugged

Conductors for clamping (rated connection)

Blade size
0.4 x 2.0 mm
Clamping range, max.
1,5 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, stranded, max.
1,5 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A1
Number of connections
1
Stripping length
10 mm
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
1,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

General

Number of poles
1
Standards
In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26

Rating data

Sección nominal
1,5 mm²
Bemessungsspannung
500 V
隣接端子への定格電圧
500 V
Rated DC voltage
500 V
Nominal current
17,5 A
최대 와이어에서 전류
17,5 A
표준 규격
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,83 mΩ
Rated impulse withstand voltage
6 kV
Moc stratna zgodnie z wymaganiami IEC 60947-7-x
0,56 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
14 AWG
Conductor size Field wiring max. (cURus)
14 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Průřez vodiče propojení z výroby min. (cURus)
26 AWG
Velikost napětí C (cURus)
300 V
Voltage size B (cURus)
300 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
