APGTB 1.5 FT 3C/1 BL
Product image

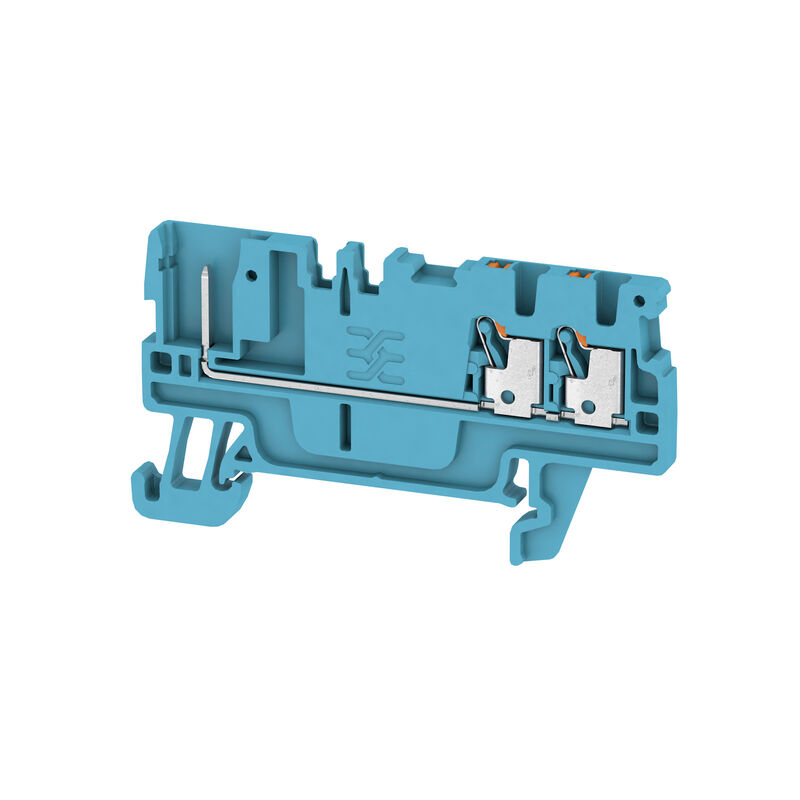

APGTB 1.5 FT 3C/1 BL

APGTB 1.5 FT 3C/1 BL

Morsetti componibili innestabili, PUSH IN, 1.5 mm², 500 V, 17.5 A, blu

N.º de artículo 2482190000
Abrir en el configurador
Descargar hoja de datos Soporte técnico Descargas de productos
Accesorios 69 Productos relacionados 161
Omologazioni Dati generali per l’ordinazione Dimensioni e pesi Temperature Conformità ambientale del prodotto Dati dei materiali Dati di dimensionamento IECEx/ATEX Dati caratteristici del sistema Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Dati dimensionamento UL rating data Classifications

Omologazioni

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/b4580cc2-0460-4c2d-b9fc-c5c85c041f2f/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Соответствовать
UL File Number Search
[Sito web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

Dati generali per l’ordinazione

Version
Morsetti componibili innestabili, PUSH IN, 1.5 mm², 500 V, 17.5 A, blu
Order No.
2482190000
Type
APGTB 1.5 FT 3C/1 BL
GTIN (EAN)
4050118494259
Qty.
50 items

Dimensioni e pesi

Depth
33,5 mm
Profondità (pollici)
1,319 inch
Profondità inclusa guida DIN
34,5 mm
Height
62 mm
높이 (인치)
2,441 inch
Width
3,5 mm
Ширина (в дюймах)
0,138 inch
Net weight
4,7 g

Temperature

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Temperatura d'esercizio continuo, min.
-60 °C
Temperatura d'esercizio continuo, max.
130 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
Нет SVHC выше 0,1 wt%

Dati dei materiali

Basic material
Wemid
Colour
blue
Colour of operational elements
arancione
UL 94 flammability rating
V-0

Dati di dimensionamento IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7940U
Certificate No. (IECEX)
IECEXTUR16.0046U
Spannung max (ATEX)
500 V
Current (ATEX)
10.5 A
Leiterquerschnitt max (ATEX)
1.5 mm²
Max. voltage (IECEX)
500 V
電流（IEEX）
10.5 A
Wire cross section max. (IECEX)
1.5 mm²
Marking EN 60079-7
Ex ec II C Gc
Etiqueta Ex 2014/34/UE
II 3 G D

Dati caratteristici del sistema

End cover plate required
Sì
Anzahl der Potentiale
1
Anzahl der Etagen
1
Antal klämställen per våning
3
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
いいえ
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Installation advice
Rail
Open sides
derecha
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No

Conductors for clamping (additional connection)

Connection type, additional connection
pluggable

Conductors for clamping (rated connection)

Blade size
0.4 x 2.0 mm
Clamping range, max.
1,5 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, stranded, max.
1,5 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A1
Number of connections
3
Stripping length
8 mm
Type of connection
PUSH IN
Type of connection 2
Plug-in connection
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
1,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

CSA rating data

Certificate No. (CSA)
200039-70089609
Current size B (CSA)
13 A
Current size C (CSA)
13 A
Current size D (CSA)
5 A
Voltage size B (CSA)
300 V
Voltage size C (CSA)
300 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
14 AWG
Wire cross section min. (CSA)
26 AWG

General

Installation advice
Rail
Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26

Dati dimensionamento

Rated cross-section
1,5 mm²
Rated voltage
500 V
Rated DC voltage
500 V
Nominal current
17,5 A
Current at maximum wires
17,5 A
Объемное сопротивление по стандарту IEC 60947-7-x
1,83 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0,56 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
14 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
14 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size B (cURus)
13 A
Current size C (cURus)
13 A
Current size D (cURus)
5 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
