APGTB 1.5 FT 3C/1 RD
APGTB 1.5 FT 3C/1 RD

APGTB 1.5 FT 3C/1 RD

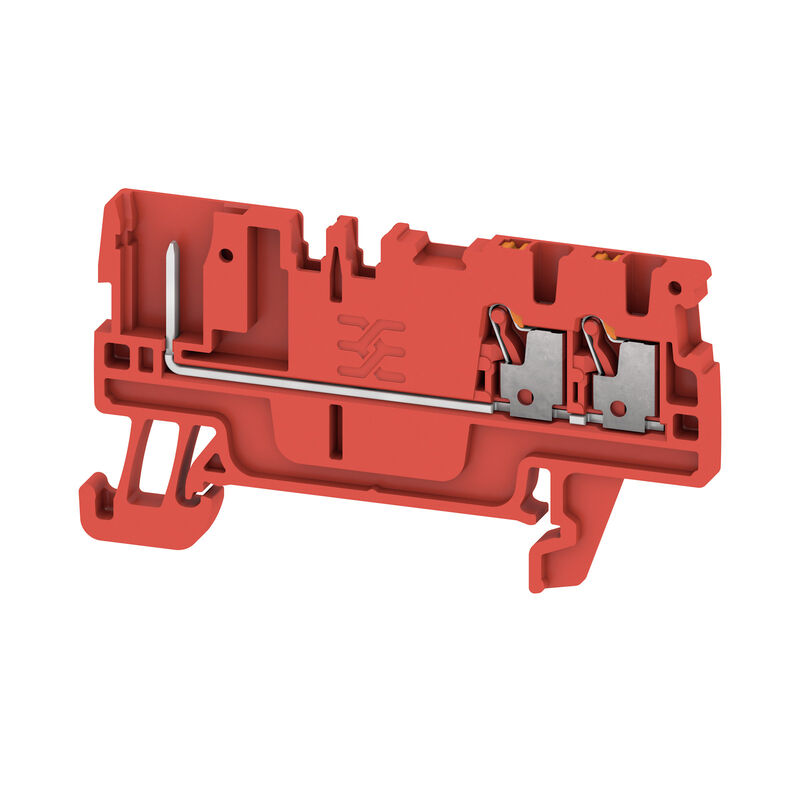

Plug-in modular terminals, PUSH IN, 2.5 mm², 500 V, 17.5 A, red

Item No. 2762010000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 2 Related products 162
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Ausfuehrung
Plug-in modular terminals, PUSH IN, 2.5 mm², 500 V, 17.5 A, red
Order No.
2762010000
Typ
APGTB 1.5 FT 3C/1 RD
GTIN(EAN)
4064675012962
Qty.
50 items

Dimensions and weights

Tiefe
33,5 mm
Depth (inches)
1,319 inch
Höhe
62 mm
Height (inches)
2,441 inch
Szélesség
3,5 mm
Width (inches)
0,138 inch
Net weight
4,7 g

Temperatures

Температура хранения
-25 °C...55 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Farbe
red
Colour of operational elements
orange
Grado inflamabilidad según UL 94
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7940U
Certificate No. (IECEX)
IECEXTUR16.0046U
Wire cross section max. (ATEX)
1.5 mm²
Wire cross section max. (IECEX)
1.5 mm²

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
3
Количество потенциалов на уровень
1
Уровни с внутр. перемычками
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
Yes
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35

Conductors for clamping (additional connection)

Connection type, additional connection
pluggable

Conductors for clamping (rated connection)

Blade size
0.4 x 2.0 mm
Clamping range, max.
1,5 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, stranded, max.
1,5 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A1
Number of connections
3
Stripping length
8 mm
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
1,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

General

Ledardiameter, AWG, max
AWG 14
Mounting rail
TS 35
Wire connection cross section AWG, min.
AWG 26

Rating data

Jmenovitý průřez
2,5 mm²
Märkspänning
500 V
Rated DC voltage
500 V
Nennstrom
17,5 A
Current at maximum wires
17,5 A
Volume resistance according to IEC 60947-7-x
1,83 mΩ
Névleges lökőfeszültség
6 kV
Puissance dissipée conformément à CEI 60947-7-x
0,56 mW
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
14 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
14 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size B (cURus)
13 A
Current size C (cURus)
13 A
Current size D (cURus)
5 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
