FTA-C300-32DI-LD-S
FTA-C300-32DI-LD-S

FTA-C300-32DI-LD-S

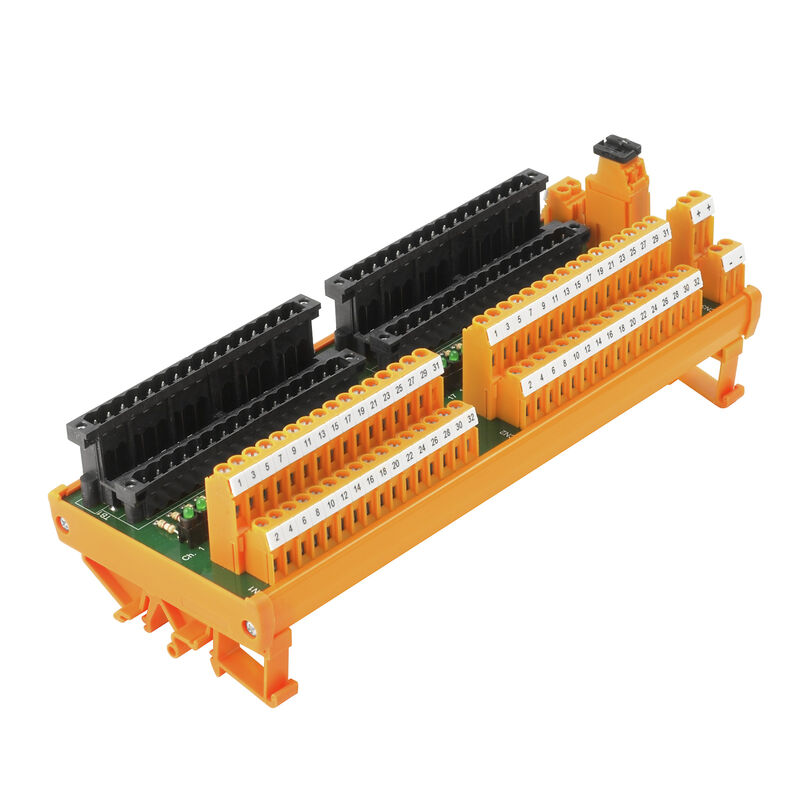

Interface, RS, 1-wire, Screw connection

Tuotteen tunnus 1222940000
Lataa tietosivu Product Downloads
Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Connection data Ratings data Insulation coordination (EN50178) Connection field Supply connection Classifications

Approvals

Agréments
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (UR)
E141197

General ordering data

Version
Interface, RS, 1-wire, Screw connection
Order No.
1222940000
Typ
FTA-C300-32DI-LD-S
GTIN (EAN)
4050118006520
Qty.
1 items

Dimensions and weights

Profundidad
65 mm
Depth (inches)
2,559 inch
Hauteur
87 mm
Height (inches)
3,425 inch
Largeur
216 mm
Width (inches)
8,504 inch
Net weight
407 g

Temperatures

Température de stockage
-40...60 °C
Üzemi hőmérséklet
-25...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2e4a427f-c282-4ebf-8ee2-8af7c9348f4e

Rated data UL

Corrente di dimensionamento IN
1 A
Temperatura d'esercizio UL, max.
25 °C
Temperatura d'esercizio UL, min.
0 °C
Rated voltage UN
24 V DC
Jmenovité napětí DC UN (napájení)
24 V
Rated current (supply)
0,63 A
Rated current fuse (supply)
0,63 A

General data

Светодиодный индикатор состояния на один канал
green
separacja na kanał
No
Voltage point of measurement
No
Current-measuring testpoint
No
Type of test point
No
接点
No
Fuse per channel
No
LED status of the supply voltage
yellow
Spänningsförsörjningssäkring
630 mA

Connection data

Connection (field side)
LP2N 5.08mm
Connection on control side
SLDV-THR 5.08
Connection supply
LP2N 5.08mm
Number of poles (control side)
64-pole
Wiring system
1-wire

Ratings data

Operating voltage
24 V DC ± 10%
Max. current per channel
1 A
Total operating current
5 A

Insulation coordination (EN50178)

According to
DIN EN 50178
Rated insulation voltage
<50 V AC
Surge voltage category
III
Pollution severity level
2
Pulse voltage test (1,2/50μs)
0,8 kV
Insulation test voltage AC
0,35 kV

Connection field

Anslutningstyp
Screw connection
Clamping range, max.
6 mm²
Clamping range, min.
0,13 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Max. wire cross-section, AWG
AWG 12
Sleeve with plastic collar, max.
2,5 mm²
Solid, max. H05(07) V-U
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Stripping length
6 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
最小电线截面， AWG
AWG 26

Supply connection

Type of connection
Screw connection
Clamping range, min.
0,13 mm²
Clamping range, max.
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
6 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
2,5 mm²
Ferrule with plastic collar, max.
0,5 mm²
Wire cross-section, min. AWG
AWG 12
Wire cross-section, max. AWG
AWG 26
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,6 Nm
Stripping length
6 mm

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
