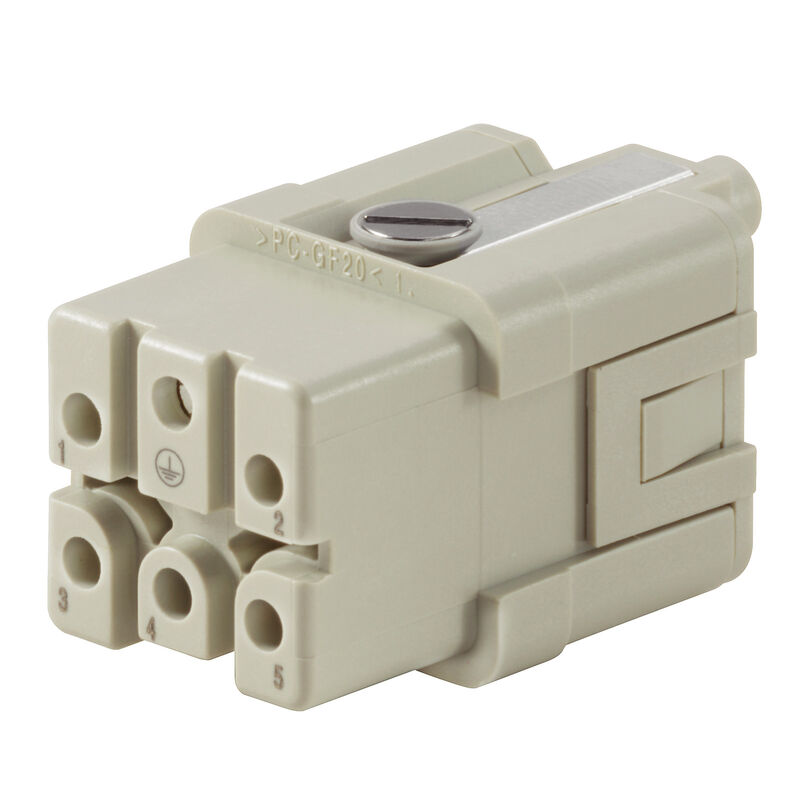

HDC HQ 5 FC
HDC HQ 5 FC

HDC HQ 5 FC

HDC insert, Female, 230 V, 20 A, Number of poles: 5, Crimp connection, Installation size: 1

Tuotteen tunnus 1912460000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 15 On lisävaruste 1 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Power contact Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC insert, Female, 230 V, 20 A, Number of poles: 5, Crimp connection, Installation size: 1
Order No.
1912460000
Type
HDC HQ 5 FC
GTIN (EAN)
4032248542055
Qty.
1 items

Dimensions and weights

Depth
21 mm
Depth (inches)
0,827 inch
Height
40,1 mm
Height (inches)
1,579 inch
Width
21 mm
Width (inches)
0,827 inch
Length
21 mm
Length (inches)
0,827 inch
Net weight
12,8 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

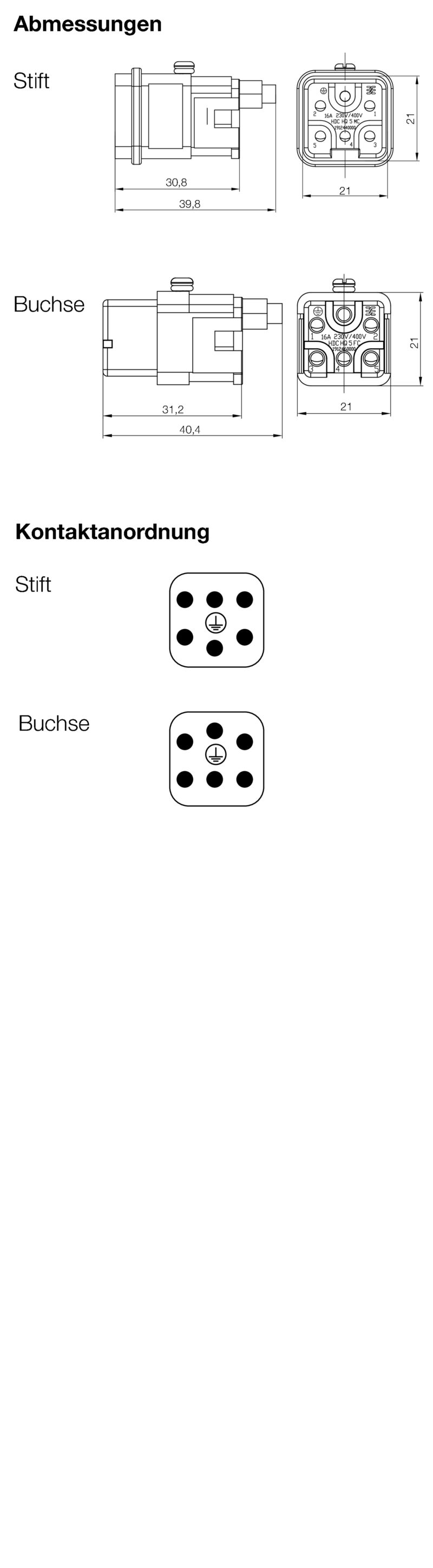

Dimensions

Height of socket
40,1 mm
Total length base
21 mm
Width
21 mm

General data

Basic material
Copper alloy
BG
1
Brennbarkeitsklasse nach UL 94
V-0
Colour
beige
Corrente di dimensionamento (DIN EN 61984)
20 A
Installation size
1
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Number of power contacts
5
Névleges lökőfeszültség (DIN EN 61984)
4 kV
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Počet pólů
5
Produkt o niskiej dymotwórczości wg DIN EN 45545-2
Yes
Rated current (cUR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    19 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    12 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A
Rated voltage conductor-conductor (III/3)
400 V
RTension nominale selon UL/CSA
600 V AC/DC
Series
HQ
Tensión nominal (DIN EN 61984)
230 V
Typ připojení
Crimp connection
Type
Female
Volume resistance
≤2 mΩ
정격 전류(UR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    18 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    12 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A

Connection data PE

Blade size, slotted (PE connection)
SD 0.6 x 3.5
Connection type PE
Screw connection
Fixing screw
M 3
Rated cross-section
2,5 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
0,55 Nm
Tightening torque, min. PE connection
0,5 Nm
Wire cross section, AWG (PE), max.
AWG 14
Wire cross section, AWG (PE), min.
AWG 20

Power contact

Rated current (DIN EN 61984), power contact
20 A

Version

Basic material
Copper alloy
BG
1
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
1
Stripping length, rated connection
7,5 mm
Type of connection
Crimp connection
Volume resistance
≤2 mΩ
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
