HDC KIT HE-P 10.110

HDC KIT HE-P 10.110

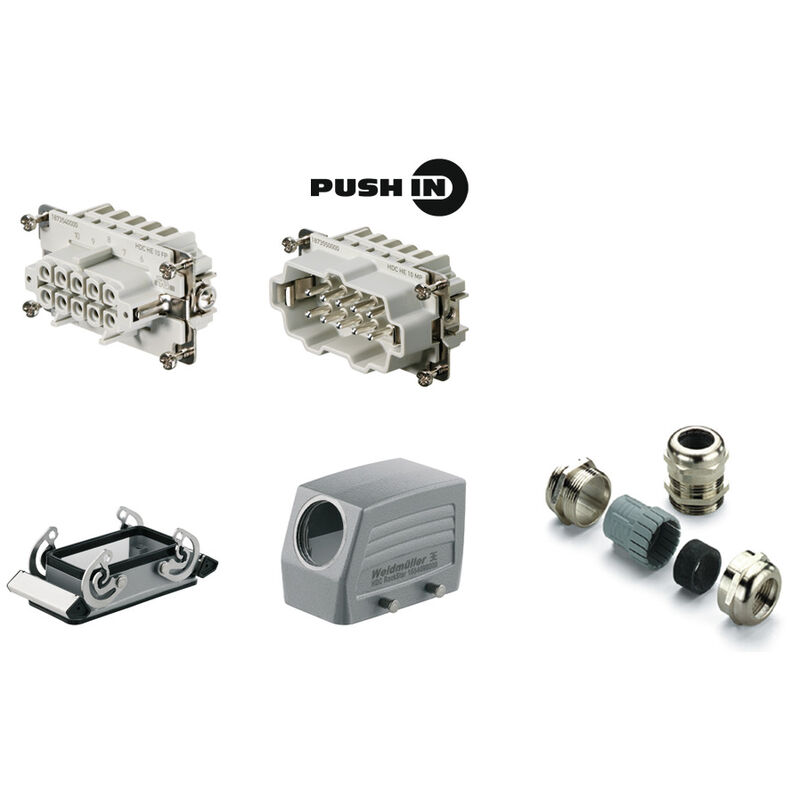

RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Installation size: 4, Poles: 10, PUSH IN, 500 V, 16 A, diecast aluminium, PG 16

Art.-Nr. 1027680000
Datenblatt herunterladen Engineering Support Product Downloads
Accessories 1 Individual parts 5 Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Version General data Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Installation size: 4, Poles: 10, PUSH IN, 500 V, 16 A, diecast aluminium, PG 16
Order No.
1027680000
Type
HDC KIT HE-P 10.110
GTIN (EAN)
4032248770694
Qty.
1 items

Dimensions and weights

Net weight
488 g

Temperatures

Limit temperature
-40 °C ... 100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
bfb1c983-6f18-4ba4-8907-38aad6aee076

General data

EMC 하우징
No
Grado di protezione
IP65
Material of locking element
Stainless steel, rust-proof
Materiale base della custodia
diecast aluminium
Serie
HE
Superficie
Powder coating

Version

BG
4
Colore (RAL)
RAL 7035
Guarnizione
NBR
Number of cable entry on top
0
Number of cable entry sideways
1
Size of cable entries
PG 16
Telepítési szerkezeti méret
4
Type of connection
PUSH IN
Version système de fermeture
Side-locking clamp on lower side

General data

Basic material
diecast aluminium
BG
4
Cable gland
PG 16
Installationsstorlek
4
Rated current (DIN EN 61984)
16 A
Rated voltage (DIN EN 61984)
500 V
Series
HE
Вид соединения защитного провода PE
Screw connection
Количество полюсов
10

Version

Basic material
diecast aluminium
BG
4
Installation size
4
Leiteranschlussquerschnitt, max.
4 mm²
Leiteranschlussquerschnitt, min.
0,5 mm²
Surface finish
Powder coating
Typ připojení
PUSH IN

Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
