IE-C6FP8LD0500M40M40-D
IE-C6FP8LD0500M40M40-D
Wiring
IE-C6FP8LD0500M40M40-D
Dimensioned drawing

IE-C6FP8LD0500M40M40-D

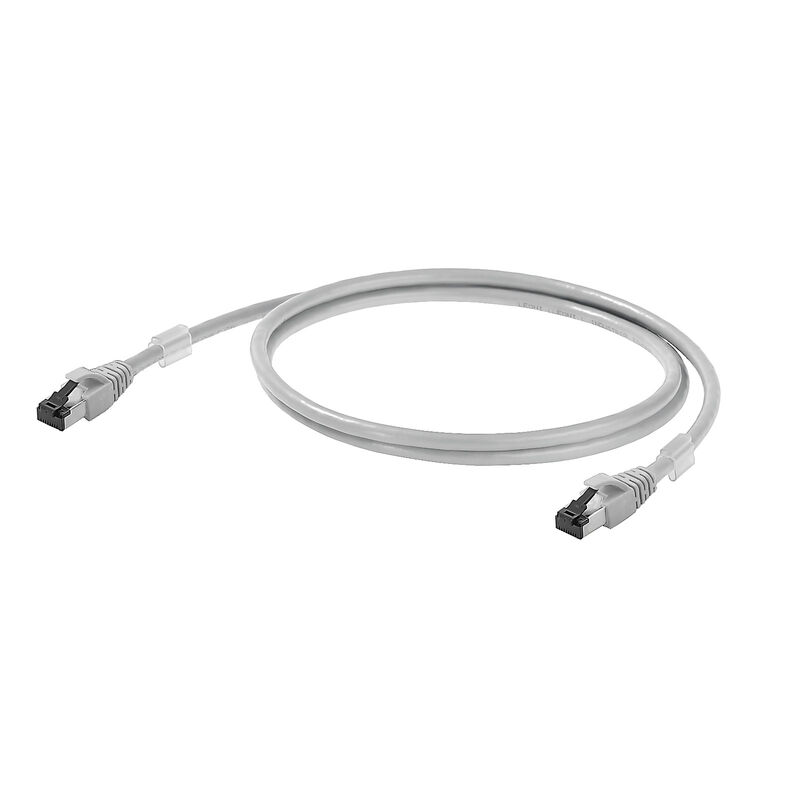

Cavo Patch, RJ45 IP20, RJ45 IP20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 50 m

Item No. 1165940500
Download data sheet Supporto ingegneristico Download dei prodotti
Tilbehør 2 Anvendte produkter 33
Approvals Dati generali per l’ordinazione Dimensioni e pesi Temperature Conformità ambientale del prodotto Electrical properties General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/c4bf74a6-04a5-4e4b-82e5-d75bdf1b56fe/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme
UL File Number Search
[Sito web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

Dati generali per l’ordinazione

Version
Cavo Patch, RJ45 IP20, RJ45 IP20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 50 m
Order No.
1165940500
Type
IE-C6FP8LD0500M40M40-D
GTIN (EAN)
4032248956340
Qty.
1 Pezzo

Dimensioni e pesi

Längd
50 m
Lunghezza (pollici)
1 968,504 inch
Peso netto
1 755 g

Temperature

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Installation temperature
0 °C...50 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
No SVHC superiori a 0,1 wt%

Electrical properties

Current-carrying capacity at 50 °C
1 A
PoE / PoE+
conforming to IEEE 802.3at

General standards

Application-specific communication cable facilities
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 27/7 - 4*2*0.1 mm²
Insulation
PE
Insulation cross-section
1,04 mm
Material sheath
LSZH
Number of wires
8
Overlap of shielding braid
60 %
Sheath diameter, max.
5,9 mm
Sheath diameter, min.
5,5 mm
Sheathing colour
grau
Shielding
S/FTP
Strands
7
Wire pair shielding
Feuille d'aluminium

Electrical properties of cable

Capacity at 1 kHz
46 nF/km
Category
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Coupling attenuation up to 1000 MHz
80 dB
Coupling resistance at 10 MHz / m
5 mΩ
Döntés késleltetése
2,5 ns/100m
Operating voltage
50 V DC
Resistance differential
5 %
Separating class according to EN 50174-2
d
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec
Transmission rate
10 Gbit/s
Характеристический импеданс
100 ± 15 Ω pour 1-100 Mhz
작동 전압 (UL 정격)
30 V AC / 42.4 V DC

Mechanical and material properties of cable

Colour
grey
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
4 x cable diameter
Resistance to spread of flame
v souladu s IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)

Plug

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded
Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
