IE-FM6Z2LO0003MST0ST0-X

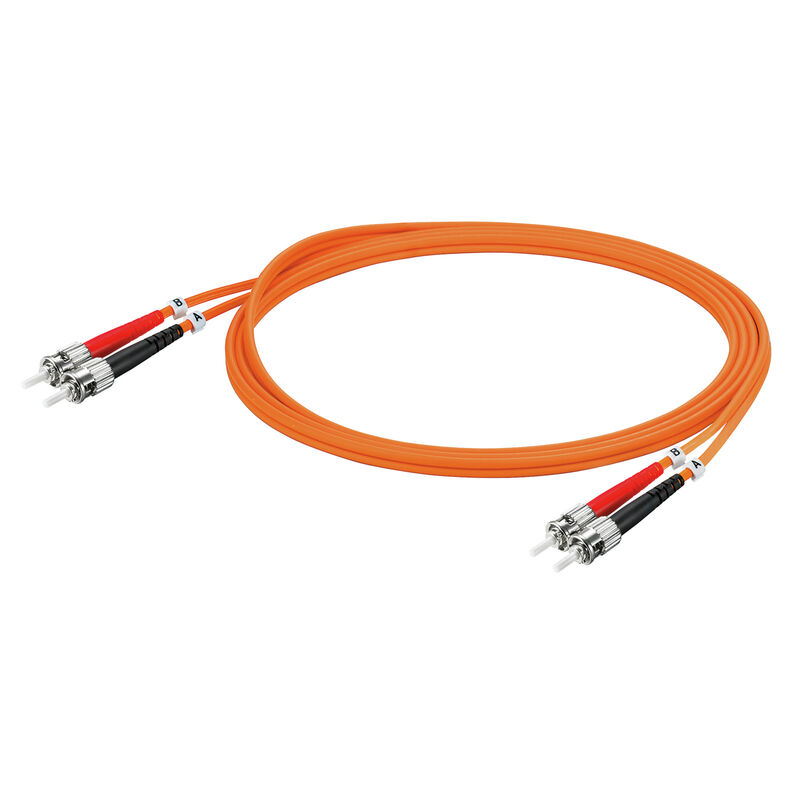

Patch cable, ST IP 20, ST IP 20, 62.5 µm, LSZH, 3 m

Item No. 1433980030
Descargar hoja de datos Produktdownloads
Tilbehør 2 Anvendte produkter 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Fibre-optic Montaje del cable Propriétés mécaniques et des matériaux du câble 플러그 Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Patch cable, ST IP 20, ST IP 20, 62.5 µm, LSZH, 3 m
Order No.
1433980030
Type
IE-FM6Z2LO0003MST0ST0-X
GTIN (EAN)
4050118242836
Qty.
1 Styk

Dimensions and weights

Length
3 m
Length (inches)
118,11 inch
Net weight
56,32 g

Temperatures

Operating temperature
-20 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable specific standards

Specification for checking the symmetrical communication cabling
IEC 61935-3
Specification for twisted-pair device connection cables
IEC 61156-6
DIN EN 50288-4-2

General standards

Connector standard
IEC 60874-10

Standards

Connector standard
IEC 60874-10

Fibre-optic

Attenuation
≤ 3,0 db/km bei 850 nm
≤0,8 dB/km bei 1300 nm
Bandwidth
≥ 200 MHz*km a 850 nm
≥ 600 MHz*km a 1300 nm
Fibre type
GOF
multimode
OM1

Montaje del cable

Cable layout
ZIPCORD
Core diameter
62,5 µm
Material sheath
LSZH
Primary coating
245 µm
Sheath diameter
2.8 * 5.7 mm
Sheathing colour
orange
Standard designations
I-V(ZN)H

Propriétés mécaniques et des matériaux du câble

Halogen
Non
Min. bending radius, once only
28 mm
Min. bending radius, repetitive
56 mm

플러그

Plug left
ST, IP20, male contact, straight, plug, Plastic, unshielded
Plug right
ST, IP20, styk męski, prosty, wtyk, Tworzywo sztuczne, nieekranowane

Plug, left

Plug left
ST, IP20, male contact, straight, plug, Plastic, unshielded

Plug, right

Plug right
ST, IP20, male contact, straight, plug, Plastic, unshielded

Classifications

ETIM 8.0
EC002607
ETIM 9.0
EC002607
ETIM 10.0
EC002607
ECLASS 14.0
27-06-10-03
ECLASS 15.0
27-06-10-03
