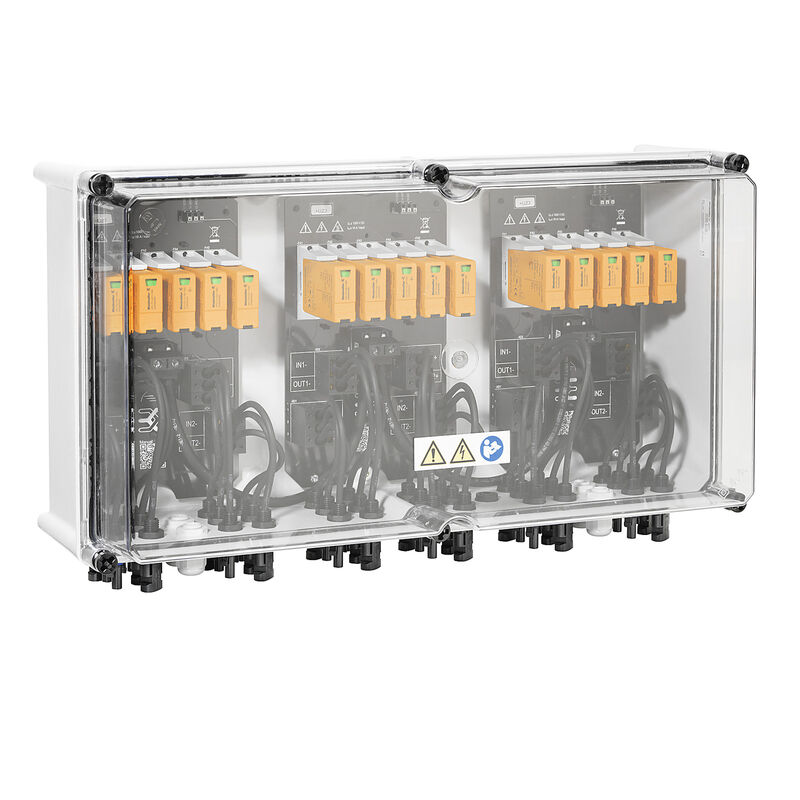

Photovoltaics, Combiner Box, PV Next, 1000 V, 6 MPP´s, 2 Inputs / 1 Output per MPP, Surge protection I / II, WM4C

Ürün No. 2737620000
Veri sayfasını indir Ürün İndirmleri Mühendislik desteği
Aksesuarlar 15 aksesuarıdır 3 Karşı parçalar 7 Yedek parçalar 2 İlgili ürünler 63
Homologaciones General ordering data Dimensiones y pesos Températures Environmental Product Compliance Included in delivery Guarantee Electrical characteristics Enclosure General data Inputs Outputs Surge protection DC side DC load break switch Indicación importante Besorolások Textes de description

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme

General ordering data

Version
Photovoltaics, Combiner Box, PV Next, 1000 V, 6 MPP´s, 2 Inputs / 1 Output per MPP, Surge protection I / II, WM4C
Order No.
2737620000
Type
PVN1M6I4SXFXV1O1TXPX10
GTIN (EAN)
4050118824896
Qty.
1 items

Dimensiones y pesos

Depth
175 mm
Depth (inches)
6,89 inch
Height
334 mm
Magasság (coll)
13,15 inch
Width
558 mm
Width (inches)
21,968 inch
Masa netto
6.947 g

Températures

Ambient temperature
-40 °C…50 °C
Wilgotność
5 – 90% (bez kondensacji)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Included in delivery

Included accessories
  • Article:
    Mounting foot
  • Quantity:
    4

Guarantee

Time interval
5 years

Electrical characteristics

Current per maximum power point, max.
30 A
Rated DC current per connection
  • Current per string, max.:
    30 A
Rated DC voltage
1.000 V
Rated short-term current resistance
  • Rated current:
    37,5 A

Enclosure

Connection type string
Plug WM4C
Enclosure attachment
Via mounting foots
Impact resistance
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262
Insulating material
Polyester glass-fibre reinforced, Polycarbonate
Protection class
II
Type of mounting
Wandmontage
4 Schrauben

General data

Installation location
Protected outdoor area (Land and Sea)
Protection degree
IP65
Standards
EN 61643-31

Inputs

Amount of maximum power points (MPP)
6
DC Input + & -
  • Wire connection:
    • Type of connection:
      WM4C plug-in connector
    • Compatible cable crossection:
      EN 50618:2015
    • Wire cross-section, min.:
      4 mm²
    • Wire cross-section, max.:
      6 mm²
  • Cable entry:
    • Number of cable entries:
      12
Functional earth connector
  • Cable entry:
    • Number of cable entries:
      1
    • Cable diameter, min.:
      5 mm
    • Cable diameter, max.:
      10 mm
    • Cable gland:
      M 16
  • Wire connection:
    • Type of connection:
      Screw connection
    • Flexible, max. H05(07) V-K:
      25 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      16 mm²
Fuse type
Neither fuse cartridge nor holder
Fuses
No
Max. number of DC inputs
per Maximum Power Point 2 inputs connected in parallel
Number of conduit inlets
12
Number of string inputs per MPP
≤ 2
Surge protection auxiliary contact
  • Cable entry:
    • Cable diameter, min.:
      5 mm
    • Cable diameter, max.:
      10 mm
    • Cable gland:
      M 16
  • Wire connection:
    • Type of connection:
      Tension clamp connection with actuator
    • Flexible, max. H05(07) V-K:
      1,5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1,5 mm²
Antal ingångar
12

Outputs

DC Output + & -
  • Wire connection:
    • Type of connection:
      WM4C plug-in connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      4 mm²
    • Wire cross-section, max.:
      6 mm²
Max. number of DC outputs
per Maximum Power Point 1 output

Surge protection DC side

Discharge current (8 / 20 µs), max.
40 kA
Discharge current In (8/20 µs)
20 kA
Lightning test current Iimp (10/350 µs)
6.25 kA
Maximum continuous operating voltage, DC UCPV mode (+ / -), (- / PE), (+ / PE)
1.100 V
Protection level Up (+/- , -/PE , +/PE)
≤ 3.8 kV
Protection level Up (+/-)
≤ 3.8 kV
Protection level Up (+/PE)
≤ 3.8 kV
Protection level Up (-/PE)
≤ 3.8 kV
PV system voltage (Ucpv), max.
1.100 V
Requirements class
Type I/II
Short-circuit curent ISCPV
11.000 A
Standards
EN 61643-31
Standby power consumption PC
<0.2 W
Total discharge current (Itotal) (10 / 350 µs)
12,5 kA
Total discharge current (Itotal) (8 / 20 µs)
50 kA

DC load break switch

Switch disconnector execution
no switch

Indicación importante

Product information
El número SCIP se asignó debido a un contenido de plomo de más del 0,1 % del peso neto.

Instrucciones de uso seguro según ECHA:
la identificación de la sustancia nociva es suficiente para permitir un uso seguro del artículo durante todo su ciclo de vida, incluida la fase de vida útil, desmontaje y reciclado

Besorolások

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Textes de description

Texte descriptif long

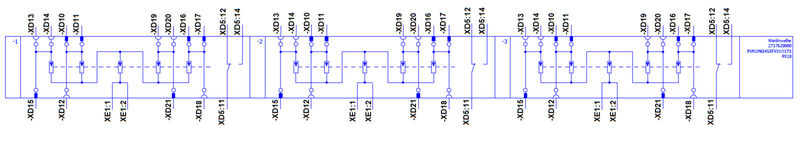

Combiner box for inverters with 6 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to EN 51543-32.

MPP1:
2 inputs, connection via WM4 C connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063
1 output, connection via WM4 C connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

MPP2 to 6:
identical to MPP1

Max. string voltage Uoc: 1000V
1 class/type I + II combined arrester with signal contact
Connection of the signal contact via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm²
Connection of the functional earth via cable glands (8-12mmØ) Conductor cross-section: 16-25mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 334x558x175 mm

Approval according to low voltage switchgear and controlgear IEC 61439-1:2011 and EN 61439-2:2011
