SAIBGS-P-4T-8/10-M12
SAIBGS-P-4T-8/10-M12
Pole scheme
Socket

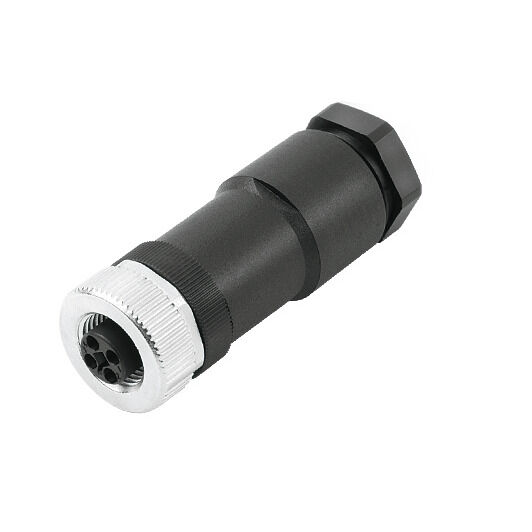

SAIBGS-P-4T-8/10-M12

Field attachable connector, M12

ID výrobku 1391980000
Stáhnout datový list Engineering Support Product Downloads
Samankaltaiset tuotteet 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors General Info Standards Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E307231

General ordering data

Version
Field attachable connector, M12
Nr zam.
1391980000
Type
SAIBGS-P-4T-8/10-M12
GTIN (EAN)
4050118192414
Qty.
1 items

Dimensions and weights

Net weight
26,98 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical data customisable plug-in connectors

Cable diameter, max.
10 mm
Cable diameter, min.
8 mm
Cable gland
PG 11
Coding
T-coded
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,14 mm²
Contact material
CuZn
Contact surface
Gold-plated
Csatlakozási keresztmetszet, min.
0,14 mm²
Gender of contact
Female
Housing main material
PA
Insulation resistance
108 Ω
Jmenovitý proud
12 A
Material del anillo roscado
Diecast zinc
Nominal current
12 A
Nominal voltage
60 V
Number of poles
4
Plage de températures du coffret
-40 … +85 ° C
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
when screwed in
Section de raccordement, max.
2,5 mm²
Shield connection
No
Type of connection
Screw connection

General Info

Number of poles
4
Connection 1
M12
Anslutning 2
Screw
Housing main material
PA
Connection thread
M12
Contact material
CuZn
Contact surface
Gold-plated
Protection degree
IP67
when screwed in
Plugging cycles
≥ 100

Standards

Connettori a norma
IEC 61076-2-111

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
