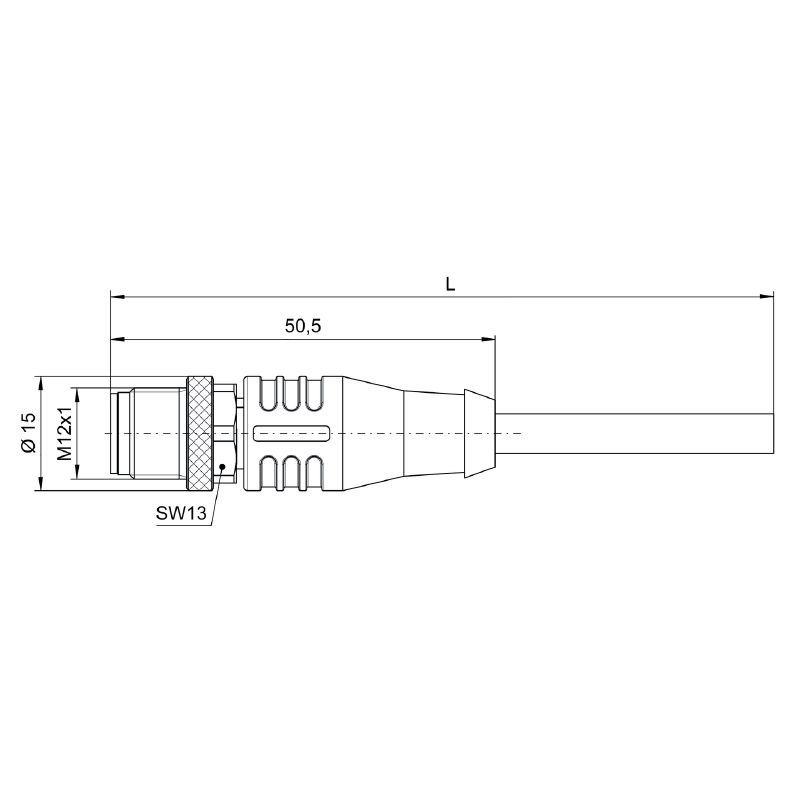

Dimensioned drawing
SAIL-M12G-12S2.7U
Pole scheme
Male
SAIL-M12G-12S2.7U
Wiring diagram
SAIL-M12G-12S2.7U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12G-12S2.7U

Sensor/actuator line, M12, Number of poles : 12, 2.7 m, pin, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Item No. 1484820270
Download data sheet
Related products 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, M12, Number of poles : 12, 2.7 m, pin, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
1484820270
Type
SAIL-M12G-12S2.7U
GTIN (EAN)
4050118732955
Qty.
1 items

Dimensions and weights

Net weight
115 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration
5 m/s²
Antal ledare
12
Colour coding
brown
blue
grey / pink
red / blue
white
green
pink
yellow
black
grey
red
violet
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Cykle gięcia
1 mill.
Drain wire integrated
No
Hybrid cable
No
Hydrolysis and microbe resistant
Yes
Irradiation crosslinked
No
Konfigurerbar kabellängd
No
Mantelmaterial
PUR
Number of poles
12
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
6 mm ± 0.2 mm
promień zgięcia min., ruchomy
12 x cable diameter
promień zgięcia, min., ułożony na stałe
5 x cable diameter
Przydatność do łańcucha ciągowego
Yes
Resistance to oils
Yes
Resistant to welding beads
Yes
Schermato
Yes
Sheathing colour
black
Temperature range, moving
-30...80 °C
Temperature range, stationary
-40...80 °C
Érkeresztmetszet
0,14 mm²
Скорость
100 m/min
케이블 길이
2,7 m
할로겐
No

General technical data

IP67
IP69
when screwed in
AF size
13 mm
Coding
A-coded
Connection thread
M12
Contact material
Copper alloy
Contact surface
Gold-plated
Insulation resistance
108 Ω
LED
No
Nominal current
1,5 A
Nominal voltage
30 V
Plugging cycles
≥ 100
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 1.0 Nm
Version
pin, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
30 V

Plug, left

Plug left
M12, A-coded, Number of poles: 12, male contact, straight, plug, shielded

Plug, right

Plug right
Free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
