SAIL-M12GM12G-5-2.5TYV

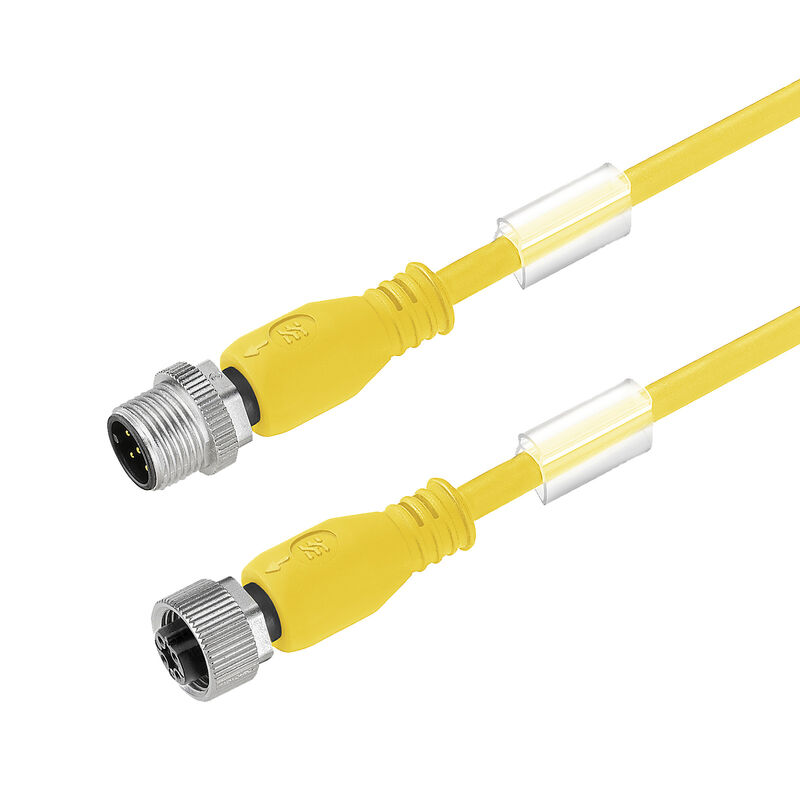

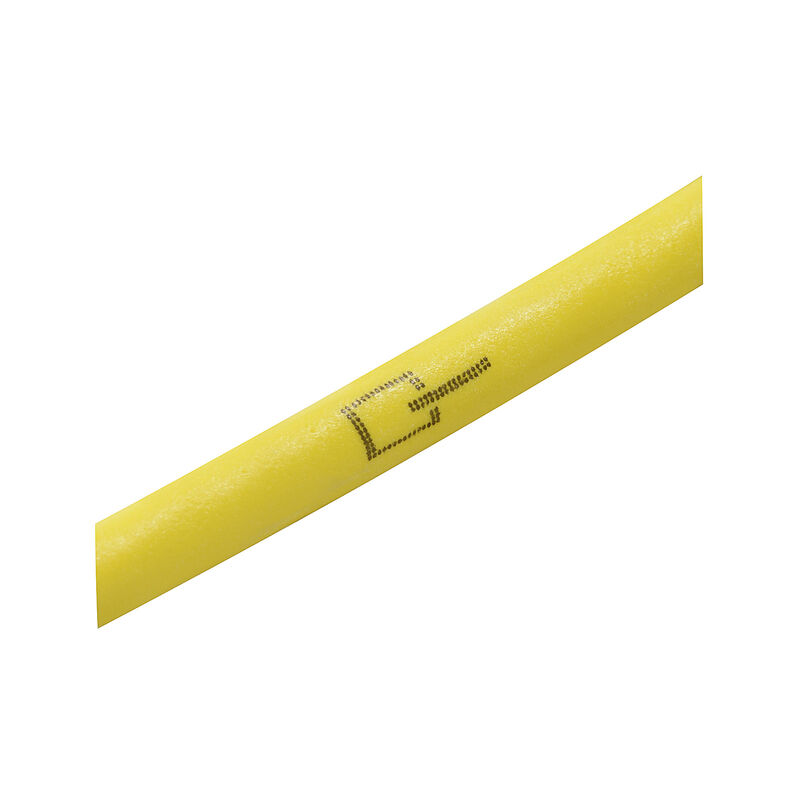

Product image
SAIL-M12GM12G-5-2.5TYV
Detailed drawing
SAIL-M12GM12G-5-2.5TYV
Detailed drawing
Male, straight
SAIL-M12GM12G-5-2.5TYV
Detailed drawing
Straight socket
SAIL-M12GM12G-5-2.5TYV
Pole scheme
M12, pin, A-coded
SAIL-M12GM12G-5-2.5TYV
Pole scheme
Socket
SAIL-M12GM12G-5-2.5TYV
Wiring diagram
SAIL-M12GM12G-5-2.5TYV
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12GM12G-5-2.5TYV

Концентратор сигналов, контрольная линия, M12/M12, Количество контактов : 5, 2.5 m, Вилка, прямая - Гнездо, прямое, Экранированный: Нет, LED: Нет, Материал оболочки: Полиуретан, Галогены: Нет

Produkt ID 2812800250
Download datablad Produktdownloads
Anvendte produkter 9
Dopuszczenia Основные данные для заказа Dimensions and weights Zgodność produktu z wymogami środowiska naturalnego Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Classifications

Dopuszczenia

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

Основные данные для заказа

Version
Концентратор сигналов, контрольная линия, M12/M12, Количество контактов : 5, 2.5 m, Вилка, прямая - Гнездо, прямое, Экранированный: Нет, LED: Нет, Материал оболочки: Полиуретан, Галогены: Нет
Order No.
2812800250
Type
SAIL-M12GM12G-5-2.5TYV
GTIN (EAN)
4064675428619
Qty.
1 Styk

Dimensions and weights

Net weight
140,8 g

Zgodność produktu z wymogami środowiska naturalnego

RoHS Compliance Status
Соответствует с исключением
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
bd63baef-8092-4596-90c7-5b4daa22710b

Technical specifications for cable

Cable length
2,5 m
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10995 (80 °C / 300 V)
Halogen
No
Insulation
TPE
Irradiation crosslinked
No
Number of poles
5
Outer cladding in accordance with UL AWM style
20233 (80 °C / 300 V)
Resistance to oils
gemäß IEC 60811:404
Resistant to welding beads
Yes
Sheath material
PUR
Sheathing colour
yellow
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-40...105 °C
Temperature range, stationary
-30...105 °C
Torsion resistance
360 °/m
Welding spark resistance
예

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
LED
No
Nominal current
4 A
Nominal voltage
60 V
Protection degree
IP65
IP66
IP67
IP68
přišroubované
Temperature range of housing
-25…+85 °C
Tightening torque
M12 : 0,8 - 1,2 Nm
Version
maschio, diritto - femmina, diritto

Electrical properties

Nominal voltage
60 V

General standards

Certificate no. (cULus)
E307231

Plug, left

Plug left
M12, A-coded, IP68, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP68, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
