SAIL-VSBD-1.5U
SAIL-VSBD-1.5U
Dimensioned drawing
SAIL-VSBD-1.5U
Pole scheme
SAIL-VSBD-1.5U
Wiring diagram

SAIL-VSBD-1.5U

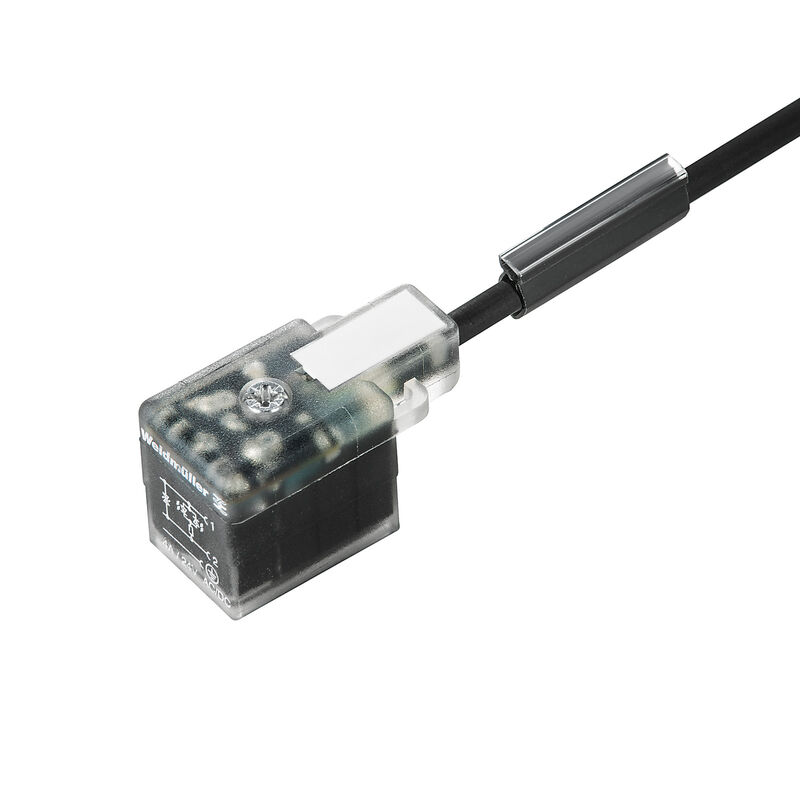

Valve cable (assembled), One end without connector - valve plug, DIN design B (10 mm), Cable length: 1.5 m, PUR, black

Produkt ID 9456070150
Download datablad Product Downloads
Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Valve cable (assembled), One end without connector - valve plug, DIN design B (10 mm), Cable length: 1.5 m, PUR, black
Order No.
9456070150
Tipo
SAIL-VSBD-1.5U
GTIN (EAN)
4008190300920
Qty.
1 Styk

Dimensions and weights

Net weight
78 g

Environmental Product Compliance

Stato conformità RoHS
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
4060c755-8d0b-4d43-bdb3-4ffabe9d7497

Technical specifications for cable

Acceleration
5 m/s²
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
1,5 m
Core cross-section
0,5 mm²
Cykly ohybu
2 Mio
Diámetro exterior
4.6 mm ± 0.2 mm
Farbcodierung
brown
blue
Green/yellow
Halogen
No
Insulation
PP
Materiál pláště
PUR
Número de polos
3
Odolnost vůči jiskrám ze sváření
No
Resistant to welding beads
No
Rychlost
200 m/s
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-50...80 °C
Torsionsfestigkeit
0 °/m

General technical data

Anslutningsvridmoment
Mounting screw M3: 0.4 Nm
M12: 0.8 - 1.2 Nm
Codifica
DIN design B (10 mm)
Filettatura del collegamento
Miscellaneous
LED
Yes
Nominal current
4 A
Okablowanie ochronne
Zener diode
Protection degree
IP67
when screwed in
Superficie dei contatti
tinned
Диапазон температур корпуса
-25…+80 °C
공칭 전압
24 V
버전
One end without connector - valve plug
접점 재질
CuZn

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-12
ECLASS 15.0
27-06-03-12
