SAISGS-P-5K-8/13-M12
SAISGS-P-5K-8/13-M12
Pole scheme
Plug
SAISGS-P-5K-8/13-M12

SAISGS-P-5K-8/13-M12

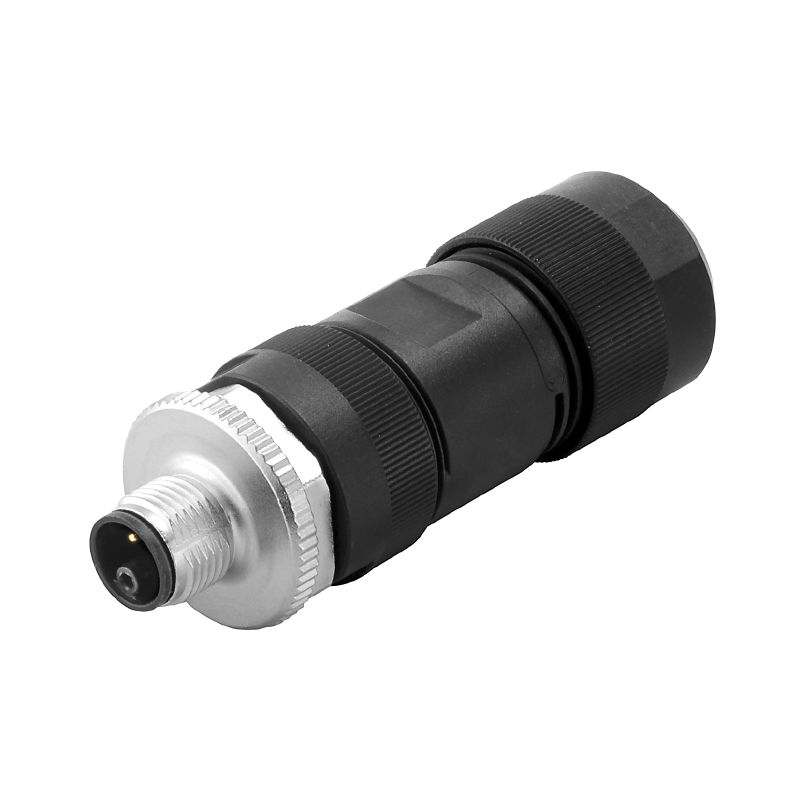

Field attachable connector, M12

Tuotteen tunnus 2703490000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dane techniczne adaptowalnych złączy wtykowych General Info Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Field attachable connector, M12
Order No.
2703490000
Type
SAISGS-P-5K-8/13-M12
GTIN (EAN)
4050118773064
Qty.
1 items

Dimensions and weights

Net weight
42,38 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Dane techniczne adaptowalnych złączy wtykowych

Cable diameter, max.
13 mm
Cable diameter, min.
8 mm
Coding
K-coded
Connection cross-section, max.
2,5 mm²
Contact material
CuZn
Contact surface
Au (Gold)
Gender of contact
Male
Housing main material
PA
Nominal current
12 A
Nominal voltage
630 V
Number of poles
5
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Shield connection
No
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Type of connection
Screw connection

General Info

Number of poles
5
Connection 1
M12
Connection 2
Screw
Housing main material
PA
Connection thread
M12
Contact material
CuZn
Contact surface
Au (Gold)
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1,5 mm²
Protection degree
IP67
Plugging cycles
≥ 100

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
