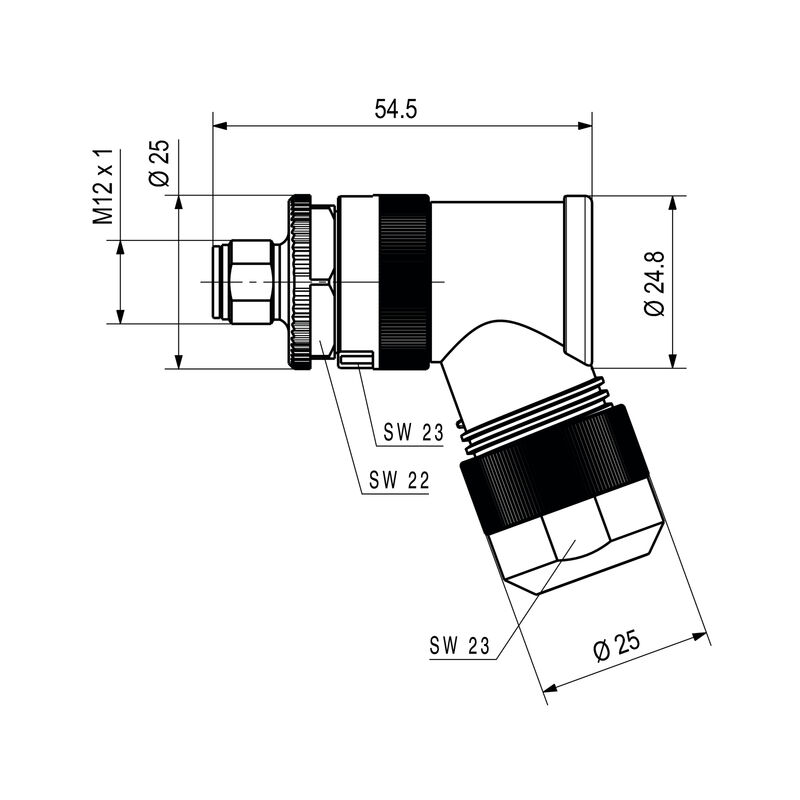

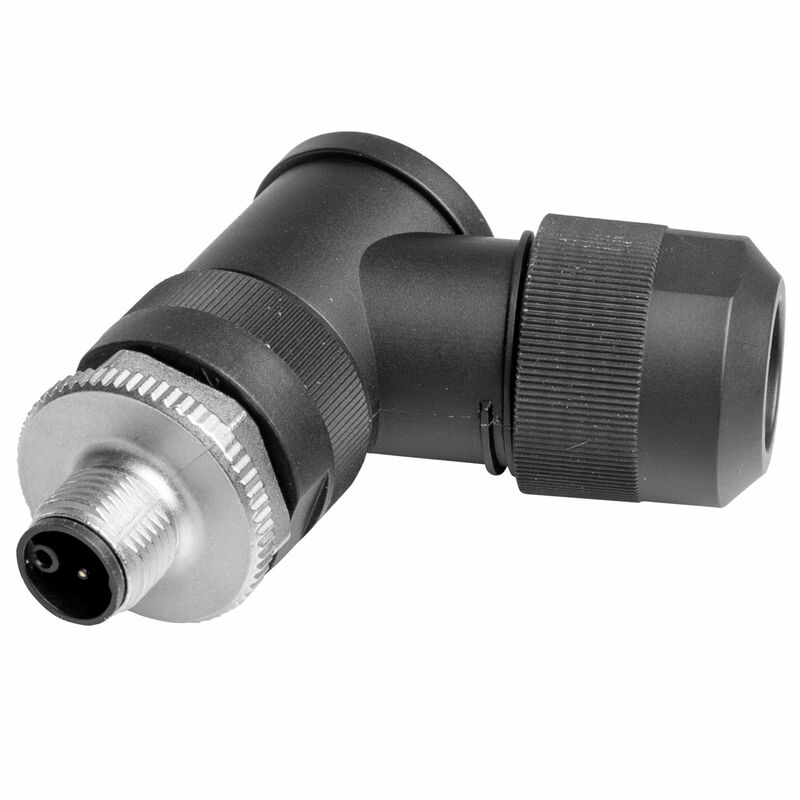

SAISWS-P-5K-8/13-M12
SAISWS-P-5K-8/13-M12
Pole scheme
Plug
SAISWS-P-5K-8/13-M12

SAISWS-P-5K-8/13-M12

Connecteur attachable, M12

Tuotteen tunnus 2812430000
Lataa tietosivu Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 13
Approvals Informations générales de commande Mått och vikter Conformidad medioambiental del producto Technical data customisable plug-in connectors Obecné informace Classificazioni

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (cURus)
E307231

Informations générales de commande

Version
Connecteur attachable, M12
Order No.
2812430000
Type
SAISWS-P-5K-8/13-M12
GTIN (EAN)
4064675295242
Qty.
1 items

Mått och vikter

Nettovikt
45 g

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme
REACH SVHC
No SVHC above 0.1 wt%

Technical data customisable plug-in connectors

Cable diameter, max.
13 mm
Cable diameter, min.
8 mm
Coding
K-coded
Connection cross-section, max.
2,5 mm²
Contact material
CuZn
Contact surface
Au (Gold)
Gender of contact
Male
Housing main material
PA
Nominal current
12 A
Nominal voltage
630 V
Number of poles
5
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Shield connection
No
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Type of connection
Šroubové připojení

Obecné informace

Počet pólů
5
Connection 1
M12
Connection 2
Vite
Housing main material
PA
Connection thread
M12
Contact material
CuZn
Contact surface
Au (Gold)
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1,5 mm²
Protection degree
IP67
Plugging cycles
≥ 100

Classificazioni

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
