UR20-8AI-I-16-DIAG-HD
UR20-8AI-I-16-DIAG-HD

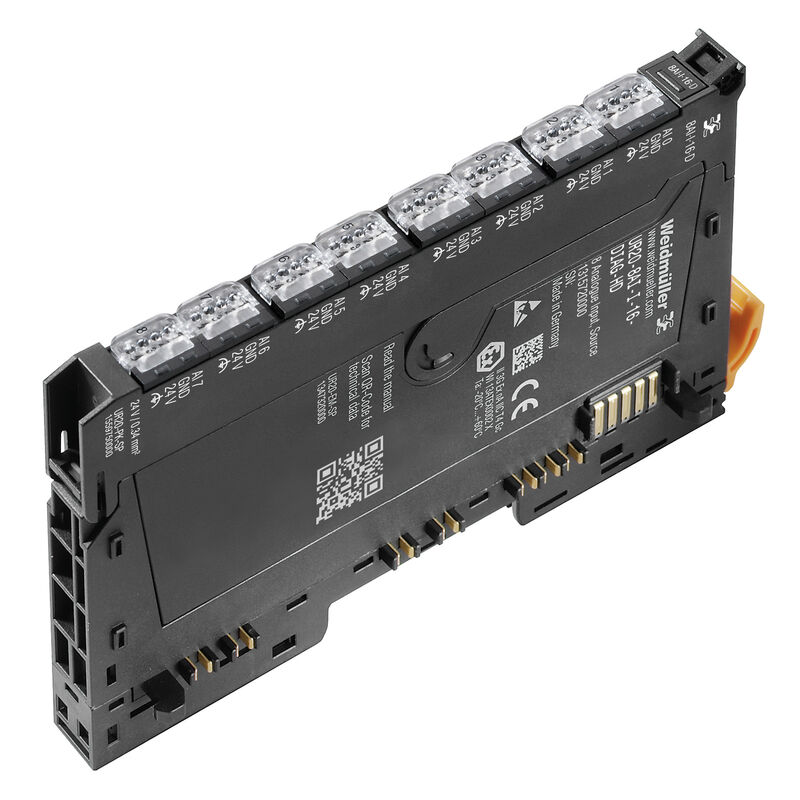

Product image
UR20-8AI-I-16-DIAG-HD

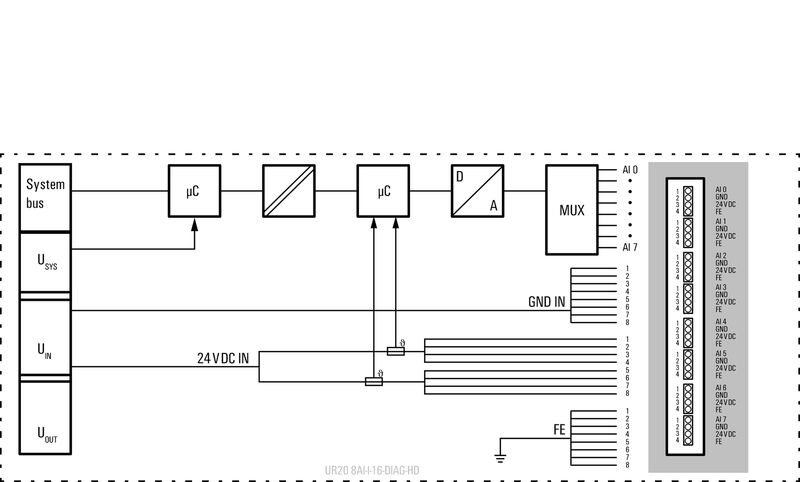

Block diagram
UR20-8AI-I-16-DIAG-HD

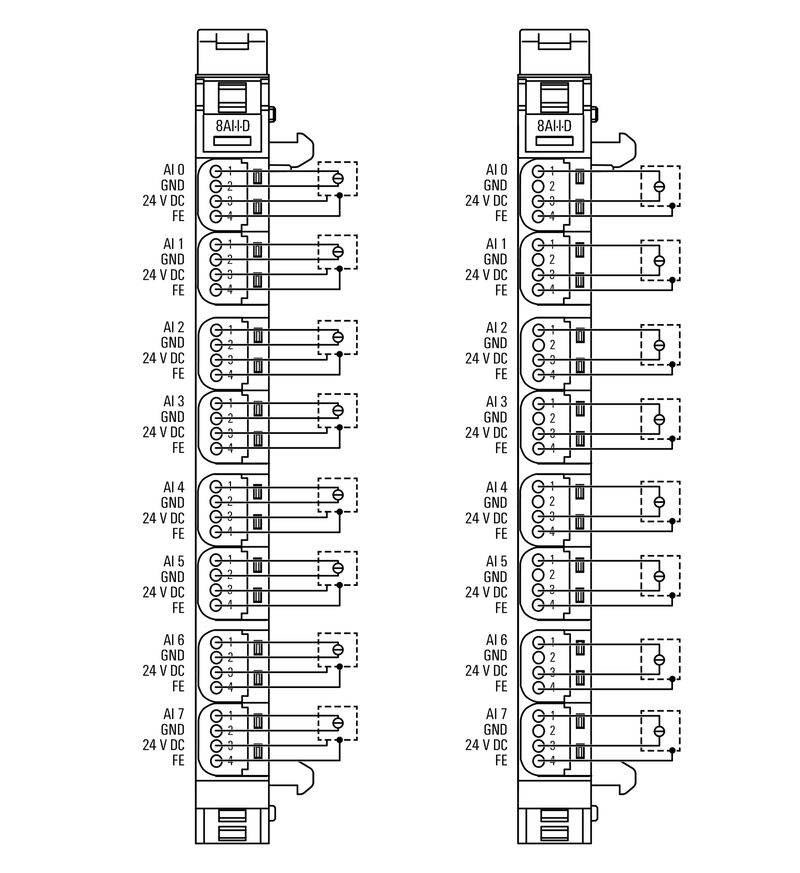

Connection diagram
UR20-8AI-I-16-DIAG-HD
Explanation of abbreviations

UR20-8AI-I-16-DIAG-HD

Remote I/O module, IP20, Analog signals, Input, 8-channel

Tuotteen tunnus 1315720000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Ohjelmistotuki Tuotelataukset
Lisävarusteet 16 Varaosat 2 Yksittäiset osat 2 Samankaltaiset tuotteet 13
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance ingressi analogici Connection data General data Power supply System data Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d2e83968-d07b-4c8a-82b2-25cf0c69fee7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/dde5b188-d0b1-4486-8f22-54b343043814/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/343066b4-2123-4788-b278-3ff01ec50f19/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N.º de certificado (cULus)
E141197
Numéro de certificat (cULusEX)
E223527

General ordering data

Version
Remote I/O module, IP20, Analog signals, Input, 8-channel
Best.-Nr.
1315720000
Art
UR20-8AI-I-16-DIAG-HD
GTIN (EAN)
4050118118827
VPE
1 items

Dimensions and weights

Hloubka
76 mm
Depth (inches)
2,992 inch
Höhe
120 mm
Height (inches)
4,724 inch
Breite
11,5 mm
Width (inches)
0,453 inch
Befestigungsmaß Höhe
128 mm
Net weight
74 g

Temperatures

Lagertemperatur
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS alóli kivétel (ha van/ismert ilyen)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    7,621 kg CO2 eq.

ingressi analogici

Accuracy
0.1% FSR
Conversion time
1 ms
Individual channel diagnosis
Yes
Input value
Current I (0…20 mA, 4…20 mA)
Internal resistance I
50 Ω
Module diagnosis
Yes
Number analogue inputs
8
Resolution
16 Bit
Reverse polarity protection
Yes
Sensor connection
2-wire
3-wire
3-wire + FE
Sensor supply
Yes
Short-circuit-proof
Yes

Connection data

Wire connection cross section, finely stranded, max.
0,35 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 22
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
0,35 mm²
Wire cross-section, solid, max. (AWG)
AWG 22
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

General data

Air humidity (operation)
От 10 до 95 %, без образования конденсата по стандарту DIN EN 61131-2
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Power supply

Current consumption from IIN (the respective power segment)
20 mA + load
Current consumption from Isys, typ.
8 mA
Reverse polarity protection
Yes
Supply voltage
24 V DC +20 %/ -15 %
via the system bus

System data

Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Analogue input module
Process data
16 Byte
Transmission speed of system bus, max.
48 MBit/s

Important note

Product information

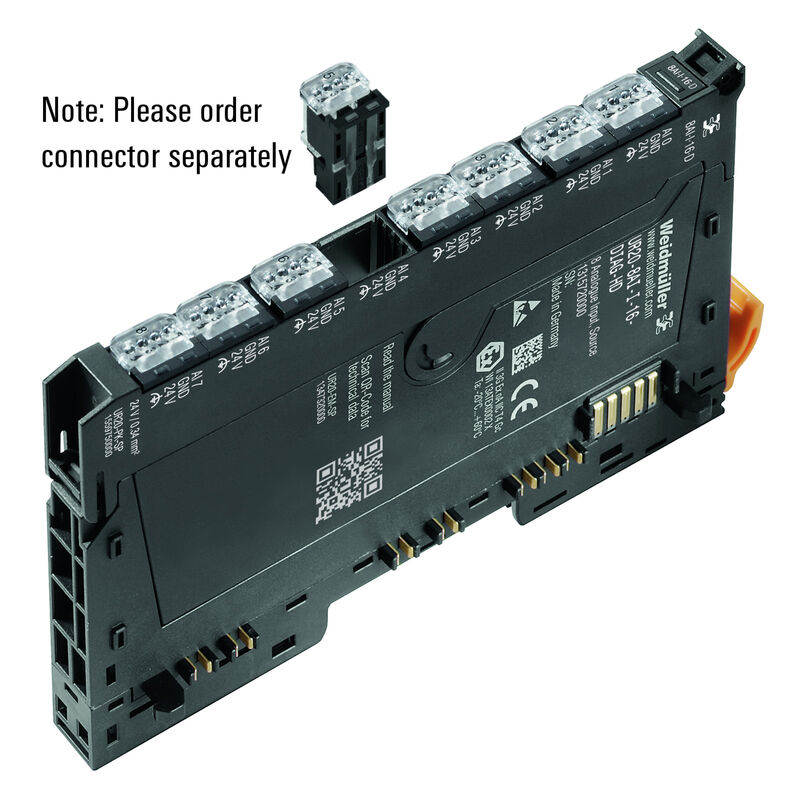

Note: Please order connector (1469340000) separately

Classifications

ETIM 8.0
EC001596
ETIM 9.0
EC001596
ETIM 10.0
EC001596
ECLASS 14.0
27-24-26-01
ECLASS 15.0
27-24-26-01
