VPU PV I+II 0 1500

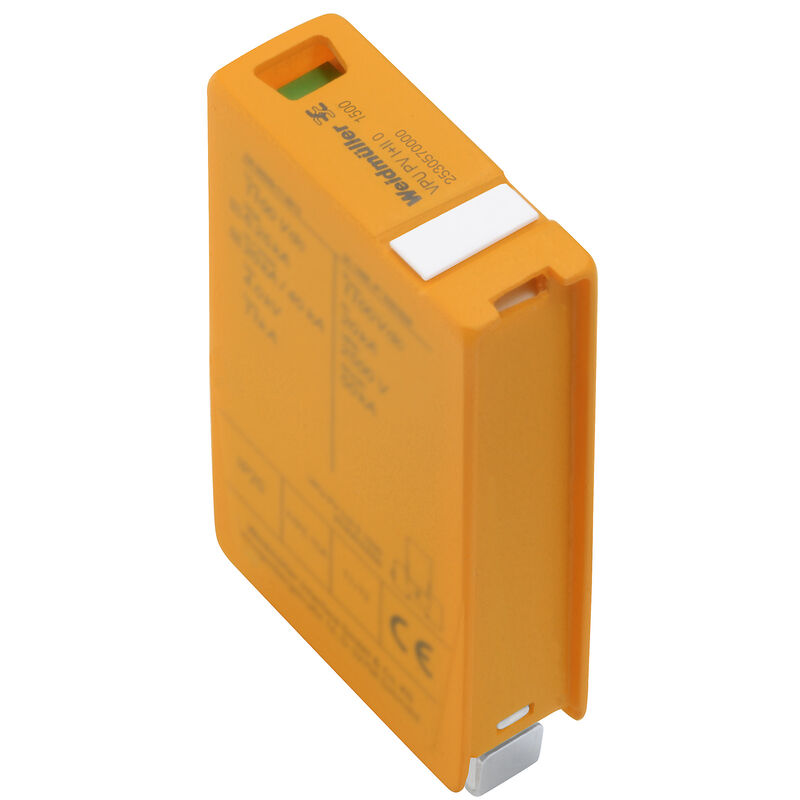

Product image
Similar to illustration
VPU PV I+II 0 1500
Electric symbol
Schematic circuit diagram

VPU PV I+II 0 1500

Surge voltage arrester, Low voltage, Accessories, Spare arrester

Product ID 2530570000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 3 Verwante producten 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Insulation coordination acc. to EN 50178 Photovoltaic technical data Rated data IEC / EN Connection data Electrical data General data Guarantee Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E354261

General ordering data

Version
Surge voltage arrester, Low voltage, Accessories, Spare arrester
Order No.
2530570000
Type
VPU PV I+II 0 1500
GTIN (EAN)
4050118540482
Qty.
9 items

Dimensions and weights

Depth
73,5 mm
Depth (inches)
2,894 inch
Height
45 mm
Height (inches)
1,772 inch
Width
18 mm
Width (inches)
0,709 inch
Net weight
10,667 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Ambient temperature (operational), max.
85 °C
Rated Voltage UN
750 V
SCCR
65 kA
In
20 kA
Categoría
SPD TYPE 1CA
Température ambiante (fonctionnement), min.
-40 °C
Сертификат № (cURus)
E354261
VPR ( DC+/DC-)
4.000 V
Voltage type
DC

General data

Colour
orange
Design
Installation housing; 1TE
Operating altitude
<4,000 m, see operating instructions
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20
UL 94 flammability rating
V-0
Version
Spare arrester

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Photovoltaic technical data

Corriente de fuga In (8/20 µs)
20 kA
Corriente de prueba Iimp (10/350 µs)
5 kA
Hauteur de fonctionnement dans le système PV à la terre
≤ 2000 m
Protection level Up (+/- , -/PE , +/PE)
≤ 5,0 kV
PV 시스템 전압, 최대 Ucpv
1.500 V
Requirements class
Type I/II
Standards
EN 61643-31
EN 50539-11
UL 1449
Total discharge current Itotal ( 8/20µs)
40 kA
Zkratový proud ISCPV
11.000 A
Összes kisülési áram Itotal (10/350µs)
10 kA

Rated data IEC / EN

Energy coordination (≤10 m)
Type I
Type II
Type III
Fuse protection
No
Integrated back-up fuse
No
Lightning test current Iimp (10/350 µs)
5 kA
Number of poles
1
Prąd upływu przy Un
30 µA
Response time / fallback time
≤ 25 ns
SPD type
T1
T2
Standards
EN 61643-31
EN 50539-11
UL 1449
Voltage type
DC
Сигнальный контакт
Nein

Connection data

Stripping length
18 mm
Type of connection
pluggable
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, max.
35 mm²

Electrical data

Voltage type
DC

General data

Number of poles
1
Protection degree
IP20
Colour
orange

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC001457
ETIM 9.0
EC001457
ETIM 10.0
EC001457
ECLASS 14.0
27-17-14-03
ECLASS 15.0
27-17-14-03
