WDK 10 DU-PE

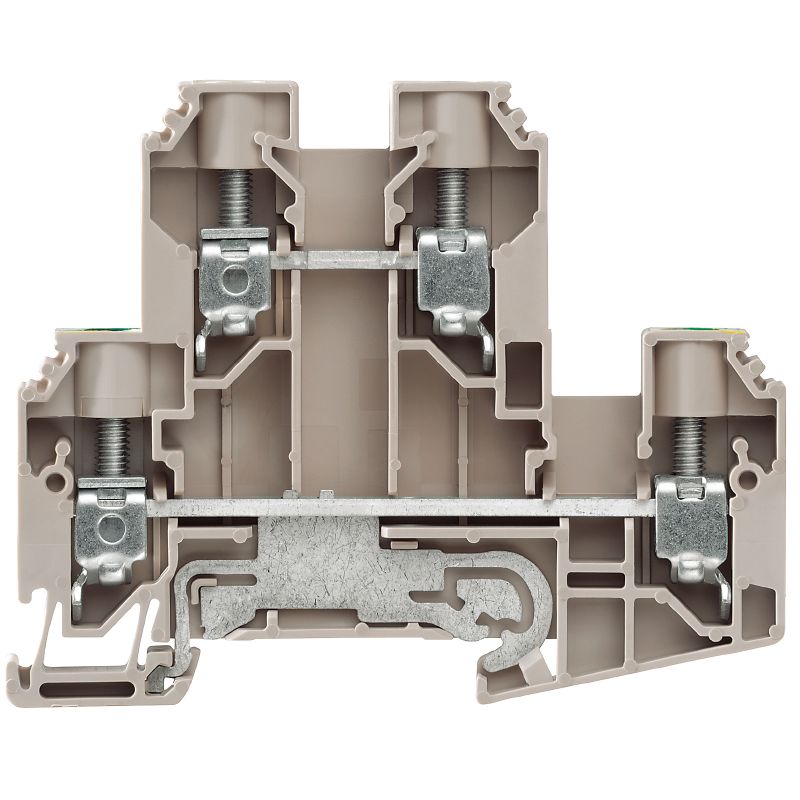

Product image
WDK 10 DU-PE

WDK 10 DU-PE

Multi-tier modular terminal, Screw connection, dark beige, 10 mm², 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0

Ürün No. 1415480000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 13 İlgili ürünler 1056
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Multi-tier modular terminal, Screw connection, dark beige, 10 mm², 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0
Order No.
1415480000
Typ
WDK 10 DU-PE
GTIN (EAN)
4050118216417
Qty.
50 adet

Dimensions and weights

Depth
69 mm
Depth (inches)
2,717 inch
Depth including DIN rail
69,5 mm
Height
85 mm
Height (inches)
3,346 inch
Width
9,9 mm
Width (inches)
0,39 inch
Net weight
46,242 g

Temperatures

Skladovací teplota
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.385 kg CO2 eq.

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Screw connection
With PE connection
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
2
Number of levels
2
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No

Additional technical data

Explosion-tested version
No
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Anschlussart, weiterer Anschluss
Screw connection

Conductors for clamping (rated connection)

Clamping range, max.
16 mm²
Connection direction
on side
Dimension de la lame
1.0 x 5.5 mm
Keresztmetszet csatlakoztatott vezetékhez, finomsodratú, érvéghüvelyekkel és műanyag gallérokkal DIN 46228/4, névleges csatlakozás, min.
1,5 mm²
Lehrdorn nach 60 947-1
B6
Longitud de desaislado
12 mm
Maks. przekrój przyłącza, cienki przewód wielodrutowy, min.
1,5 mm²
Number of connections
4
Par de apriete, min.
1,2 Nm
Plage de serrage, min.
1,5 mm²
Przekrój przyłącza przewodów, przewód jednodrutowy, min.
1,5 mm²
Sezione di collegamento cavo, flessibile con terminali DIN 46228/1, max.
16 mm²
Sezione di collegamento cavo, flessibile con terminali DIN 46228/1, min.
1,5 mm²
Sezione di collegamento cavo, flessibile, max.
16 mm²
Sezione di collegamento cavo, flessibile, min.
1,5 mm²
Tightening torque, max.
1,9 Nm
Tipo de conexión
Screw connection
Tipo de conexión 2
Screw connection
Vezeték csatlakozási keresztmetszet AWG, min.
AWG 16
Vezeték csatlakozási keresztmetszet, finomsodratú, érvéghüvelyekkel és műanyag gallérokkal DIN 46228/4, névleges csatlakozás, max.
16 mm²
Vis de serrage
M 4
Wire connection cross section AWG, max.
AWG 6
ツインワイヤエンドフェルール、最大
6 mm²
接続断面、撚線、最大
16 mm²
接続断面、撚線、最小
1,5 mm²
와이어 결선 단면적, 경질 코어 최대
16 mm²
트윈 와이어 종단 페룰, 최소
1,5 mm²

CSA rating data

Spänning grupp B (CSA)
600 V
Spänning grupp D (CSA)
600 V
Ström Gr B (CSA)
40 A
Ström Gr D (CSA)
5 A
Wire cross section min. (CSA)
18 AWG
Напряжение, класс C (CSA)
600 V
Поперечное сечение провода, макс. (CSA)
6 AWG
Сертификат № (CSA)
200039-1057876
Ток, разм. C (CSA)
40 A

General

Průřez propojení AWG, max.
AWG 6
Standards
IEC 60947-7-1 (-7-2)
Tragschiene
TS 35
Wire connection cross section AWG, min.
AWG 16

Rating data

Rated cross-section
10 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
57 A
Current at maximum wires
70 A
Standards
IEC 60947-7-1 (-7-2)
Volume resistance according to IEC 60947-7-x
0,56 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
1,82 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
6 AWG
Conductor size Factory wiring min. (UR)
18 AWG
Conductor size Field wiring max. (UR)
6 AWG
Conductor size Field wiring min. (UR)
18 AWG
Current size B (UR)
40 A
Current size C (UR)
40 A
Current size D (UR)
5 A
Voltage size B (UR)
600 V
Voltage size C (UR)
600 V
Voltage size D (UR)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-02
ECLASS 15.0
27-25-01-02
