Dette produkt er snart ikke længere tilgængeligt.

Sidste ordre dato: /Date(1798671600000)/

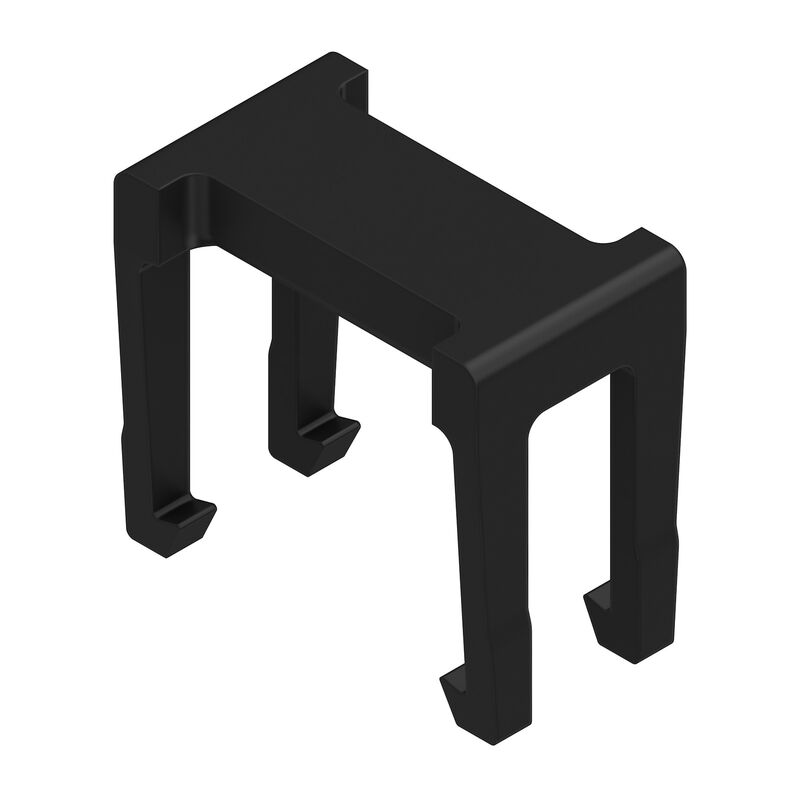

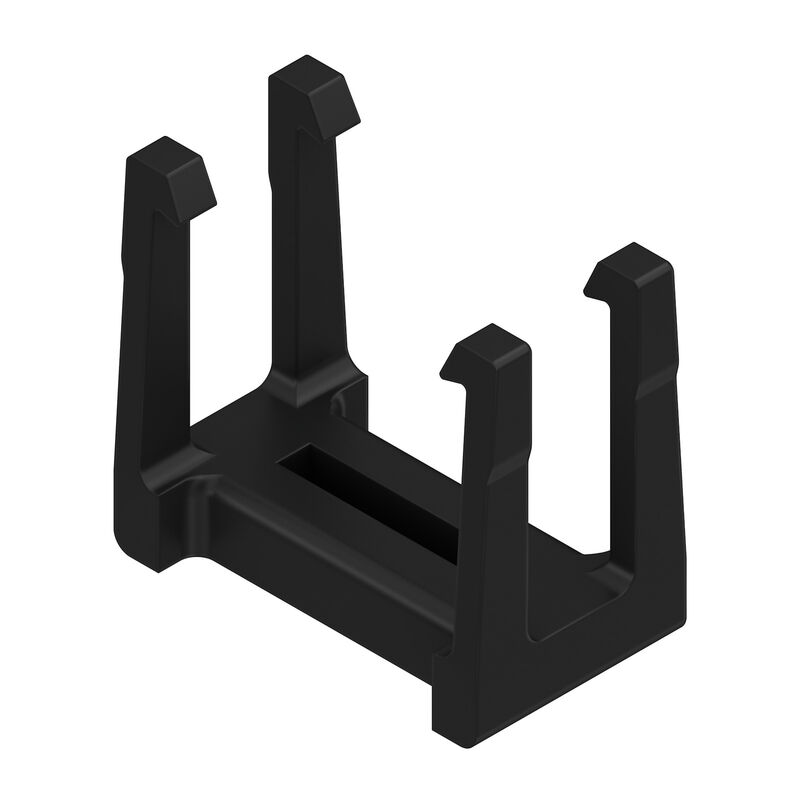

PCB plug-in connector, Accessories, Pitch in mm (P): 1.27 mm, Number of poles: 12, Box

Produkt ID 2852980000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 1 Anvendte produkter 9
Zulassungen General ordering data Dimensions and weights Environmental Product Compliance Material data Packing Important note Classifications

Zulassungen

ROHS
Konform

General ordering data

Version
PCB plug-in connector, Accessories, Pitch in mm (P): 1.27 mm, Number of poles: 12, Box
Order No.
2852980000
Type
FC/FFP ZE/12 B BX
GTIN (EAN)
4064675475316
Qty.
100 items
Valores característicos del producto
UL:
Packaging
Boîte

Dimensions and weights

Depth
6,3 mm
Depth (inches)
0,248 inch
Height
9,9 mm
Height (inches)
0,39 inch
Width
11,12 mm
Width (inches)
0,438 inch
Масса нетто
0,22 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

Material data

Insulating material
LCP
Colour
black
Colour chart (similar)
RAL 9011
Moisture Level (MSL)
1
Klasa palności wg UL 94
V-0
Материал контакта
Сплав меди
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-55 °C
Operating temperature, max.
125 °C

Packing

Packaging
Box
VPE length
173 mm
VPE width
102 mm
VPE height
43 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-02
ECLASS 15.0
27-46-04-02
