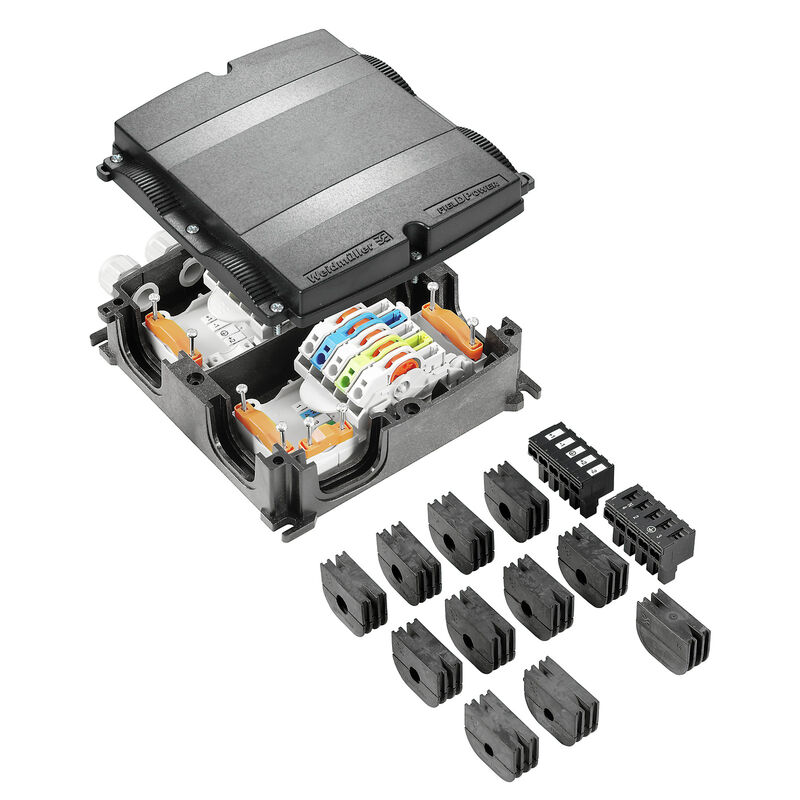

FieldPower® power distribution box, AC, IP65, in complete state, glass-fibre reinforced polycarbonate, PUSH IN, Insulation displacement connection (IDC), Distribution

Item No. 1002900000
Download data sheet Engineering Support Product Downloads
Accessories 4 Individual parts 10 Related products 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable gland Clamping capacity General data Rated data acc. to IEC Rated data acc. to UL Classifications

Approvals

ROHS
Conform

General ordering data

Version
FieldPower® power distribution box, AC, IP65, in complete state, glass-fibre reinforced polycarbonate, PUSH IN, Insulation displacement connection (IDC), Distribution
Order No.
1002900000
Type
FP BOX 10P 4XVG
GTIN (EAN)
4032248697038
Qty.
1  items

Dimensions and weights

Depth
67  mm
Depth (inches)
2.638  inch
Height
181  mm
Height (inches)
7.126  inch
Width
223  mm
Width (inches)
8.78  inch
Net weight
1,500  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
5f19cd84-8946-4797-9386-3ac323b95c10

Cable gland

Cable gland clamping area, max.
12  mm
Cable gland clamping area, min.
6  mm
Cable gland material
Polyamide 6
Number of cable glands
4

Clamping capacity

Connection data - contact element power bus
  • Wire connection method:
    Insulation displacement connection (IDC)
  • Blade size of operating tool:
    0.6 x 3.5 mm
  • Number of poles:
    5
  • Conductor connection cross-section, solid, max.:
    6 mm²
  • Conductor connection cross-section, solid, min.:
    1.5 mm²
  • Conductor connection cross-section, stranded, max.:
    6 mm²
  • Conductor connection cross-section, stranded, min.:
    2.5 mm²
  • Conductor connection cross-section, finely stranded, max.:
    6 mm²
  • Conductor connection cross-section, finely stranded, min.:
    2.5 mm²
  • Conductor connection cross-section, finest stranded, max.:
    6 mm²
  • Conductor connection cross-section, finest stranded, min.:
    2.5 mm²
Connection data - contact element Branch / Feed-in
  • Wire connection method:
    PUSH IN
  • Blade size of operating tool:
    0.6 x 3.5 mm
  • Stripping length:
    14 mm
  • Number of poles:
    5
  • Conductor connection cross-section, solid, max.:
    6 mm²
  • Conductor connection cross-section, solid, min.:
    0.5 mm²
  • Conductor connection cross-section, stranded, max.:
    6 mm²
  • Conductor connection cross-section, stranded, min.:
    0.5 mm²
  • Conductor connection cross-section, finely stranded, max.:
    10 mm²
  • Conductor connection cross-section, finely stranded, min.:
    0.5 mm²
  • Conductor connection cross-section, finest stranded, max.:
    6 mm²
  • Conductor connection cross-section, finest stranded, min.:
    0.5 mm²
  • Conductor connection cross-section with wire end ferrule:
    • Type of wire end ferrule:
      12 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      12 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      8 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      8 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      Twin wire-end ferrules
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²

General data

Material
Polycarbonate, glass fibre reinforced
Insulating material
Polycarbonate
Enclosure material
glass-fibre reinforced polycarbonate
Silicone
No
Colour
black
Protection degree
IP65
in complete state
UL 94 flammability rating
5VA
Torque for lid screws
2  Nm
Lid attachment
TX20 screws
Type of mounting
Screw mounting
Fixing lugs
Installation advice
Lid screws included
Function
Distribution
With cable gland
Yes
Can be coded
Yes
Coded on PE
Voltage type
AC
Number of poles
2 x 5
Number of connections / pole
1
Wire connection method
PUSH IN
Insulation displacement connection (IDC)

Rated data acc. to IEC

Rated data acc. to IEC for contact element
  • Voltage type:
    AC, DC
  • Standard:
    IEC 60947-7-1, IEC 60947-7-2
  • Rated voltage:
    800 V
  • Rated impulse withstand voltage:
    8 kV
  • Rated current (3 loaded poles):
    41 A
  • Rated current (4 loaded poles):
    25 A
Rated data acc. to IEC for plug-in connector
  • Voltage type:
    AC
  • Number of phases:
    3
  • Standard:
    IEC 60947-7-1, IEC 60947-7-2, IEC 61984
  • Rated voltage:
    690 V
  • Rated impulse withstand voltage:
    8 kV
  • Rated current (3 loaded poles):
    32 A
  • Rated current (4 loaded poles):
    25 A

Rated data acc. to UL

Rated data acc. to UL for contact element
  • Standard:
    UL 1059
  • Note:
    for use with UL-listed TC-ER cables
  • Conductor connection cross-section, AWG, max.:
    AWG 10
  • Conductor connection cross-section, AWG, min.:
    AWG 14
  • Rated voltage:
    600 V
  • Rated current:
    30 A
Rated data acc. to UL for plug-in connector
  • Standard:
    UL 1059
  • Note:
    for use with UL-listed TC-ER cables
  • Conductor connection cross-section, AWG, max.:
    AWG 12
  • Conductor connection cross-section, AWG, min.:
    AWG 16
  • Rated voltage:
    600 V
  • Rated current:
    20 A
Standards
not UL approved

Classifications

ETIM 6.0
EC000214
ETIM 7.0
EC000214
ETIM 8.0
EC000214
ETIM 9.0
EC000214
ETIM 10.0
EC000214
ECLASS 9.0
27-14-24-09
ECLASS 9.1
27-14-24-09
ECLASS 10.0
27-14-24-09
ECLASS 11.0
27-14-24-09
ECLASS 12.0
27-14-24-09
ECLASS 13.0
27-14-24-09
ECLASS 14.0
27-14-24-09
ECLASS 15.0
27-14-24-09
