SAIL-M12WM12G-3-2.5U
SAIL-M12WM12G-3-2.5U
Dimensioned drawing
Male, angled
SAIL-M12WM12G-3-2.5U
Dimensioned drawing
Straight socket
SAIL-M12WM12G-3-2.5U
Pole scheme
Male
SAIL-M12WM12G-3-2.5U
Pole scheme
Socket
SAIL-M12WM12G-3-2.5U
Wiring diagram
Schaltbild

SAIL-M12WM12G-3-2.5U

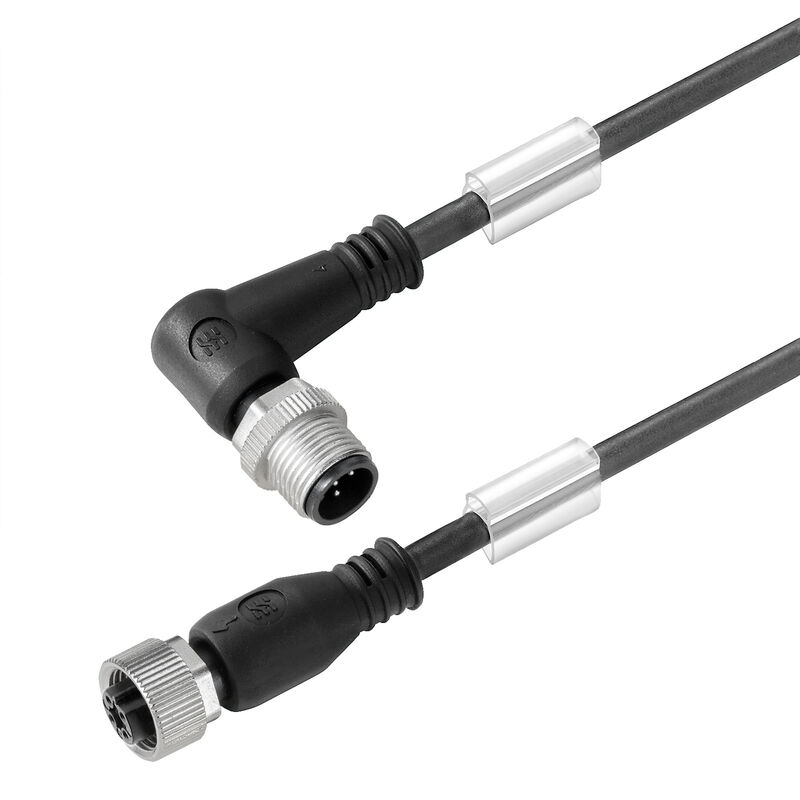

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 2.5 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 1821050250
Download data sheet Engineering Support Product Downloads
Accessories 6 Related products 10
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Versione
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 2.5 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Art.nr.
1821050250
유형
SAIL-M12WM12G-3-2.5U
GTIN(EAN)
4032248319237
Qty.
1 items

Dimensions and weights

Diameter
3.8 mm
Net weight
93 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
2.5 m
Colour coding
brown
blue
black
Configurable cable length
Yes
Core cross-section
0.34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Diámetro exterior
3.8 mm ± 0.15 mm
Délka krutu
1 m
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Materiál pláště hygroskopický
Yes
Number of poles
3
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
3.33 m/s
Suitable for cable carriers
Yes
Temperature range, stationary
-50...80 °C
Teplotní rozpětí, pohyblivé
-25...60 °C
Torsion resistance
180 °/m
Welding spark resistance
No

General technical data

IP65
IP66
IP67
IP68
when screwed in
IP69
Coding
A-coded
Connection thread
M12 / M12
Contact material
Gold-plated
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, angled - bush straight

Electrical properties

Résistance d'isolation
108 Ω
Tensión nominal
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Shock and vibration proof according to
Section B

Plug, left

Plug left
connector, M12, A-coded, Number of poles: 3, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
connector, M12, A-coded, Number of poles: 3, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
