SAIL-M8BW-3-10U
SAIL-M8BW-3-10U
Dimensioned drawing
Angled socket
SAIL-M8BW-3-10U
Pole scheme
Socket
SAIL-M8BW-3-10U
Wiring diagram

SAIL-M8BW-3-10U

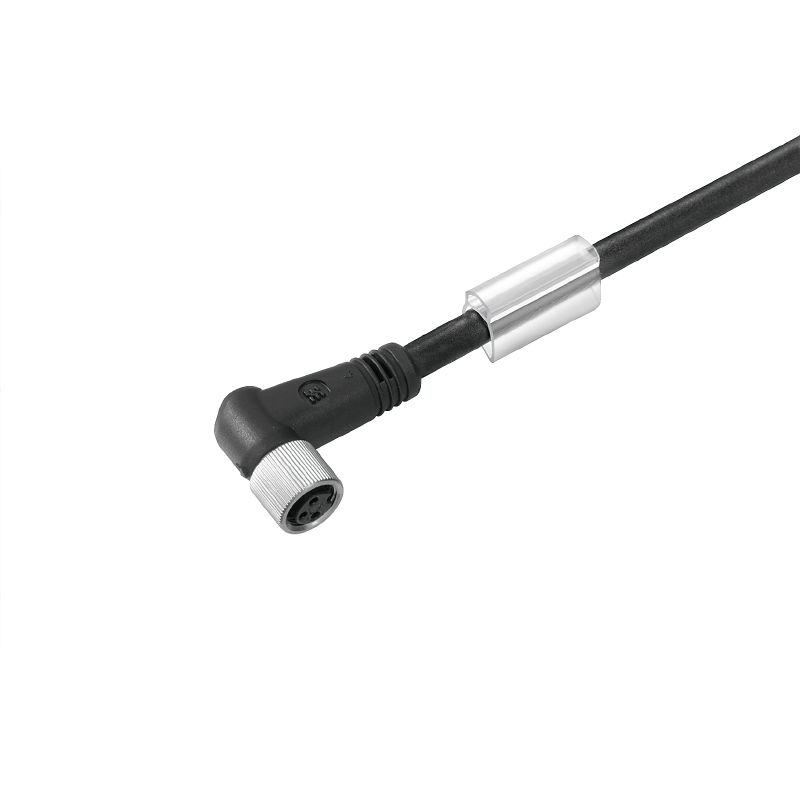

Sensor/actuator line, One end without connector, M8, Number of poles : 3, 10 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 9457381000
Download datablad Engineering-support Produktdownloads
Tilbehør 6 Anvendte produkter 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M8, Number of poles : 3, 10 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457381000
Type
SAIL-M8BW-3-10U
GTIN (EAN)
4032248228928
Qty.
1 Styk

Dimensions and weights

Diameter
3,6 mm
Net weight
208 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

A következő kábeltartókhoz:
Yes
Alogeni
No
Bending cycles at torsion
> 5 Mio.
Configurable cable length
No
Färkodning
brown
blue
black
Köpeny színe
black (similar to RAL 9005)
Longueur du câble
10 m
Odporne na hydrolizę i działanie mikroorganizmów
Yes
Olajokkal szembeni ellenállás
Yes
Rdzeń zgodnie z UL AWM style
10493 (80 °C / 300 V)
Resistant to welding beads
No
Schermato
No
Sieciowane radiacyjnie
No
Temperaturområde, fast lagd
-50...80 °C
Vridtålighet
180 °/m
Zewnętrzna okładzina zgodnie z UL AWM style
20549 (80 °C / 300 V)
Érkeresztmetszet
0,25 mm²
Встроенный дренажный провод
No
Стойкость к сварочным искрам
No
加速
5 m/s²
回路数
3
外径
3.6 mm + 0.15 mm
扭转长度
1 m
曲げ半径、最小、移動
10 x cable diameter
移动中的温度范围
-25...60 °C
絶縁
PP
구부림 반경, 최소, 고정
5 x cable diameter
구부림 주기
5 Mio
속도
3,33 m/s
외피 재질
PUR
화염 내성
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2

General technical data

Coding
A-coded
Connection thread
M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
IP69
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
Version
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Certificate No. (CSA)
200039-2372994
Norme de connecteur
IEC 61076-2-104
Nº de certificat (cULus)
E307231

Standards

Connector standard
IEC 61076-2-104

Plug, left

Plug left
M8, IP69, female contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
