SAIL-ZW-M8BG-3-1.0U
SAIL-ZW-M8BG-3-1.0U
Dimensioned drawing
Twin male connector, straight
SAIL-ZW-M8BG-3-1.0U
Dimensioned drawing
Male, straight
SAIL-ZW-M8BG-3-1.0U
Pole scheme
Pin
SAIL-ZW-M8BG-3-1.0U
Pole scheme
Socket
SAIL-ZW-M8BG-3-1.0U
Wiring diagram

SAIL-ZW-M8BG-3-1.0U

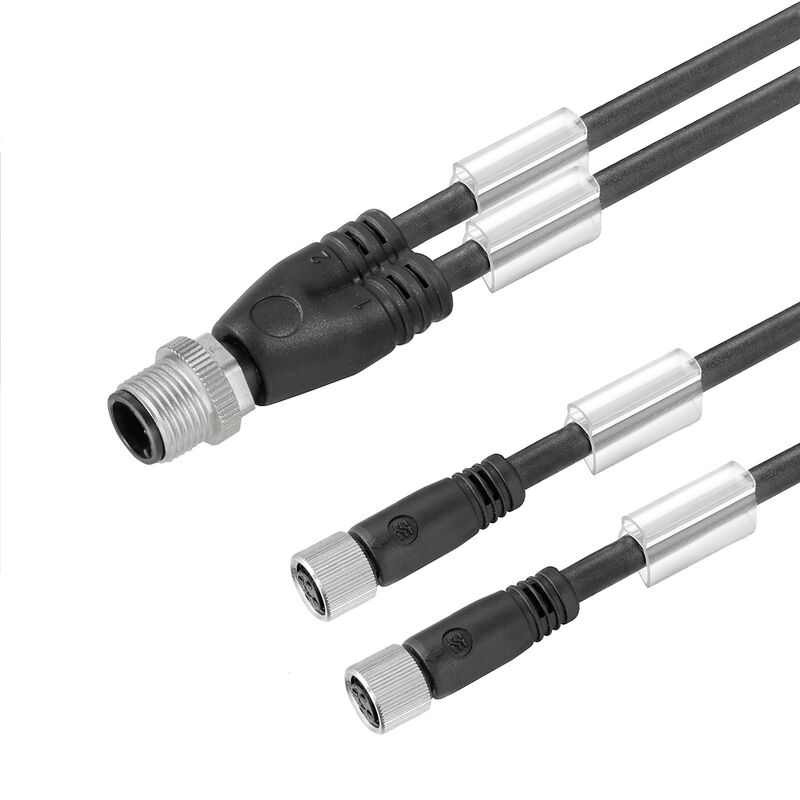

Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 1 m, Twin cabling, pin, straight, 2x socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 9457490100
Veri sayfasını indir Ürün İndirmleri
İlgili ürünler 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Product images Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Utförande
Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 1 m, Twin cabling, pin, straight, 2x socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Art.nr.
9457490100
Typ
SAIL-ZW-M8BG-3-1.0U
GTIN (EAN)
4032248877676
Qty.
1 adet

Dimensions and weights

Net weight
57,2 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
1 m
Colour coding
brown
blue
black
Configurable cable length
No
Core cross-section
0,25 mm²
Csavarás hossza
1 m
Cycles de courbure à la torsion
> 5 Mio.
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
Numero di poli
3
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Plage de température, en mouvement
-25...60 °C
Resistance to oils
Yes
Resistance to spread of flame
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Resistant to welding beads
No
Resistencia a la torsión
180 °/m
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, stationary
-50...80 °C
Welding spark resistance
No
Žíla v souladu se stylem UL AWM
10493 (80 °C / 300 V)
외경
3.6 mm ± 0.15 mm

General technical data

Ausführung
Twin cabling, pin, straight
2x socket, straight
calibre de llave
12 mm
Coding
M12 = A, M8 = none
Connection thread
M12 / M8
Contact material
CuZn35PB2
Dugaszolási ciklusok
≥ 100
Gehäusebasismaterial
PUR
Insulation resistance
108 Ω
Kontaktoberfläche
Gold-plated
LED
No
Nominal current
4 A
Nominal voltage
60 V
Szennyezés súlyossága
3
Védelmi osztály
IP65
IP66
IP67
IP68
when screwed in
Zakres temperatury obudowy
-25…+85 °C
áthidalt
No
나사선 링 재질
Diecast zinc
Brass, nickel-plated

Electrical properties

Isolationsmotstånd
108 Ω
Nominal voltage
60 V

General standards

Connector standard
IEC 61076-2-101
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-101
IEC 61076-2-104

Plug, left

Stickkontakt vänster
M12, A-coded, Number of poles: 4, male contact, straight, plug, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
