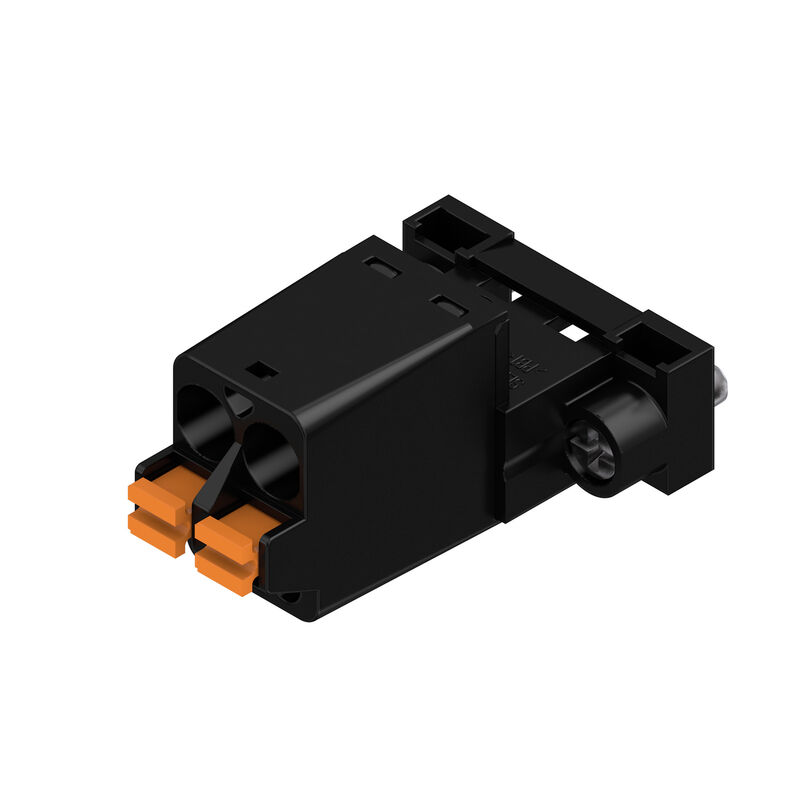

Illustrazione del prodotto
SLF 5.08/02/180FI SN BK BX

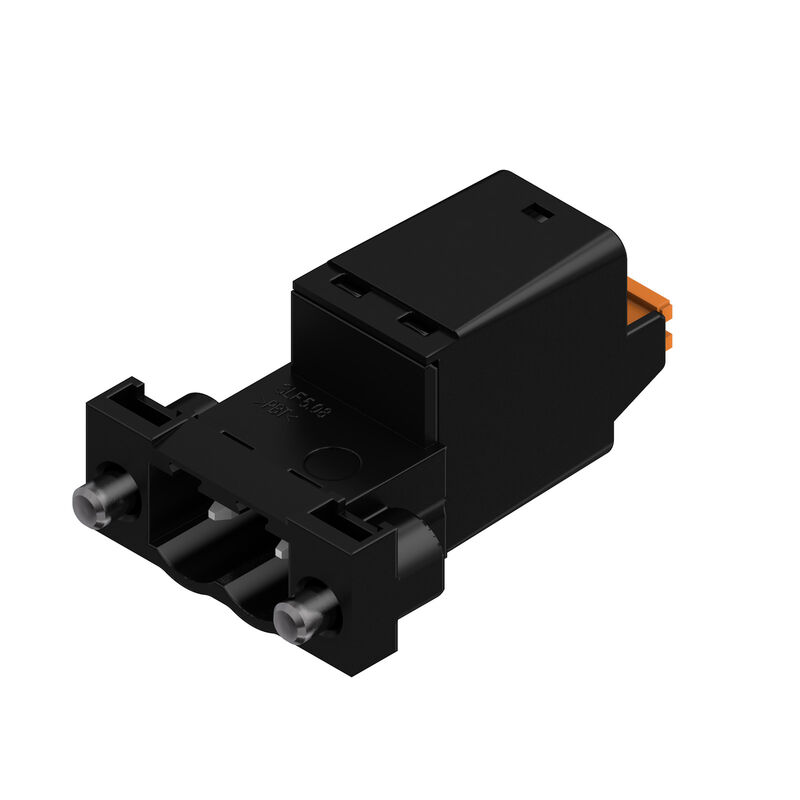

Product image
SLF 5.08/02/180FI SN BK BX
Rysunek wymiarowany
SLF 5.08/02/180FI SN BK BX
Graph
SLF 5.08/02/180FI SN BK BX
Diagramm
SLF 5.08/02/180FI SN BK BX
Produktvorteil
Kompromisslose Funktion
Hohe Vibrationsbeständigkeit
SLF 5.08/02/180FI SN BK BX
Produktvorteil
Solider PUSH IN-Kontakt
Sicher und dauerhaft
SLF 5.08/02/180FI SN BK BX
Produktvorteil
Reduzierte Montagekosten
Sicher und sekundenschnell
SLF 5.08/02/180FI SN BK BX
Produktvorteil
Einfache Handhabung
Keine Durchführungsrahmen nötig

SLF 5.08/02/180FI SN BK BX

Bu ürün artık mevcut değil.

PCB plug-in connector, male plug, 5.08 mm, Number of poles: 2, 180°, PUSH IN with actuator, Clamping range, max. : 3.31 mm², Box

Ürün No. 1336040000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Şunun karşı parçasıdır 14 İlgili ürünler 11
Godkännanden General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Anslutningsbara ledare Номинальные характеристики по IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Godkännanden

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Версия
PCB plug-in connector, male plug, 5.08 mm, Number of poles: 2, 180°, PUSH IN with actuator, Clamping range, max. : 3.31 mm², Box
Заказ №
1336040000
Тип
SLF 5.08/02/180FI SN BK BX
GTIN (EAN)
4050118139600
数量
90 adet
Product data
IEC: 400 V / 25.9 A / 0.2 - 2.5 mm²
UL: 300 V / 14 A / AWG 26 - AWG 12
Packaging
Box
Status dostawy
This article will no longer be available in the future.
마지막 주문 날짜
/Date(1793401200000)/

Dimensions and weights

Depth
30 mm
Depth (inches)
1,181 inch
Height
14,2 mm
Height (inches)
0,559 inch
正味重量
0,011 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Produktfamilie
OMNIMATE Signal - series BL/SL 5.08
Anschlussart
Field connection
Leiteranschlusstechnik
PUSH IN with actuator
Raster in mm (P)
5,08 mm
Raster in Zoll (P)
0,2 "
Leiterabgangsrichtung
180°
Polzahl
2
L1 in mm
5,08 mm
L1 in Zoll
0,2 "
Anzahl Reihen
1
Polreihenzahl
1
Bemessungsquerschnitt
2,5 mm²
Berührungsschutz nach DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Durchgangswiderstand
≤5 mΩ
Kodierbar
Yes
탈피 길이
10 mm
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5,5 N
Tightening torque
  • Torque type:
    Screw flange
  • Usage information:
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm

Material data

Isoleringsmaterial
PBT
Цветовой код
black
Color componentes de accionamiento
orange
Farbtabelle (ähnlich)
RAL 9011
Klasifikace hořlavosti UL 94
V-0
Contact material
Copper alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Anslutningsbara ledare

Anslutningsområde, min.
0,13 mm²
Диапазон зажима, макс.
3,31 mm²
Sección de conexión del conductor AWG, min.
AWG 26
결선 단면규격 AWG, 최대
AWG 12
단선, 최소 H05(07) V-U
0,2 mm²
Rigide, max. H05(07) V-U
2,5 mm²
Flexible, mín. H05(07) V-K
0,2 mm²
Flexible, máx. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. フェルール、DIN 46228 pt 1、最小.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
EN 60999 a x b 규격, ø
2.8 mm x 2.0 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      1333100000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Номинальные характеристики по IEC

пройдены испытания по стандарту
IEC 60664-1
IEC 61984
Courant nominal, nombre de pôles min. (Tu = 20 °C)
25,9 A
Rated current, max. number of poles (Tu=20°C)
21,7 A
Bemessungsstrom, min. Polzahl (Tu=40°C)
22,5 A
Courant nominal, nombre de pôles max. (Tu = 40 °C)
18,5 A
Tensión nominal con categoría de sobretensión/grado de polución II/2
400 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4.000 V
サージ電圧等級の定格インパルス電圧/汚染度 III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s with 120 A

Rated data acc. to CSA

Institut (CSA)
CSA
Zertifikat-Nr. (CSA)
200039-1121690
Nennspannung (Use group B / CSA)
300 V
Nennspannung (Use group D / CSA)
300 V
Nennstrom (Use group B / CSA)
10 A
Nennstrom (Use group D / CSA)
10 A
Leiteranschlussquerschnitt AWG, min.
AWG 26
Leiteranschlussquerschnitt AWG, max.
AWG 12
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Zertifikat-Nr. (cURus)
E60693
Nennspannung (Use group B / UL 1059)
300 V
Nennspannung (Use group D / UL 1059)
300 V
Nennstrom (Use group B / UL 1059)
14 A
Nennstrom (Use group D / UL 1059)
10 A
Leiteranschlussquerschnitt AWG, min.
AWG 26
Leiteranschlussquerschnitt AWG, max.
AWG 12
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Packing

Verpackung
Box
VPE Länge
350 mm
VPE Breite
135 mm
VPE Höhe
35 mm

Type tests

Prüfung: Haltbarkeit der Markierungen
  • Standard:
    IEC 61984 section 6.2 and 7.3.2 / 10.11, IEC 60068-2-70 / 12.95
  • Test:
    mark of origin, type identification, pitch, date clock, type of material
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Prüfung: Fehlerhafte Kupplung (Nichtaustauschbarkeit)
  • Standard:
    IEC 61984 section 6.3 and 6.9.1 / 10.11, IEC 60512-13-5 / 02.06
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Prüfung: Klemmbarer Querschnitt
  • Standard:
    IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.0 mm²
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Prüfung auf Beschädigung und unbeabsichtigtes Lösen von Leitern
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Pull-Out Test
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • The test point can only be used as potential-pickup point.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
