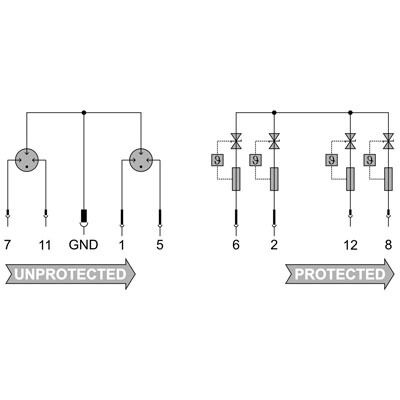

Circuit diagram
VSPC 3/4WIRE 24VDC
Derating curve
Discharge capacity
VSPC 3/4WIRE 24VDC
VSPC 3/4WIRE 24VDC
VSPC 3/4WIRE 24VDC

VSPC 3/4WIRE 24VDC

Surge protection for instrumentation and control, without warning function / function indicator

Produkt ID 8924550000
Download datablad Engineering Support Product Downloads
Tilbehør 4 Modstykker 2 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Rated data UL CSA protection data General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Further details of approvals Connection data Electrical data General data Ratings IECEx/ATEX/cUL Guarantee Important note Classifications Tender specification sheets

Approvals

Dopuszczenia
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319227/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319238/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319261/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr. (UL)
E311081

General ordering data

Wersja
Surge protection for instrumentation and control, without warning function / function indicator
Заказ №
8924550000
Тип
VSPC 3/4WIRE 24VDC
GTIN (EAN)
4032248696192
Qty.
1 Styk

Dimensions and weights

Głębokość
69 mm
Depth (inches)
2,717 inch
Wysokość
90 mm
Height (inches)
3,543 inch
Szerokość
17,8 mm
Width (inches)
0,701 inch
Net weight
47 g

Temperatures

Temperatura magazynowania
-40 °C...80 °C
Temperatura eksploatacyjna
-40 °C...70 °C
Humidity
5...96 %

Probability of failure

SIL in compliance with IEC 61508
3
MTTF
2.655 a
SFF
95,33 %
λges
43
PFH in 1*10-9 per hour
7

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
Wyłączenie RoHS (w przypadkach, w których ma to zastosowanie / jest znane)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
71e97bb7-979f-4330-94c0-20c629bb05e3

Rated data UL

Certificate No. (UL)
E311081
UL certificate
[UL 497b Certificate](PDF/E311081VOL1SEC2.pdf)

CSA protection data

Gas group C
IIB
Gas group D
IIA
Gas groups A, B
IIC
Input voltage, max. Ui
28 V
Internal capacity, max. CI
4 nF
Internal inductance, max. LI
0 µH

General data

Colour
orange
Design
Terminal
miscellaneous
Optical function display
No
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
without warning function / function indicator

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Ableitstrom Imax. (8/20µs) GND-PE
10 kA
Capacitance
935 pF
Corrente di scarica In (8/20 µs) terra-PE
2.5 kA
Corriente de fuga In (8/20µs) conductor-conductor
2.5 kA
Courant de décharge Imax (8/20 µs) fil-PE
10 kA
Discharge current In (8/20µs) wire-PE
2.5 kA
Levezetőáram Imax. (8/20µs) vezeték-vezeték
10 kA
Lightning test current, Iimp (10/350 µs) GND-PE
2.5 kA
Lightning test current, Iimp (10/350 µs) Wire-PE
2.5 kA
Lightning test current, Iimp (10/350 µs) wire-wire
2.5 kA
Max. continuous voltage, Uc (DC)
28 V
Number of poles
1
Overload - failure mode
Modus 2
Protection level on output side Wire-PE 1kV/µs, typically
270 V
Protection level on output side Wire-wire 1 kV/µs, typically
50 V
Protection level on output side Wire-wire 8/20 µs, typically
50 V
Pulse-reset capacity
≤ 30 ms
Rated current IN
450 mA
Rated load current IL
450 mA
Rated voltage (DC)
24 V
Requirements category acc. to IEC 61643-21
C1
C2
C3
D1
Signal transmission properties (-3 dB)
750 KHz
Signalling contact
No
Standards
IEC 61643-21
Surge current-carrying capacity C1
<1 kA 8/20 μs
Surge current-carrying capacity C2
5 kA 8/20 μs
Surge current-carrying capacity C3
100 A 10/1000 μs
Surge current-carrying capacity D1
2.5 kA 10/350 μs
Voltage type
DC
Volume resistance
0.20 Ω

Further details of approvals

GOST certificate
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Type of connection
Pluggable in VSPC BASE

Electrical data

Voltage type
DC

General data

Number of poles
1
Protection degree
IP20
Colour
orange

Ratings IECEx/ATEX/cUL

cUL certificate
[cUL Certificate](pdf/VSPC.PDF)

Guarantee

Time interval
5 years

Important note

Сведения об изделии
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01

Tender specification sheets

Long specification
Surge protection plug for use in connection with the base element VSPC BASE 2/4 CH for four floating-ground driven signal cables. Two-stage protection consisting of coarse and fine protection between all signal cables as well as coarse common mode voltage protection to signal ground/earth. Mechanical identification of the plug to the base element according to the switching type and rated voltage. Protected plug with coding pin and counter-profile for the base element. Optical identification of the protected plug based on the type of protected switching and the voltage level. It is possible to mark the plug.
Short specification
Surge protection plug for base element VSPC BASE 2/4 CH, transverse voltage coarse and fine protection for four floating-ground powered signal cables, coarse common mode voltage protection to earth.Version: 24 V DC
