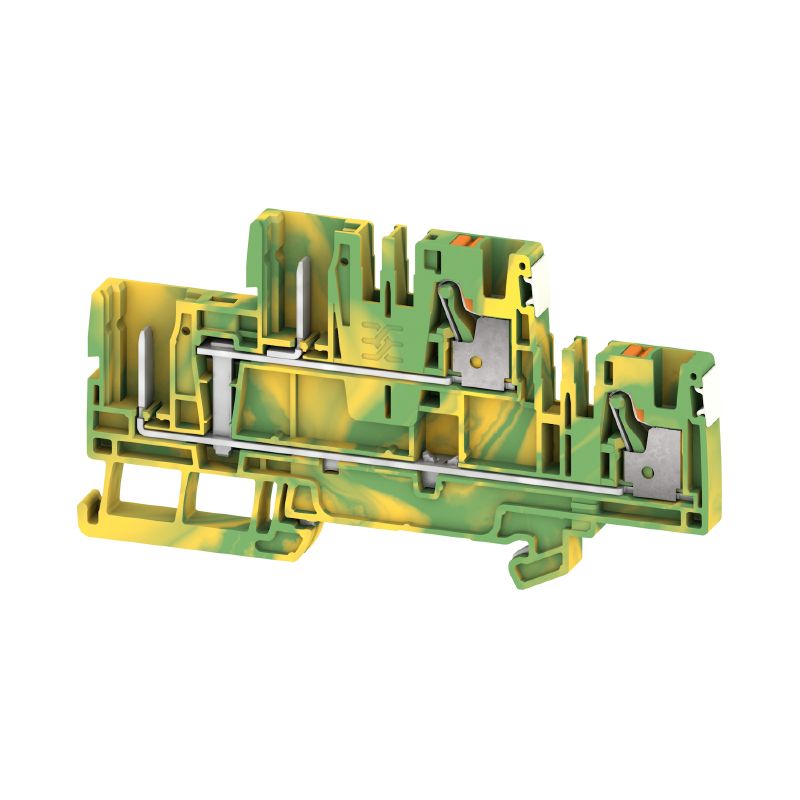

Steckbare Reihenklemme, PUSH IN, 4 mm², 800 V, 32 A, grün / gelb

Art.-Nr. 2676080000
Im Konfigurator öffnen
Datenblatt herunterladen Engineering Support Produkt Downloads
Zubehör 110 Verwandte Artikel 162
Approvals Allgemeine Bestelldaten Abmessungen und Gewichte Temperaturen Umweltanforderungen Характеристики материала Systemkennwerte Additional technical data Conduttori allacciabili (altro collegamento) Raccordement (raccordement nominal) Informacje ogólne Bemessungsdaten Klassifikationen

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Konform

Allgemeine Bestelldaten

Version
Steckbare Reihenklemme, PUSH IN, 4 mm², 800 V, 32 A, grün / gelb
Order No.
2676080000
Type
APGTB 4 2T PE 4C/2 DL
GTIN (EAN)
4050118817737
VPE
50 Stück

Abmessungen und Gewichte

Depth
53,5 mm
Tiefe (inch)
2,106 inch
Tiefe inklusive Tragschiene
54,5 mm
Height
100 mm
Höhe (inch)
3,937 inch
Width
6,1 mm
Breite (inch)
0,24 inch
Net weight
24,78 g

Temperaturen

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Dauergebrauchstemperatur, min.
-60 °C
Dauergebrauchstemperatur, max.
130 °C

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
Keine SVHC über 0,1 Gew.-%

Характеристики материала

Basic material
Wemid
Colour
grün / gelb
Farbe Betätigungselemente
orange
UL 94 flammability rating
V-0

Systemkennwerte

End cover plate required
Ja
Number of potentials
1
Anzahl der Etagen
2
Anzahl der Klemmstellen je Etage
2
Number of potentials per tier
1
Levels cross-connected internally
Ja
PE connection
Ja
Tragschiene
TS 35
N-Funktion
Nein
Función PE
Ja
PEN function
Nein

Additional technical data

Explosion-tested version
Yes
Open sides
höger
Snap-on
Yes
Type of fixing
TS 35
Type of mounting
TS 35

Conduttori allacciabili (altro collegamento)

Connection type, additional connection
플러그형

Raccordement (raccordement nominal)

6 mm²
Blade size
0,6 x 3,5 mm
Clamping range, min.
0,14 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
in alto
Gauge to IEC 60947-1
A4
Number of connections
4
Stripping length
12 mm
Twin wire-end ferrules, max.
1,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
PUSH IN
Type of connection 2
pluggable
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

Informacje ogólne

Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Bemessungsdaten

Rated cross-section
4 mm²
Rated voltage
800 V
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Nominal current
32 A
Current at maximum wires
32 A
Durchgangswiderstand gemäß IEC 60947-7-x
1 mΩ
Power loss in accordance with IEC 60947-7-x
1,02 W
Pollution severity
3
Surge voltage category
III

Klassifikationen

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
