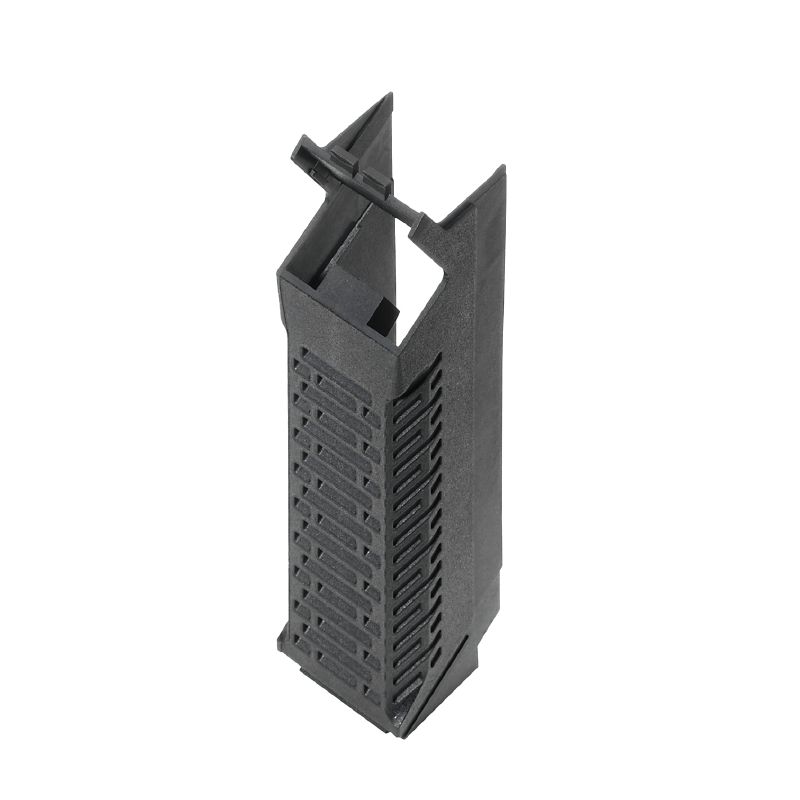

Élément latéral, OMNIMATE Housing - série CH20M noir, Élément latéral, Largeur: 22.5 mm

Produkt ID 1080630000
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Enkeltdel til 2 Anvendte produkter 3
승인 Informations générales de commande Dimensions et poids Temperature Conformité environnementale du produit Material data General data Component properties 분류

승인

ROHS
Conform

Informations générales de commande

Version
Élément latéral, OMNIMATE Housing - série CH20M noir, Élément latéral, Largeur: 22.5 mm
Order No.
1080630000
Type
CH20M22 S PSCSC BK 2010
GTIN (EAN)
4032248843237
Qty.
10 items

Dimensions et poids

Depth
105,5 mm
Profondeur (pouces)
4,154 inch
Height
22,8 mm
Altezza (pollici)
0,898 inch
Width
22,5 mm
Ширина (в дюймах)
0,886 inch
Net weight
9,3 g

Temperature

Ambient temperature
-25 °C…85 °C
Operating temperature range
-40...120 ℃
Humidity
5 - 93% rel. humidity, Tu = 40°C, no condensation

Conformité environnementale du produit

RoHS Compliance Status
Conforme sans exemption
REACH SVHC
0.1 wt% 이상의 SVHC 없음

Material data

Basic material
Plastic
Comparative Tracking Index (CTI)
600 ≤ CTI
Insulating material
PA 66 GF 30
Insulating material group
I
Surface finish
untreated
UL 94 flammability rating
V-0

General data

Colour
black
Colour chart (similar)
RAL 9011
Encapsulation option
No
Protection degree
IP20 in installed state

Component properties

Cut out as preperation for functional port integrated
No
Number of connection levels
1
Number of poles, max.
4
Number of slots for female plugs
1
Number of ventilation openings
2

분류

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-06-02
ECLASS 15.0
27-19-06-02
