H0,5/14S W
H0,5/14S W
Detailed drawing

H0,5/14S W

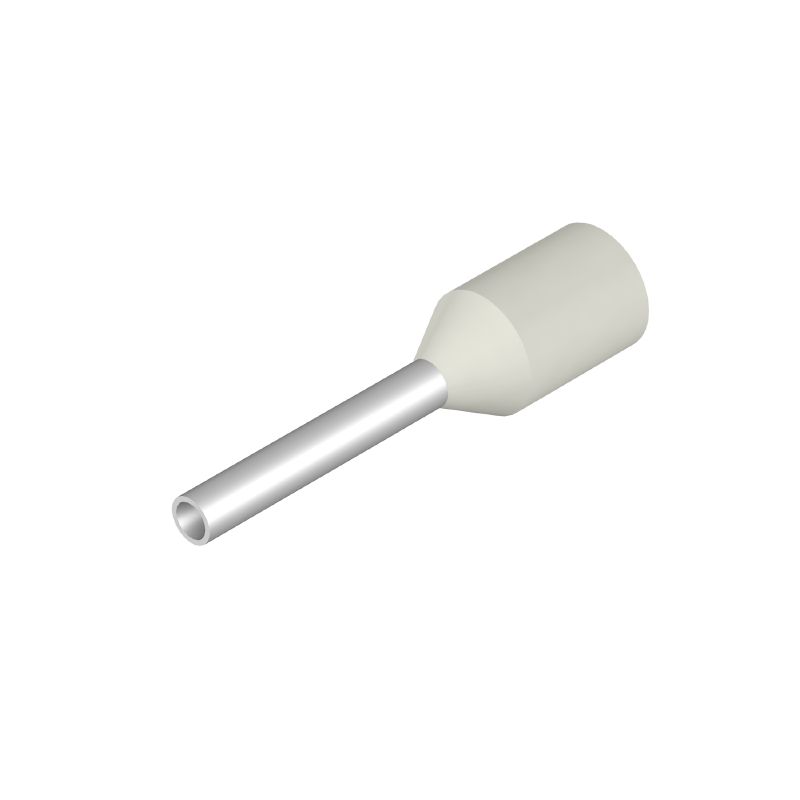

Wire-end ferrule, Standard, 10 mm, 8 mm, white

Ürün No. 9004590000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
aksesuarıdır 10 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Wire-end ferrules Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/bd70fd7c-25a7-46d9-a404-2588bf18d09f/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E499744

General ordering data

Ausfuehrung
Wire-end ferrule, Standard, 10 mm, 8 mm, white
Rendelési szám
9004590000
Art
H0,5/14S W
GTIN (EAN)
4008190862060
Qty.
500 adet
Packaging
loose

Dimensions and weights

Net weight
0,065 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Description of article
Wire end ferrule with plastic collar, special size, white
Version
Standard

Wire-end ferrules

Barevný kód
Weidmueller
Collar diameter (D2)
2,9 mm
Contact surface diameter (D1)
1 mm
Contact surface length (L2)
8 mm
Délka odizolování
10 mm
L1 in mm
14 mm
Plastic collar thickness (S2)
0,25 mm
Průřez propojení AWG, max.
AWG 20
Průřez vodiče
0,5 mm²
Tloušťka kovové objímky (S1)
0,15 mm

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
