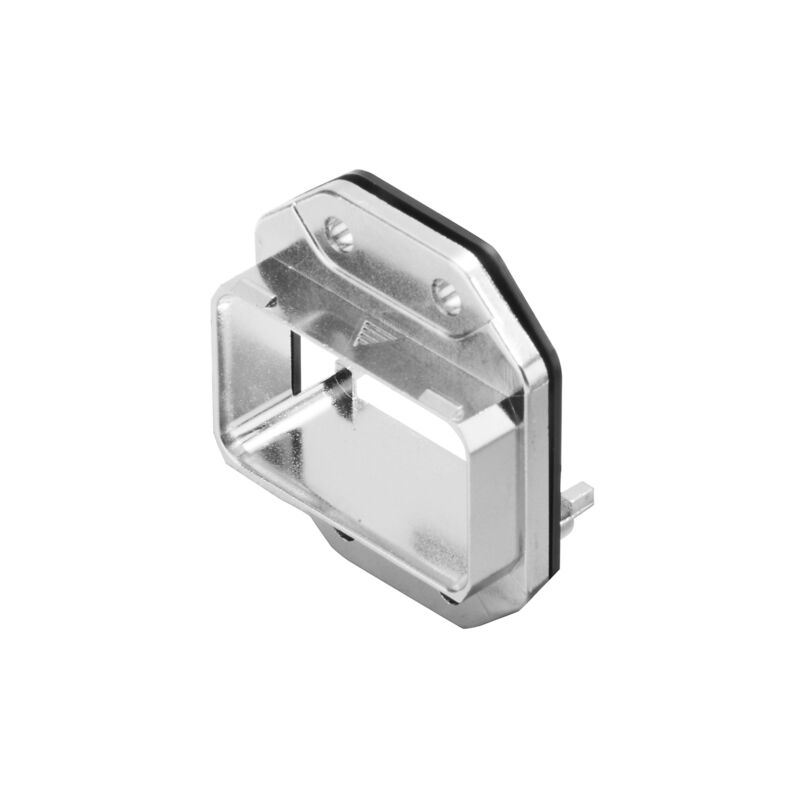

IE-BHD-VAPM
IE-BHD-VAPM

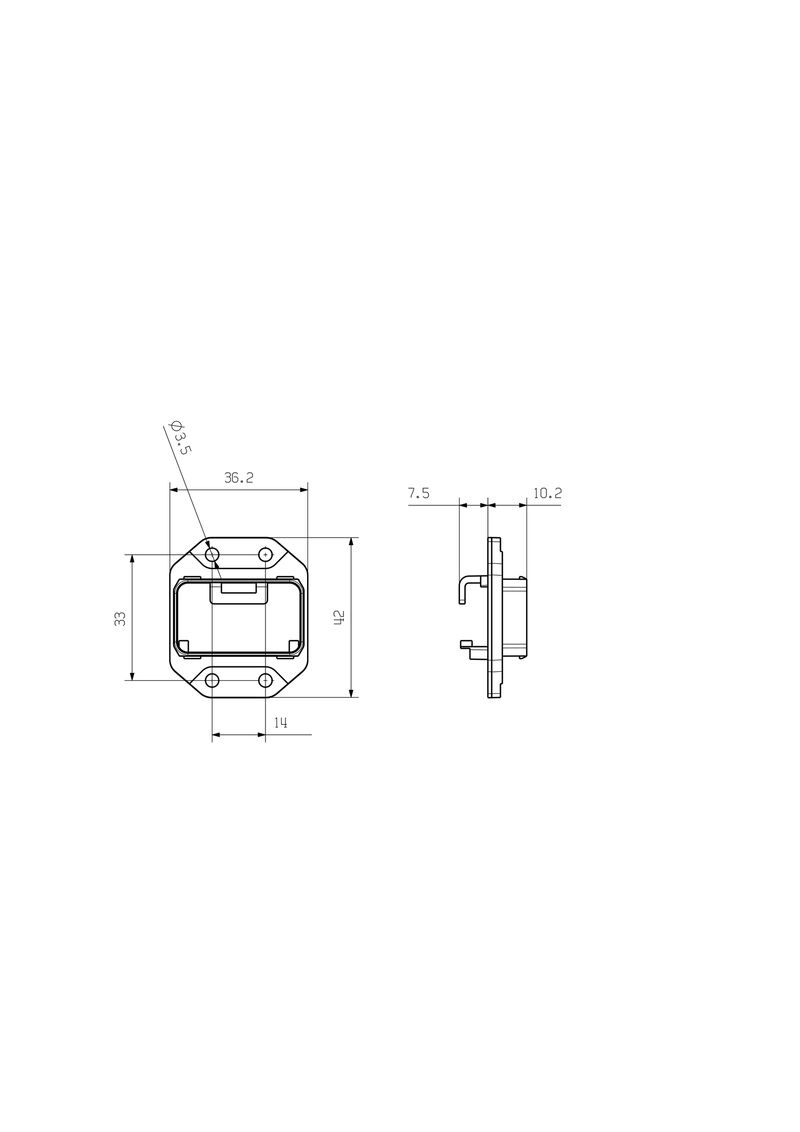

Dimensioned drawing
IE-BHD-VAPM

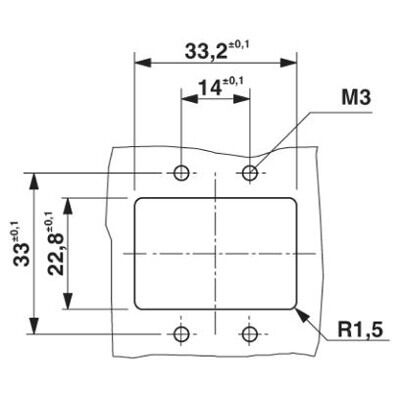

Installation cut-out

IE-BHD-VAPM

Power connector, Device flange, PROFINET

Produkt ID 2493490000
Download datablad Engineering Support Product Downloads
Anvendte produkter 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data General standards Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202

General ordering data

Version
Power connector, Device flange, PROFINET
Order No.
2493490000
Type
IE-BHD-VAPM
GTIN (EAN)
4050118529104
Qty.
1 Styk

Dimensions and weights

Height
42 mm
Height (inches)
1,654 inch
Width
36,2 mm
Width (inches)
1,425 inch
Length
14,2 mm
Length (inches)
0,559 inch
Net weight
23 g

Temperatures

Operating temperature
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Barwny
Silver grey
Monteringstyp
4 screws
Plugging cycles
500
Pollution severity
2
Protection degree
IP67
Sealing material
NBR
Shielding
unshielded
Type of interlock
Push Pull
Основной материал корпуса
Zinc diecast
nickel-plated

General standards

N° certificato (UR)
E92202

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
