IE-C5DB4RE0030MCAMCA-E
IE-C5DB4RE0030MCAMCA-E
Dimensioned drawing
Male, angled
IE-C5DB4RE0030MCAMCA-E
Dimensioned drawing
IE-C5DB4RE0030MCAMCA-E
Wiring
IE-C5DB4RE0030MCAMCA-E
Detailed drawing

IE-C5DB4RE0030MCAMCA-E

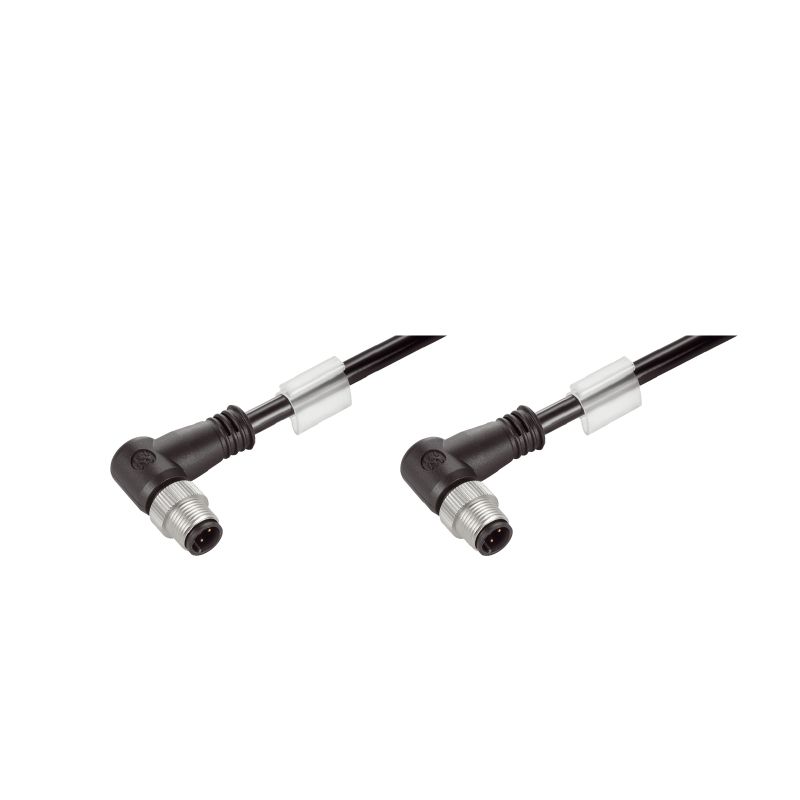

System cable, M12 D-code – IP 67 angled pin, M12 D-code – IP 67 angled pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), Radox GKW S, 3 m

Product ID 1059970030
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 6 Verwante producten 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, M12 D-code – IP 67 angled pin, M12 D-code – IP 67 angled pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), Radox GKW S, 3 m
Código
1059970030
Type
IE-C5DB4RE0030MCAMCA-E
GTIN (EAN)
4032248808731
VPE
1 items

Dimensions and weights

Length
3 m
Length (inches)
118,11 inch
Net weight
232,32 g

Temperatures

Storage temperature
-40 °C...90 °C
Betriebstemperatur
-40 °C...90 °C
Installation temperature
-25 °C...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Corrosiveness of fumes
to IEC 60754-2
Fire safety for railway vehicles
According to DIN 5510-2 fire safety levels 1,2,3,4
According to BS 6853
According to EN50288-2-2
According to EN 45545, HL1 - HL3
Flertrådiga metalliska data- och styrkablar
According to EN50288-2-2
Hydrogen halide content
According to EN-50267-2-1
According to IEC 60754-1
Impervious to smoke
According to BS 6853 Appendix D
in accordance with EN 50268-2
According to IEC 61034-2
Poisonous gases
According to BS 6853 Appendix B
Tenue au feu des bus
According to ISO 6722-1 5.22 (UN ECE-R 118.01)
Zawartość fluoru
According to EN 60684-2 Section 45.2
Распространение горения в вертикальных пучках кабелей
According to BS4066-3
DIN EN 50266-2-5
According to IEC 60332-3-25 D

General standards

Connector standard
IEC 61076-2-101

Cable structure

Cross-section
2*2*AWG 22/7 - 2*2*0.36 mm²
Insulation cross-section
1,95 mm
Material sheath
Radox GKW S
Sheath diameter, max.
7,55 mm
Sheath diameter, min.
6,95 mm
Sheathing colour
black
Shielding
SF/UTP
Strands
7

Electrical properties of cable

Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)

Mechanical and material properties of cable

Abrasion resistance
very good
Corrosiveness of fumes
to IEC 60754-2
Halogen
halogen-free, according to IEC 60754-2
Impervious to smoke
According to BS 6853 Appendix D
in accordance with EN 50268-2
According to IEC 61034-2
Min. bending radius, repetitive
6 *diameter
Resistance to oils
in accordance with EN 50306-3
Resistance to spread of flame
in accordance with IEC 60332-1-2

Plug, left

Plug left
M12, D-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Plug, right

Spina di collegamento a destra
M12, D-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
