IE-C5DE4UP0015PCSPCS-E

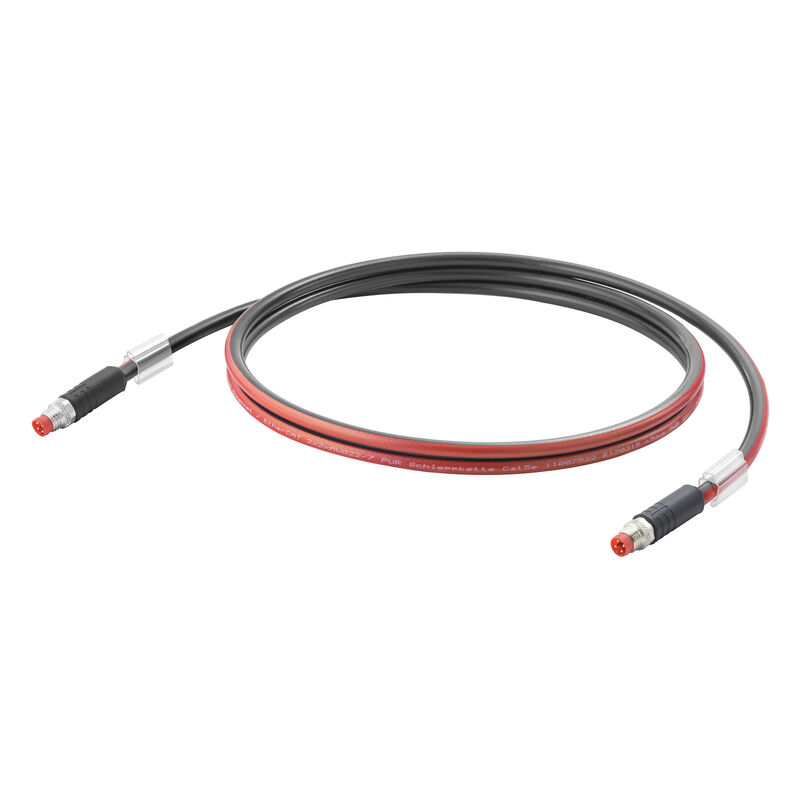

Dragline cable, M8 P-code - IP67 straight pin, M8 P-code - IP67 straight pin, Cat. 5e, PUR, 1.5 m

Produkt-ID 2717780015
Ladda ner datablad Product Downloads
Verwandte Artikel 50
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for cable General technical data Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Dragline cable, M8 P-code - IP67 straight pin, M8 P-code - IP67 straight pin, Cat. 5e, PUR, 1.5 m
Order No.
2717780015
Type
IE-C5DE4UP0015PCSPCS-E
GTIN (EAN)
4050118780185
Qty.
1 items

Dimensions and weights

Länge
1,5 m
Length (inches)
59,055 inch
Net weight
86,24 g

Temperatures

Temperatura de servicio
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Technical specifications for cable

Bending cycles
2 Mio
Colour coding
white
yellow
blue
orange
Halogen
halogen-free, according to IEC 60754
Insulation
Polyolefin
Number of poles
4
Number of wires
4
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
Yes
Sheath material
PUR
Sheathing colour
black
Shielded
Yes
Suitable for cable carriers
No
Temperature range, moving
-30...70 °C
Temperature range, stationary
-40...80 °C
Test voltage: wire-wire-shield
1 kV DC, 1 min
1000 Veff, 50 Hz, 1 min

General technical data

Protection degree
IP67

Plug, left

Plug left
M8, P-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
M8, P-coded, IP67, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
