IE-C6FS8UG0030A40A40-G
IE-C6FS8UG0030A40A40-G
Wiring
IE-C6FS8UG0030A40A40-G
Dimensioned drawing

IE-C6FS8UG0030A40A40-G

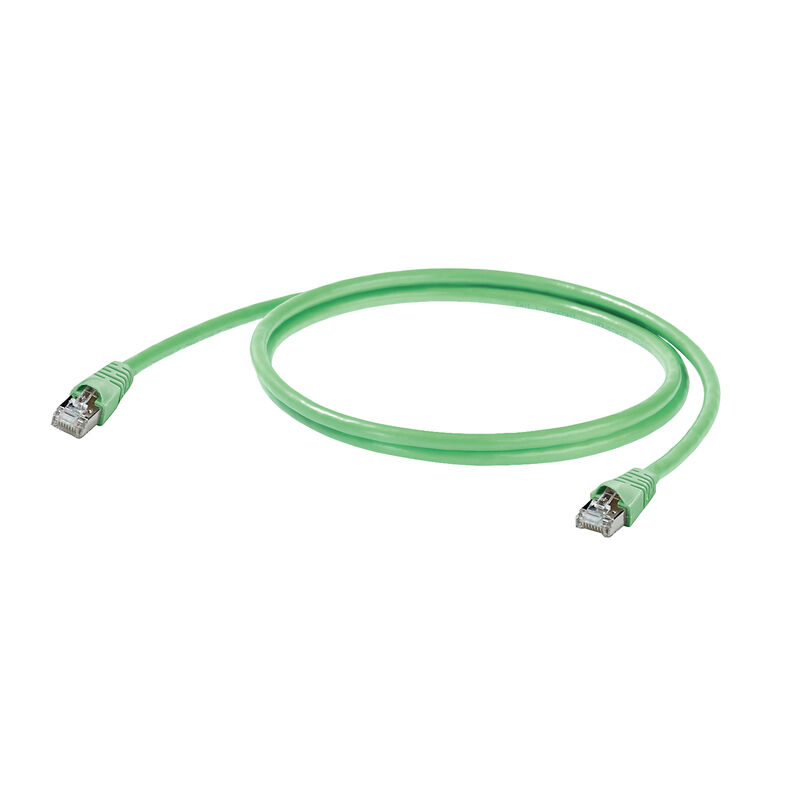

System cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), PUR, 3 m

Tuotteen tunnus 8941350030
Lataa tietosivu Teknisk support Nedladdningar av produkter
Lisävarusteet 2 Samankaltaiset tuotteet 24
Approvals General ordering data Dimensiones y pesos Temperatures Environmental Product Compliance Cable specific standards Proprietà elettriche General standards Standards Cable structure Electrical properties of cable Механические свойства и свойства материала кабеля Spina di collegamento Connettore maschio sx Connettore maschio dx Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conformidad
UL File Number Search
[Sitio web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(cULus)
E316369

General ordering data

Version
System cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), PUR, 3 m
Order No.
8941350030
Type
IE-C6FS8UG0030A40A40-G
GTIN (EAN)
4032248792023
Qty.
1 Pièce

Dimensiones y pesos

Length
3 m
Longitud (pulgadas)
118,11 inch
Poids net
116,16 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Installation temperature
-10 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Sin SVHC por encima del 0,1 % en peso

Cable specific standards

Corrosiveness of fumes
According to EN50288-2-2
Generic communication cable facilities
ISO / IEC 11801:2002
ANSI / TIA / EIA-568-B.2-10
EN 50173-1:2007

Proprietà elettriche

PoE / PoE+
conforming to IEEE 802.3at

General standards

Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51
Corrosiveness of fumes
According to EN50288-2-2
Generic communication cable facilities
ISO / IEC 11801:2002
ANSI / TIA / EIA-568-B.2-10
EN 50173-1:2007

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 27/7 - 4*2*0.1 mm²
Insulation
PE
Insulation cross-section
1,02 mm
Material sheath
PUR
Number of wires
8
Overlap of shielding braid
60 %
Sheath diameter, max.
6,4 mm
Sheath diameter, min.
6 mm
Sheathing colour
green
Shielding
S/FTP
Strands
7
Wire material
Stranded tin-plated copper wire
Wire pair shielding
Aluminium foil

Electrical properties of cable

Capacity at 1 kHz
46 nF/km
Category
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
100 ± 22 Ω at 100–250 MHz
100 ± 25 Ω at 250–600 MHz
Delay skew
25 ns/100m
Signal propagation time
4,27 ns/m
Test voltage: wire-wire-shield
750 V DC, 1 min
Transmission rate
10 Gbit/s

Механические свойства и свойства материала кабеля

Abriebfestigkeit
very good
Biegeradius, min., einmalig
5 x cable diameter
Flammwidrigkeit
in accordance with IEC 60332-1 / UL 1581 FT2
Halogen
halogen-free, according to IEC 60754-2
Korrosivität von Brandgasen
según EN50288-2-2
Min. bending radius, repetitive
10 x diamètre du câble
Resistance to oils
по стандарту IEC 60811-2-1
Silicone-free
Yes
UV-resistant
Yes

Spina di collegamento

Plug left
RJ45, IP20, Contatto maschio, Diritto, Spina di collegamento, Plastica, schermate
Plug right
RJ45, IP20, Contatto maschio, Diritto, Spina di collegamento, Plastica, schermate

Connettore maschio sx

Plug left
RJ45, IP20, Contatto maschio, Diritto, Spina di collegamento, Plastica, schermate

Connettore maschio dx

Plug right
RJ45, IP20, Contatto maschio, Diritto, Spina di collegamento, Plastica, schermate

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
