LUF 15.00/05/90V 5.0SN BK BX

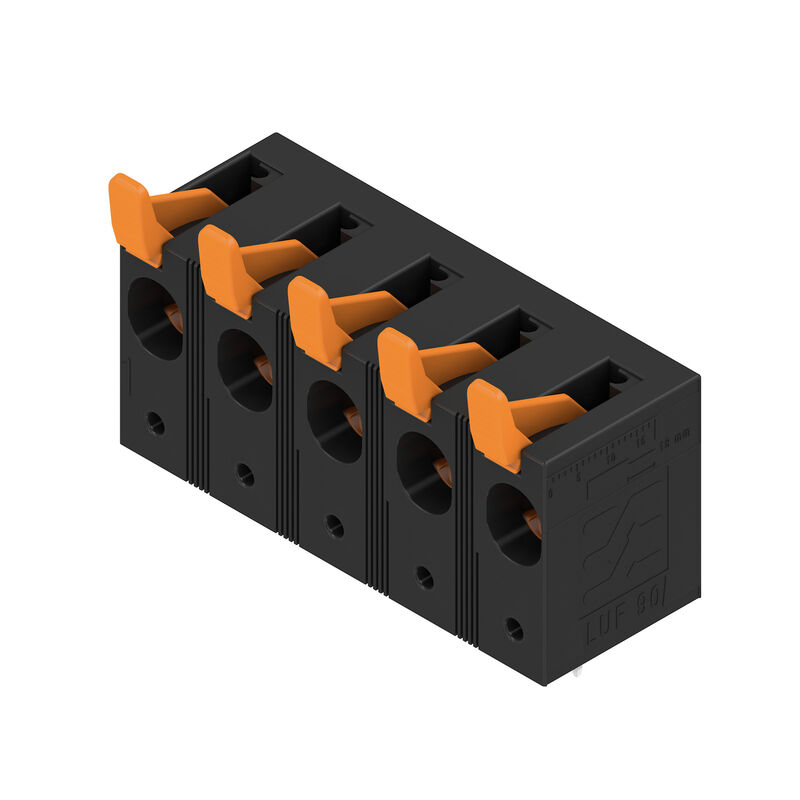

Product image
LUF 15.00/05/90V 5.0SN BK BX
Product image
LUF 15.00/05/90V 5.0SN BK BX

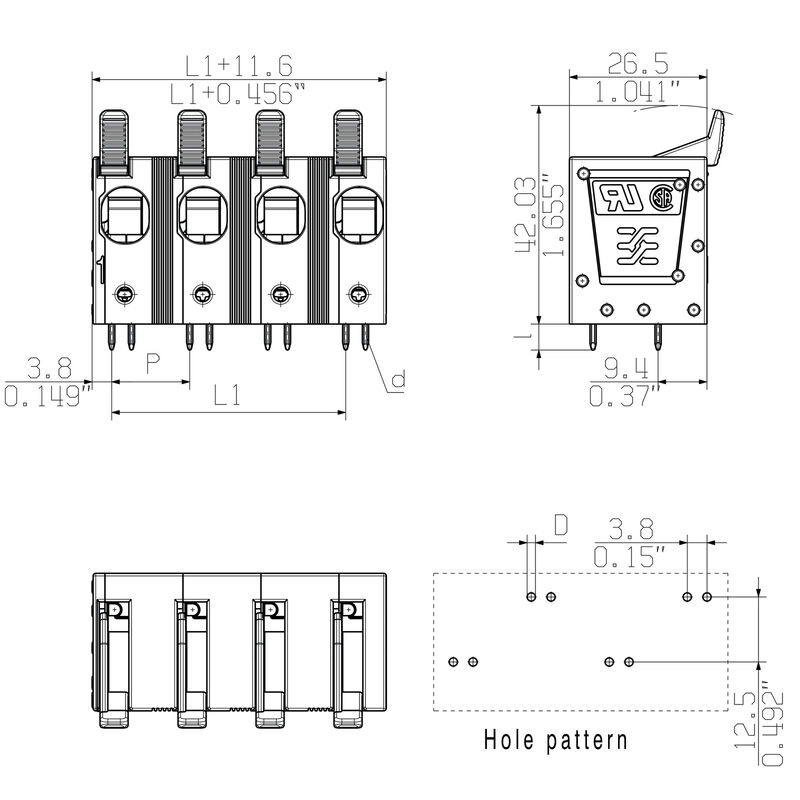

Dimensional drawing
LUF 15.00/05/90V 5.0SN BK BX

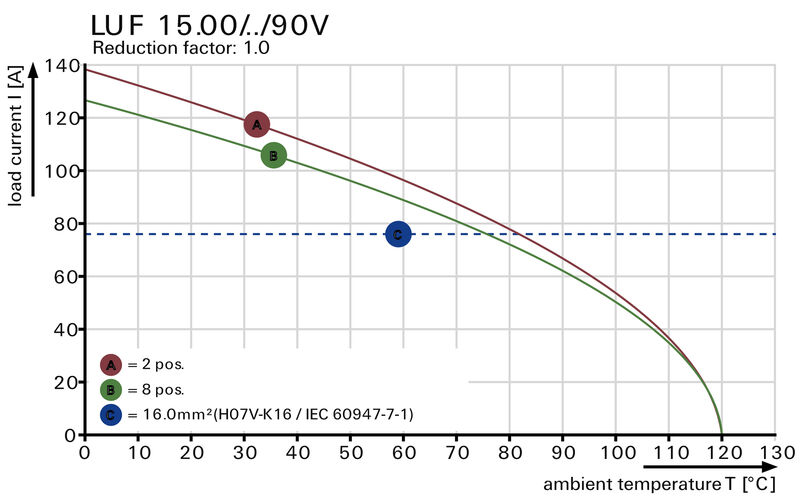

Derating curve
LUF 15.00/05/90V 5.0SN BK BX

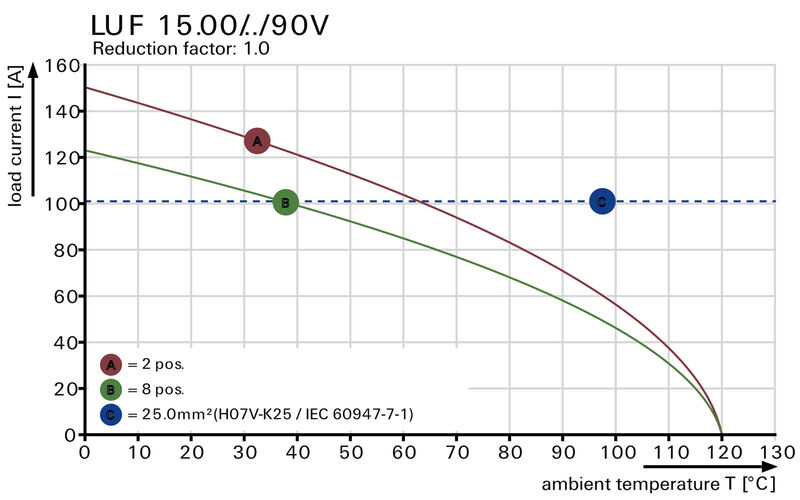

Derating curve
LUF 15.00/05/90V 5.0SN BK BX
Product benefits
High stability through pin design
LUF 15.00/05/90V 5.0SN BK BX

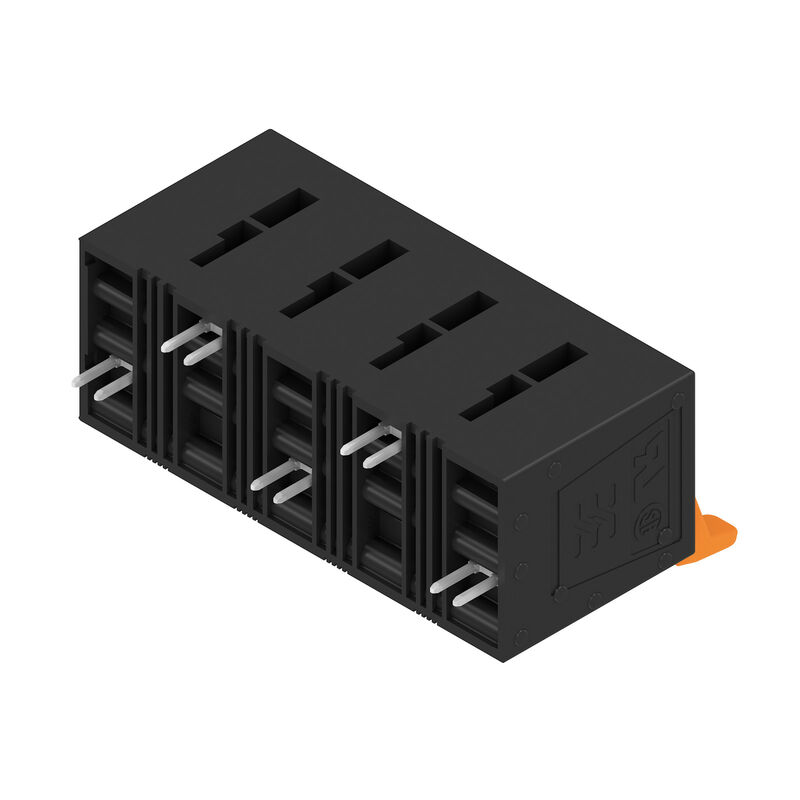

Product image
PUSH IN connection up to 16 mm²

LUF 15.00/05/90V 5.0SN BK BX

Printed circuit board terminals, 15.00 mm, Number of poles: 5, 90°, Solder pin length (l): 5 mm, tinned, black, PUSH IN with lever, Clamping range, max. : 25 mm², Box

Ürün No. 2492030000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 1 İlgili ürünler 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Utförande
Printed circuit board terminals, 15.00 mm, Number of poles: 5, 90°, Solder pin length (l): 5 mm, tinned, black, PUSH IN with lever, Clamping range, max. : 25 mm², Box
Art.nr.
2492030000
Typ
LUF 15.00/05/90V 5.0SN BK BX
GTIN (EAN)
4050118604245
Qty.
20 adet
Product data
IEC: 1000 V / 101 A / 0.5 - 25 mm²
UL: 600 V / 58 A / AWG 18 - AWG 6
Packaging
Box

Dimensions and weights

Djup
26,45 mm
Depth (inches)
1,041 inch
Höjd
47,03 mm
Height (inches)
1,852 inch
Height of lowest version
42,03 mm
Bredd
71,58 mm
Width (inches)
2,818 inch
Net weight
60,47 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Produktfamilj
OMNIMATE Power - series LU
Metoda wykonywania złącz
PUSH IN with lever
Монтаж на печатной плате
THT solder connection
Направление вывода кабеля
90°
Delning i mm (P)
15 mm
Passo in pollici (P)
0,591 "
Number of poles
5
Pin series quantity
1
Fitted by customer
No
Number of rows
1
Lunghezza spina a saldare (l)
5 mm
Dimensioner för lödstift
d = 1.2 mm
Octagonal
Diameter bestyckningshål (D)
1,7 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
2
Screwdriver blade
0.8 x 4.0
Stripping length
18 mm
L1 in mm
60 mm
L1 in inches
2,362 "
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Touch-safe protection acc. to DIN VDE 57 106
touch-safe with connected connectors from 6 mm²
Protection degree
IP20

Material data

Insulating material
Wemid (PA)
Colour
black
Colour of operational elements
orange
Färgtabell (jämförbar)
RAL 9011
Isoleringsmaterialgrupp
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Kontaktgrundmaterial
E-Cu
Contact material
Cu-alloy
Contact surface
tinned
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−40 °C
Operating temperature, max.
120 °C

Conductors suitable for connection

Clamping range, min.
0,5 mm²
Clamping range, max.
25 mm²
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section AWG, max.
AWG 4
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
16 mm²
Stranded, min. H07V-R
10 mm²
Stranded, max. H07V-R
25 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
16 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
16 mm²
Plug gauge in accordance with EN 60999 a x b; ø
5.3mm (B6)
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        20 mm
    • Recommended wire-end ferrule:
      9019180000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004090000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        20 mm
    • Recommended wire-end ferrule:
      9019210000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004110000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        20 mm
    • Recommended wire-end ferrule:
      0565700000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004130000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      10 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        21 mm
    • Recommended wire-end ferrule:
      0565800000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      0379300000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      16 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        21 mm
    • Recommended wire-end ferrule:
      0566000000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      0375200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        20 mm
    • Recommended wire-end ferrule:
      0565600000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004070000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

Rated current, min. number of poles (Tu=20°C)
101 A
Rated current, max. number of poles (Tu=20°C)
89,7 A
Märkström, min. antal poler (Tu=40°C)
95,3 A
Märkström, max. antal poler (Tu=40°C)
79,4 A
Rated voltage for surge voltage class / pollution degree II/2
1 000 V
Rated voltage for surge voltage class / pollution degree III/2
1 000 V
Rated voltage for surge voltage class / pollution degree III/3
1 000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
8 kV
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
8 kV

Rated data acc. to CSA

Номинальное напряжение (группа использования B/CSA)
600 V
Номинальное напряжение (группа использования C/CSA)
600 V
Märkspänning (användargrupp D / CSA)
600 V
Rated current (Use group B / CSA)
58 A
Rated current (Use group C / CSA)
58 A
Névleges áram (D felhasználási csoport / CSA)
5 A
Ledardiameter AWG, min.
AWG 18
Sezione di collegamento cavo AWG, max.
AWG 6

Rated data acc. to UL 1059

Институт (cURus)
CURUS
Сертификат № (cURus)
E60693
Märkspänning (användargrupp B / UL 1059)
600 V
Märkspänning (användargrupp C / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
600 V
Rated voltage (Use group E / UL 1059)
1 000 V
Märkström (användargrupp B / UL 1059)
58 A
Rated current (Use group C / UL 1059)
58 A
Rated current (Use group D / UL 1059)
5 A
Rated current (Use group E / UL 1059)
58 A
Wire cross-section, AWG, min.
AWG 18
Ledardiameter AWG, max.
AWG 6
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Förpackning
Box
VPE-längd
314 mm
VPE-bredd
181 mm
VPE-höjd
57 mm

Type tests

Test: Hållfasthet för märkningar
  • Test:
    mark of origin, type identification, pitch, durability, stripping length
  • Evaluation:
    available
Test: Klämbar area
  • Standard:
    IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U10
    • Type of conductor and conductor cross-section:
      H07V-K10
    • Type of conductor and conductor cross-section:
      H07V-U16
    • Type of conductor and conductor cross-section:
      H07V-K16
    • Type of conductor and conductor cross-section:
      AWG 4/1
    • Type of conductor and conductor cross-section:
      AWG 4/19
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      solid 16 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 16 mm²
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 20/19
  • Evaluation:
    passed
Test beträffande ledare som skadats och lossnat oavsiktligt
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 20/19
    • Type of conductor and conductor cross-section:
      AWG 4/7
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    2.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U16
    • Type of conductor and conductor cross-section:
      H07V-K16
  • Evaluation:
    passed
  • Requirement:
    4,5 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 4/19
  • Evaluation:
    passed
Frånslagstest
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥30 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 20/19
  • Evaluation:
    passed
  • Requirement:
    ≥100 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 4/7
    • Type of conductor and conductor cross-section:
      AWG 4/19
    • Type of conductor and conductor cross-section:
      H07V-U16
    • Type of conductor and conductor cross-section:
      H07V-K16
  • Evaluation:
    passed

Important note

IPC-konformitet
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hänvisningstext
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • The test point can only be used as potential-pickup point.
  • The single-position PCB terminal block can be used for voltages up to 1500 V (DC) and 1000 V (AC). The relevant device standard and the appropriate required clearances and creepage distances should be observed in the application
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
