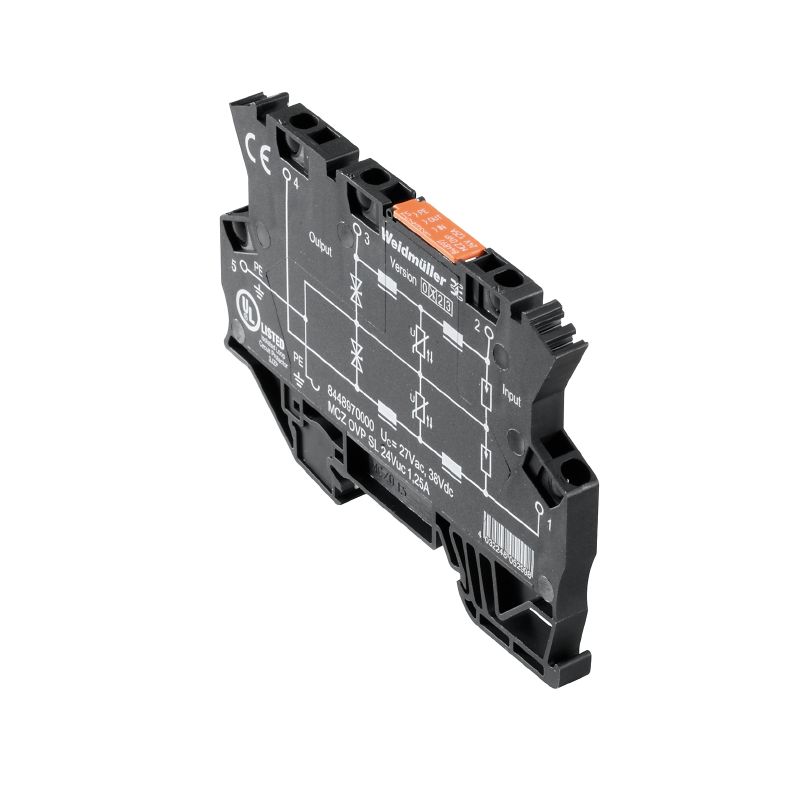

MCZ OVP SL 24VUC 1,25A
MCZ OVP SL 24VUC 1,25A
Electric symbol

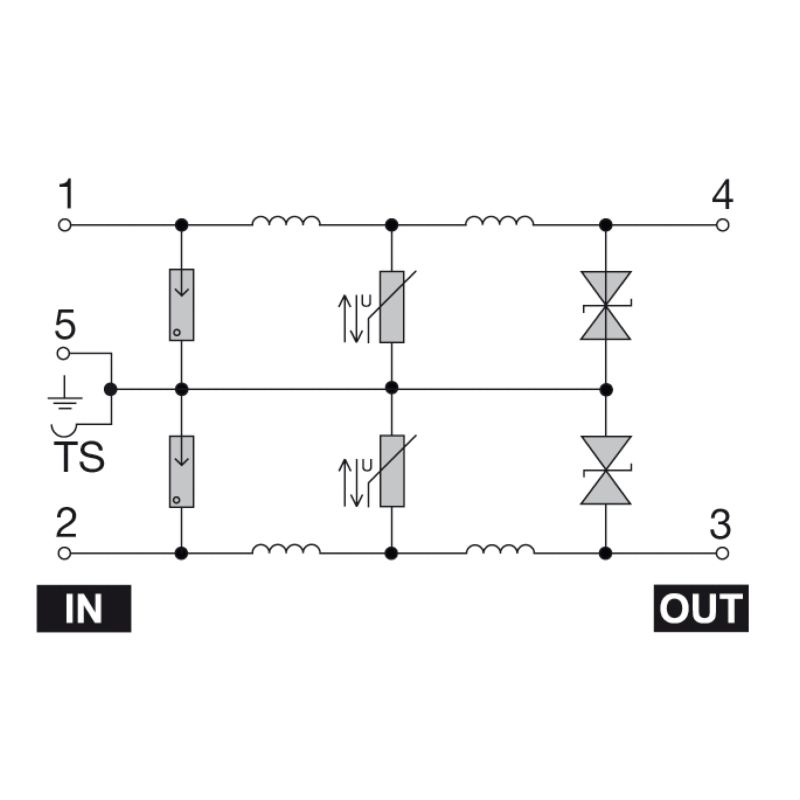

Circuit diagram

MCZ OVP SL 24VUC 1,25A

Surge protection for instrumentation and control, Surge protection for measurement and control

Product ID 8448970000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 4 Verwante producten 10
Approvals General ordering data 尺寸和重量 Temperatures Environmental Product Compliance Rated data UL General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E311081

General ordering data

Version
Surge protection for instrumentation and control, Surge protection for measurement and control
Order No.
8448970000
Type
MCZ OVP SL 24VUC 1,25A
GTIN (EAN)
4032248052998
Qty.
10 items

尺寸和重量

Depth
63,5 mm
Depth (inches)
2,5 inch
Height
91 mm
Height (inches)
3,583 inch
Width
6 mm
Width (inches)
0,236 inch
Net weight
25,2 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...60

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
c9db83e7-2b25-44e1-8d26-da64d426373f

Rated data UL

Certificate No. (UL)
E311081

General data

Colour
black
Design
Terminal
Height with TS 35
63,5 mm
Mounting rail
TS 35
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Corrente di prova da fulmine Iimp (10/350 µs)
1 kA
Discharge current, Iimp (10/350 µs)
1 kA
Fuse protection
1.3 A
Gränsfrekvens (-3 dB) vid Lastmotstånd
500 kHz 240 Ω
IEC 61643-21에 따른 요구 조건 범주
D1
Inductance L and L1
35 µH
Operating current, Imax.
1,25 A
Protection level on output side Wire-PE 1kV/µs, typically
40 V
Protection level on output side Wire-PE 8/20 µs, typically
65 V
Protection level on output side Wire-wire 1 kV/µs, typically
80 V
Rated current IN
1,25 A
Rated voltage (AC)
24 V
Rated voltage (DC)
24 V
Rated voltage (DC), max.
38 V
Stupeň ochrany na výstupní straně vodič-vodič8/20 µs, typicky
130 V
Tensión de servicio
34 V
Tiempo de respuesta / tiempo de recuperación
≤ 100 ps
Voltage type
AC/DC
Volume resistance
1.00 Ω
Сопротивление нагрузки (для предельной частоты)
240 Ω
最大持续工作电压，Uc (AC)
28 V
방전 전류, 최대 (8/20 µs)
5 kA

Connection data

Cross-section
1,5 mm²
Stripping length
8 mm
Wire connection method
Spring connection
Type of connection
Tension-clamp connection
Stripping length, rated connection
8 mm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Blade size
0.6 x 3.5 mm

Electrical data

Voltage type
AC/DC

General data

Protection degree
IP20
Colour
black

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01
