PZ 2.5 S

PZ 2.5 S

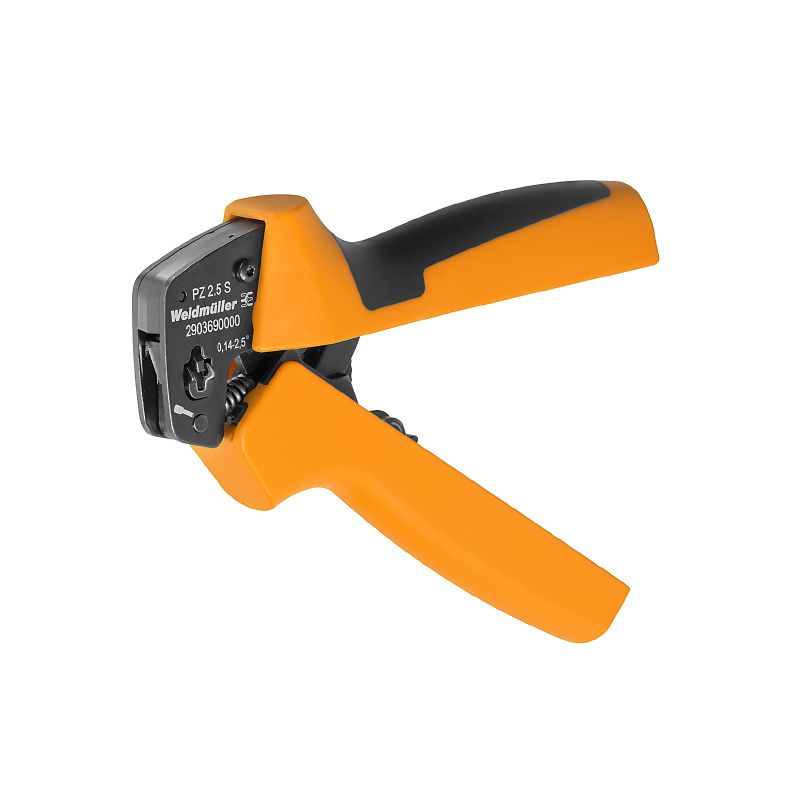

0.14mm², 2.5mm², Trapezoidal crimp

Produkt ID 2903690000
Download datablad Engineering Support Product Downloads
Er tilbehør til 112 Anvendte produkter 13
General ordering data Dimensions and weights Environmental Product Compliance Technical data Popis kontaktu tool data crimping Classifications

General ordering data

Version
0.14mm², 2.5mm², Trapezoidal crimp
Order No.
2903690000
Typ
PZ 2.5 S
GTIN (EAN)
4099986027008
Qty.
1 Styk

Dimensions and weights

Depth
31 mm
Depth (inches)
1,22 inch
Výška
70 mm
Height (inches)
2,756 inch
Šířka
160 mm
Width (inches)
6,299 inch
Délka
160 mm
Length (inches)
6,299 inch
Net weight
290,6 g

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Version
Mechanical, without interchangeable inserts

Popis kontaktu

Conductor cross-section, max. AWG
AWG 14
Conductor cross-section, min. AWG
AWG 26
Crimping range, max.
2,5 mm²
Crimping range, min.
0,14 mm²
Type of contact
Wire-end ferrules with/without plastic collars

tool data crimping

Crimping type/profile
Trapezoidal crimp
Wire end ferrules cross-section, max.
2,5 mm²
Wire end ferrules cross-section, min.
0,14 mm²

Classifications

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
