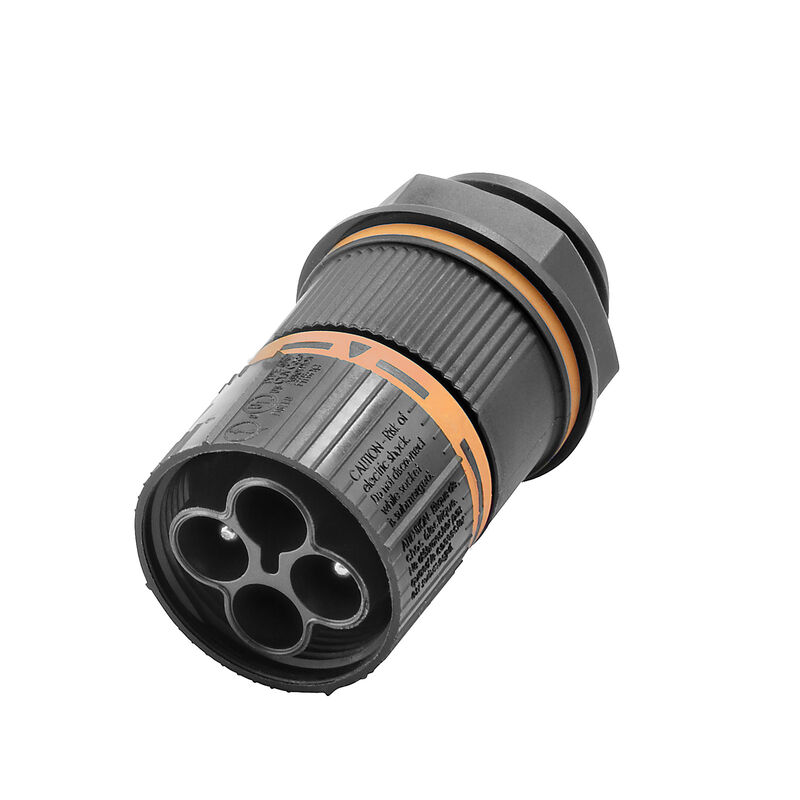

RC M P2 M20 SP

RC M P2 M20 SP

Product ID 2860650000
Gegevensblad downloaden Engineering Support Product Downloads
Příslušenství 3 Is accessoire van 2 Anvendte produkter 2
Tanúsítványok Основные данные для заказа Dimensions and weights 온도 Conformità ambientale del prodotto Technical data customisable plug-in connectors General data Классификации

Tanúsítványok

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

Основные данные для заказа

Order No.
2860650000
Type
RC M P2 M20 SP
GTIN (EAN)
4064675576662

Dimensions and weights

Diameter
20 mm
Net weight
12 g

온도

Ambient temperature
-25 °C…125 °C
Operating temperature
-40 °C...85 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme con esenzione
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
b64e9137-212c-40f4-8b4a-2cb7feb25f72

Technical data customisable plug-in connectors

Cable diameter, max.
13 mm
Cable diameter, min.
7 mm
Coding
none
Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0.5 mm²
Connection cross-section, max.
4 mm²
Connection cross-section, min.
0.5 mm²
Contact material
Brass
Contact surface
Brass
Gender of contact
Male
Housing main material
PA 66
LED
No
Nominal current
17.5 A
Nominal voltage
500 V
Number of poles
2
Protection degree
IP68
Shield connection
No
Threaded ring material
Plastic
Type of connection
Screw connection

General data

Connection thread
M20
Housing main material
PA 66
Number of poles
2
Reverse polarity protection
Yes
Type of connection
Csavaros csatlakozás

Классификации

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
