SAIL-M12WM12W-5S5.0U
SAIL-M12WM12W-5S5.0U
Dimensioned drawing
Male, angled
SAIL-M12WM12W-5S5.0U
Dimensioned drawing
Socket angled
SAIL-M12WM12W-5S5.0U
Pole scheme
M12 = A-coded
SAIL-M12WM12W-5S5.0U
Pole scheme
M12 = A-coded
SAIL-M12WM12W-5S5.0U
Wiring diagram

SAIL-M12WM12W-5S5.0U

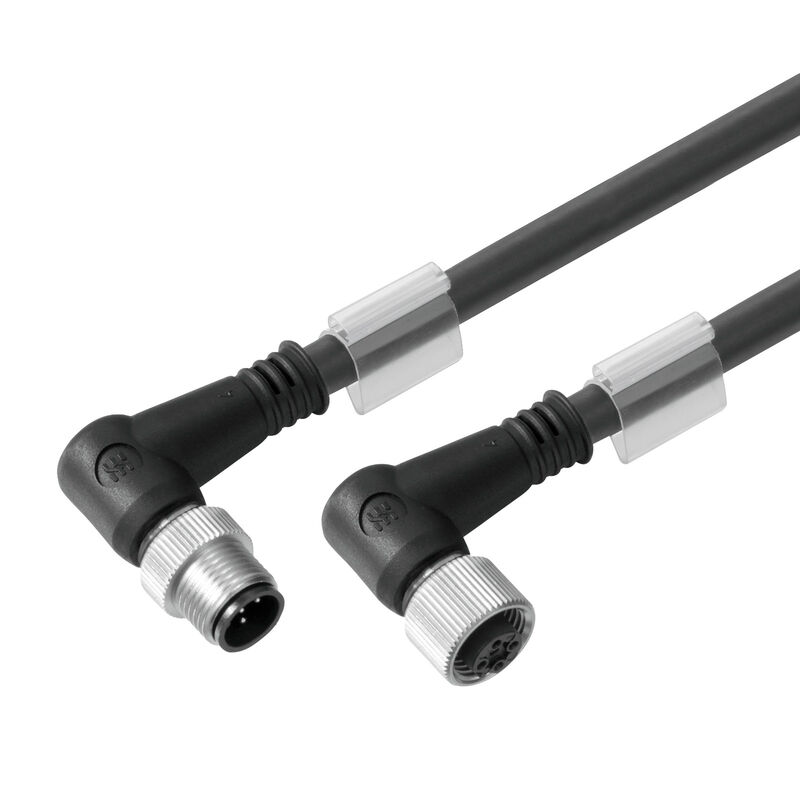

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 5 m, pin, 90° - socket 90°, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 1059740500
Veri sayfasını indir Ürün İndirmleri Mühendislik desteği
Aksesuarlar 6 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 5 m, pin, 90° - socket 90°, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
1059740500
Type
SAIL-M12WM12W-5S5.0U
GTIN (EAN)
4032248807987
Qty.
1 adet

Dimensions and weights

Net weight
233 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Cable length
5 m
Ciclos de flexión
2 Mio
Core cross-section
0,34 mm²
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Kodowanie kolorami
blue
white
brown
grey
black
LABS-mentes
Yes
Longueur de câble configurable
No
Matériau de la gaine
PUR
Number of poles
5
Odporność na iskry spawalnicze
No
Outside diameter
5.7 mm ± 0.2 mm
Radio de flexión mín., con movimiento
10 x cable diameter
Radio de flexión mín., fijo
5 x cable diameter
Resistance to oils
in accordance with IEC 60811:404
Resistant to welding beads
No
Résistance à la flamme
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Sheathing colour
black
Shielded
Yes
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
UL AWM 방식 규격 외부 클래딩
20549 (80 °C / 300 V)
UL AWM 방식 규격 코어
10493 (80 °C / 300 V)
Vitesse
200 m/s
Vridtålighet
0 °/m
静止时的温度范围
-40...80 °C
조사 교차결합
No

General technical data

IP65
IP66
IP67
IP68
when screwed in
Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, 90° - socket 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, angled 90°, Plastic, shielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, angled 90°, Plastic, shielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
