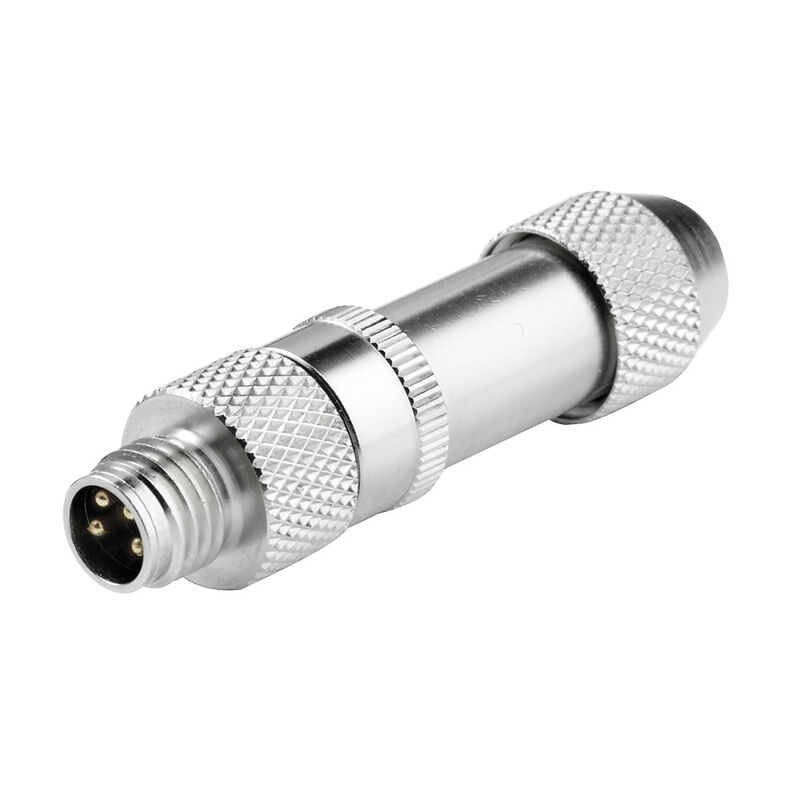

SAISGS-M-3A-6/8-M8
Similar to illustration

SAISGS-M-3A-6/8-M8

Field attachable connector, M8

Item No. 1467550000
Download data sheet Engineering Support Product Downloads
Related products 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Field attachable connector, M8
Order No.
1467550000
Type
SAISGS-M-3A-6/8-M8
GTIN (EAN)
4050118273144
Qty.
1 items

Dimensions and weights

Net weight
31,174 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Imidazolidine-2-thione 96-45-7
SCIP
bcee35cf-c0f5-43d2-8daf-65ab0d08641a

Technical data customisable plug-in connectors

Conductor cross-section, max.
0,5 mm²
Conductor cross-section, min.
0,14 mm²
Gender of contact
Male
Kabeldiameter min.
6 mm
Kódolás
none
Nominal current
4 A
Nominal voltage
60 V
Number of poles
3
Opór izolacji
108 Ω
Plugging cycles
≥ 100
Podstawowy materiał obudowy
CuZn
Pollution severity
3
Protection degree
IP67
Rodzaj przyłącza
Screw connection
Shield connection
Yes
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Диаметр кабеля, макс.
8 mm
접점 표면
Gold-plated

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
