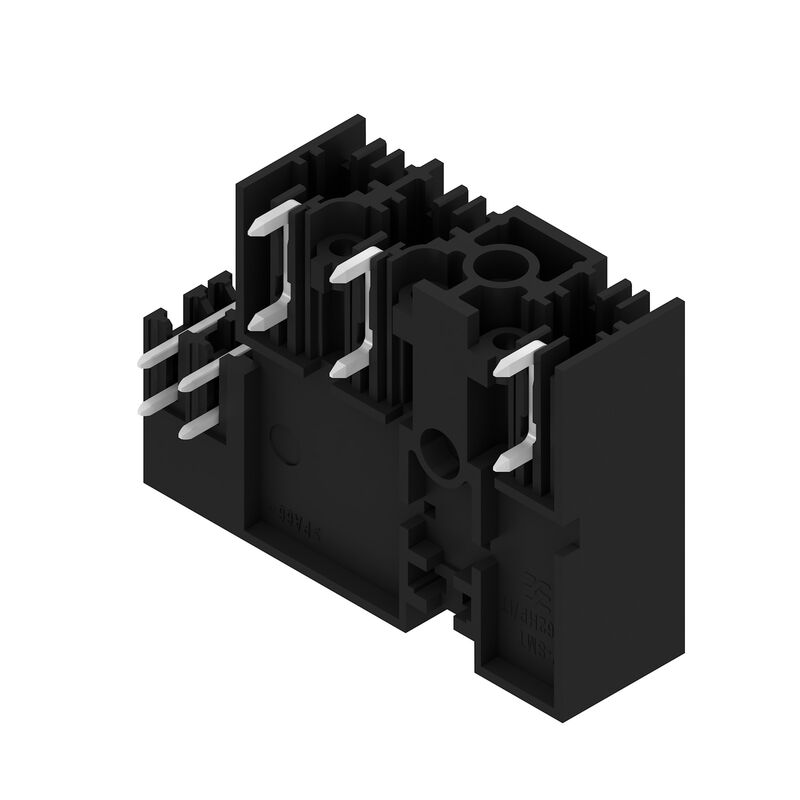

SV-SMT 7.62HP/03/90MF2 SC/4 2.6SN BX
Product image

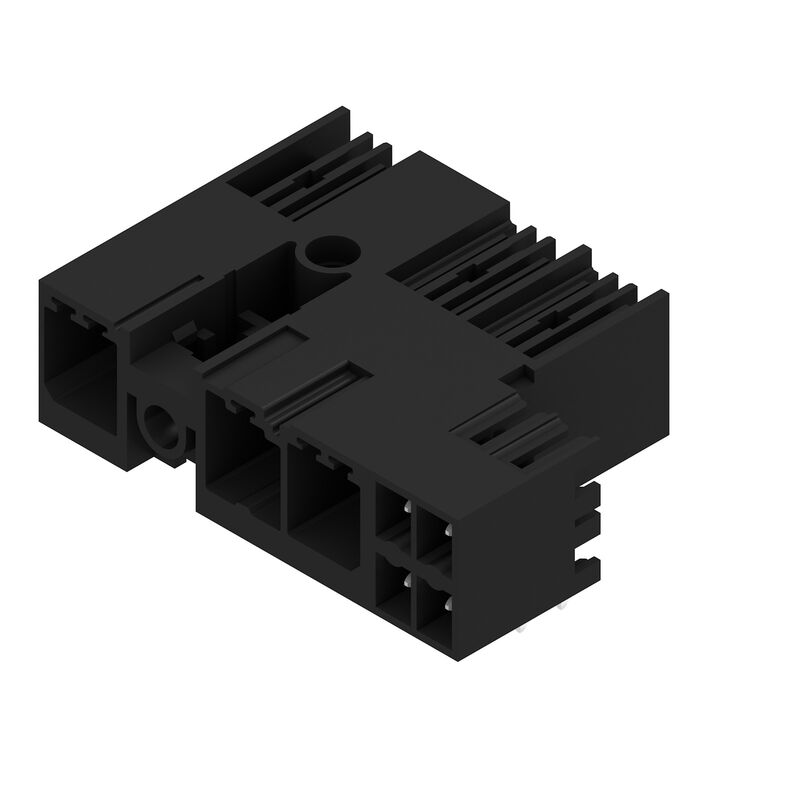

SV-SMT 7.62HP/03/90MF2 SC/4 2.6SN BX
Product image
SV-SMT 7.62HP/03/90MF2 SC/4 2.6SN BX
Dimensional drawing

SV-SMT 7.62HP/03/90MF2 SC/4 2.6SN BX

Dit product is niet meer beschikbaar.

Leiterplattensteckverbinder, Stiftleiste, seitlich geschlossen, Mittelflansch, THT/THR-Lötanschluss, 7.62 mm, Polzahl: 3, 90°, Lötstiftlänge (l): 2.6 mm, verzinnt, schwarz, Box

Product ID 2529740000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Tartozékok 1 Est la pièce opposée de 2 Prodotti correlati 4
Homologaciones Allgemeine Bestelldaten Dimensiones y pesos Conformidad medioambiental del producto Especificaciones del sistema Material data Bemessungsdaten nach IEC Rated data acc. to UL 1059 Embalaje Technical data - hybrid Fontos megjegyzés Klassificeringar

Homologaciones

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cURus)
E60693

Allgemeine Bestelldaten

Ausfuehrung
Leiterplattensteckverbinder, Stiftleiste, seitlich geschlossen, Mittelflansch, THT/THR-Lötanschluss, 7.62 mm, Polzahl: 3, 90°, Lötstiftlänge (l): 2.6 mm, verzinnt, schwarz, Box
Best.-Nr.
2529740000
Art
SV-SMT 7.62HP/03/90MF2 SC/4 2.6SN BX
GTIN (EAN)
4050118539646
VPE
48 items
Product data
IEC: 1000 V / 41 A
UL: 300 V / 33 A
Packaging
Box
Lieferstatus
Discontinued
Datum der letzten Bestellung
/Date(1806444000000)/

Dimensiones y pesos

Tiefe
28,3 mm
Tiefe (inch)
1,114 inch
Höhe
14 mm
Höhe (inch)
0,551 inch
Höjd lägstbyggande
11,4 mm
Breite
39,07 mm
Width (inches)
1,538 inch
Nettogewicht
2 g

Conformidad medioambiental del producto

RoHS-Konformitätsstatus
Conforme sin exención
REACH SVHC
No SVHC above 0.1 wt%

Especificaciones del sistema

Product family
OMNIMATE Power - Serie BV/SV 7.62HP
Type of connection
Przyłącze dla obwodu drukowanego
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Abgangswinkel
90°
Number of poles
3
Number of solder pins per pole
2
Solder pin length (l)
2,6 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Lötstift-Abmessungen
0.8 x 1.0 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
22,86 mm
L1 in inches
0,9 "
L2 in mm
3,81 mm
L2 in Zoll
0,15 "
Anzahl Reihen
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
safe to back of hand above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
2.00 mΩ
Can be coded
Yes
Plugging force/pole, max.
12 N
Pulling force/pole, max.
7 N

Material data

Isolierstoff
PA 9T
Farbe
fekete
Farbtabelle (ähnlich)
RAL 9011
Isolierstoffgruppe
II
Kriechstromfestigkeit (CTI)
≥ 500
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Kontaktmaterial
Cu-alloy
Kontaktoberfläche
tinned
Schichtaufbau - Lötanschluss
1...3 µm Ni / 4...6 µm Sn matt
Schichtaufbau - Steckkontakt
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

Bemessungsdaten nach IEC

geprüft nach Norm
IEC 60664-1
IEC 61984
Bemessungsstrom, min. Polzahl (Tu=20°C)
41 A
Bemessungsstrom, max. Polzahl (Tu=20°C)
41 A
Bemessungsstrom, min. Polzahl (Tu=40°C)
41 A
Bemessungsstrom, max. Polzahl (Tu=40°C)
41 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
1.000 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/2
630 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/3
630 V
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad II/2
6 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/2
6 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/3
6 kV
Kurzzeitstromfestigkeit
3 x 1s with 420 A

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
33 A
Rated current (Use group C / UL 1059)
33 A
Rated current (Use group D / UL 1059)
5 A
Clearance distance, min.
6,9 mm
Creepage distance, min.
9,6 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Embalaje

Verpackung
Caja
VPE Länge
338 mm
VPE Breite
130 mm
VPE height
33 mm

Technical data - hybrid

Pitch in mm (hybrid)
  • nominal:
    3,81 mm
  • Componente híbrido:
    Signal
Raster in mm (Signal)
3.81 mm
Pitch in inch (hybrid)
  • 공칭:
    0,15 "
  • 하이브리드 콤포넌트:
    Signal
Raster in Zoll (Signal)
0.15 "
Pole count (hybrid)
  • nominal:
    4
  • Hybrid component:
    Signal
Number of poles (Signal)
4
Anzahl Lötstifte pro Pol (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1
Number of solder pins per pole (Signal)
1
Solder pin dimensions (hybrid)
  • Solder pin dimensions:
    0.8 x 0.8 mm
  • Hybrid component:
    Signal
Solder pin dimensions (Signal)
0.8 x 0.8 mm
Lötstift-Abmessungen=d Toleranz (Hybrid)
  • Solder pin dimensions = d tolerance:
    • Lower tolerance with prefix (reveals minimum):
      -0,03
    • Upper tolerance with prefix (reveals maximum):
      +0,01
    • Tolerance, unit:
      mm
  • Hybrid component:
    Signal
Solder pin dimensions = d tolerance (Signal)
-0,03 / +0,01 mm
Diameter of solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1,3 mm
PCB hole diameter (Signal)
1.3 mm
Tolerance of the diameter of the solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • Solder eyelet hole diameter tolerance (D):
    ± 0.1 mm
  • Solder eyelet hole diameter tolerance (D):
    + 0,1 mm
PCB hole diameter tolerance (Signal)
± 0.1 mm
L2 in mm
3,81 mm
L2 in inch
0,15 "
Number of rows (hybrid)
  • Hybrid component:
    Signal
Number of rows (Signal)
2
Contact material (hybrid)
  • Hybrid component:
    Signal
  • Contact material:
    CuMg
Contact material (Signal)
CuMg
Contact surface (hybrid)
  • Hybrid component:
    Signal
  • Contact surface:
    tinned
Contact surface (Signal)
tinned
Layer structure of the solder connection (hybrid)
  • Layer structure of the solder connection:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the solder connection (Signal)
1-3 µm Ni / 4-8 µm Sn
Layer structure of the plug contact (hybrid)
  • Layer structure of the plug contact:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the plug contact (Signal)
1-3 µm Ni / 4-8 µm Sn
Rated voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    320 V
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
320 V
Rated voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
160 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/3 (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
160 V
Rated impulse voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
2.5 kV
Rated impulse voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/2 (Signal)
2.5 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/3 (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
2.5 kV
Short-time withstand current capacity (hybrid)
  • Short-time withstand current resistance:
    3 x 1s with 80 A
  • Hybrid component:
    Signal
Short-time withstand current resistance (Signal)
3 x 1s with 80 A
Creepage distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    4,38 mm
Clearance distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    3,6 mm
Rated voltage (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / CSA) (Signal)
300 V
Rated voltage (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / CSA) (Signal)
50 V
Rated current (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group B / CSA) (Signal)
9 A
Rated current (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group C / CSA) (Signal)
9 A
Rated current (Use group D / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group D / CSA) (Signal)
9 A
Rated voltage (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / UL 1059] (Signal)
300 V
Rated voltage (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / UL 1059] (Signal)
50 V
Rated voltage (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group D / UL 1059] (Signal)
300 V
Rated current (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group B / UL 1059) (Signal)
5 A
Rated current (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group C / UL 1059) (Signal)
5 A
Rated current (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal

Fontos megjegyzés

IPC-Konformität
A termékek fejlesztése, gyártása és szállítása a nemzetközileg elismert IPC-A-610 szabvány „megengedhető” kategóriája szerint történt. A termékekkel kapcsolatos további követelményeket kérésre kiértékeljük.
Hinweise
  • Technical specifications refer to the power contacts
  • Technical data of signal contacts: 50V / 5A, stripping length 8mm
  • Rated current related to rated cross-section & min. No. of poles.
  • Specifications of diagram: P1=7.62 mm; P2=3.81 mm
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Klassificeringar

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-03-01
ECLASS 15.0
27-46-03-01
