TRP 24-230VUC 1CO 16A ED2
Product image
Similar to illustration
TRP 24-230VUC 1CO 16A ED2

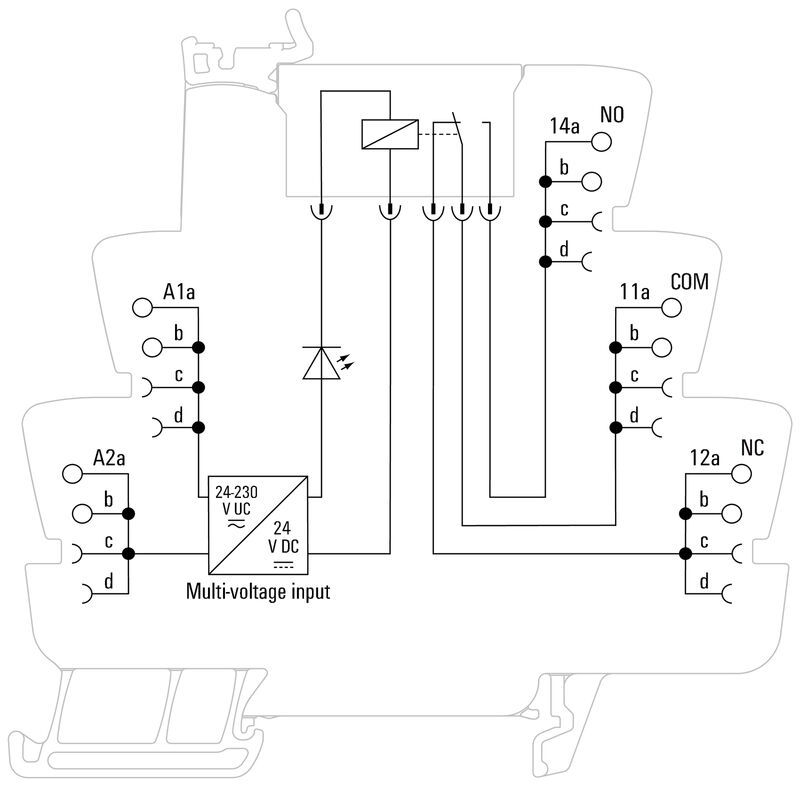

Wiring diagram
TRP 24-230VUC 1CO 16A ED2
Graph
DC load limit curve
Resistive load
TRP 24-230VUC 1CO 16A ED2
Graph
Electrical service life230 V AC resistive load
230 V AC resistive load
TRP 24-230VUC 1CO 16A ED2
Graph
Input current in dependency to input voltage
TRP 24-230VUC 1CO 16A ED2
Dimensional drawing
TRP 24-230VUC 1CO 16A ED2
Miscellaneous
Type codes

TRP 24-230VUC 1CO 16A ED2

TERMSERIES, Relämodul, Antal kontakter: 1, Växlandekontakt AgNi, Märkstyrspänning: 24…230 V UC ±10 %, Varaktig ström: 16 A, PUSH IN, Testknapp finns: Nej

Item No. 2663120000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 27 Individual parts 2 Related products 11
Godkännanden Allmänna beställningsdata Mått och vikter Temperaturer Miljööverenstämmelse för produkt Rated data UL Styrsida Load side Allmänna uppgifter Insulation coordination Further details of approvals / standards Anslutningsdata Classifications

Godkännanden

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

Allmänna beställningsdata

Version
TERMSERIES, Relämodul, Antal kontakter: 1, Växlandekontakt AgNi, Märkstyrspänning: 24…230 V UC ±10 %, Varaktig ström: 16 A, PUSH IN, Testknapp finns: Nej
Order No.
2663120000
Type
TRP 24-230VUC 1CO 16A ED2
GTIN (EAN)
4050118697957
Qty.
10 items

Mått och vikter

Depth
87,8 mm
Byggdjup (tum)
3,457 inch
Height
89,4 mm
Height (inches)
3,52 inch
Width
12,8 mm
Szerokość (cale)
0,504 inch
Net weight
46,2 g

Temperaturer

Storage temperature
-40 °C...85 °C
Ambient temperature
-40 °C…60 °C
Humidity
5-95% relative humidity, Tu = 40°C, without condensation

Miljööverenstämmelse för produkt

RoHS Compliance Status
Kompatibel med undantag
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Ambient temperature (operational), max.
60 °C
Сечение подсоединяемого провода AWG, мин.
AWG 26
Connection cross-section AWG, max.
AWG 14
Type of conductor
rigid copper conductor
flexible copper conductor
Nedsmutsningsgrad
2

Styrsida

Znamionowe napięcie sterowania
24…230 V UC ±10 %
Rated current AC
23.5 mA @ 24 V AC
4.5 mA @ 230 V AC
Rated current DC
22.5 mA @ 24 V DC
2.0 mA @ 230 V DC
Power rating
540 mW @ 24 V DC
460 mW @ 230 V DC
565 mVA @ 24 V AC
1.0 VA @ 230 V AC
Wskazanie statusu
Green LED
Protective circuit
Rectifier
Coil voltage of the replacement relay deviating from the rated control voltage
Yes
Coil voltage of the replacement relay
24 V DC

Load side

znamionowe napięcie załączające
250 V AC
Continuous current
16 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
10 mA @ 10 V
100 mA @ 5 V
Inrush current
30 A / 4 s
Obciążalność przy napięciu przemiennym (obciążenie rezystancyjne), maks.
4000 VA
Obciążalność przy napięciu stałym (obciążenie rezystancyjne), maks.
384 W @ 24 V
Switch-on delay
≤ 50 ms
Switch-off delay
≤ 50 ms
Contact type
1 CO contact (AgNi)
Mechanical service life
30 x 106 switching cycles

Allmänna uppgifter

Operating altitude
≤ 2000 m
över havsytan
Mounting rail
TS 35
Test button available
No
Mechanical switch position indicator
No
Colour
black
Komponent o klasie palności UL94
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Retaining clip
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

Rated voltage
300 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 6 mm
Dielectric strength for control side - load side
3.51 kVeff /1 min.
Type of isolation at input and output
reinforced insulation
wytrzymałość napięciowa względem szyny nośnej
3.51 kVeff / 1 min.
Protection degree
IP20

Further details of approvals / standards

Certificate No. (DNV)
TAA00001E5
Certificate no. (cULus)
E141197

Anslutningsdata

Wire connection method
PUSH IN
Stripping length, rated connection
9 mm
Zakres zacisków przyłącza pomiarowego
1,5 mm²
Zakres zaciskania, min.
0,14 mm²
Zakres zaciskania, maks.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Przekrój przyłącza przewodu, jednodrutowy, min.
0,14 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Wielkość ostrza
0.4 x 2.0 mm

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
