VCG 24V EX 4 G 1/2
VCG 24V EX 4 G 1/2
VCG 24V EX 4 G 1/2

VCG 24V EX 4 G 1/2

Produkt ID 2593170000
Download datablad Product Downloads
Anvendte produkter 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Protection Ex - Data Allmänna data 정격 데이터 IEC / EN Connection data General data Ratings IECEx/ATEX/cUL Guarantee Classifications

Approvals

Agréments
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

N. d’ordine
2593170000
Type
VCG 24V EX 4 G 1/2
GTIN (EAN)
4050118605150
Qté.
1 Styk

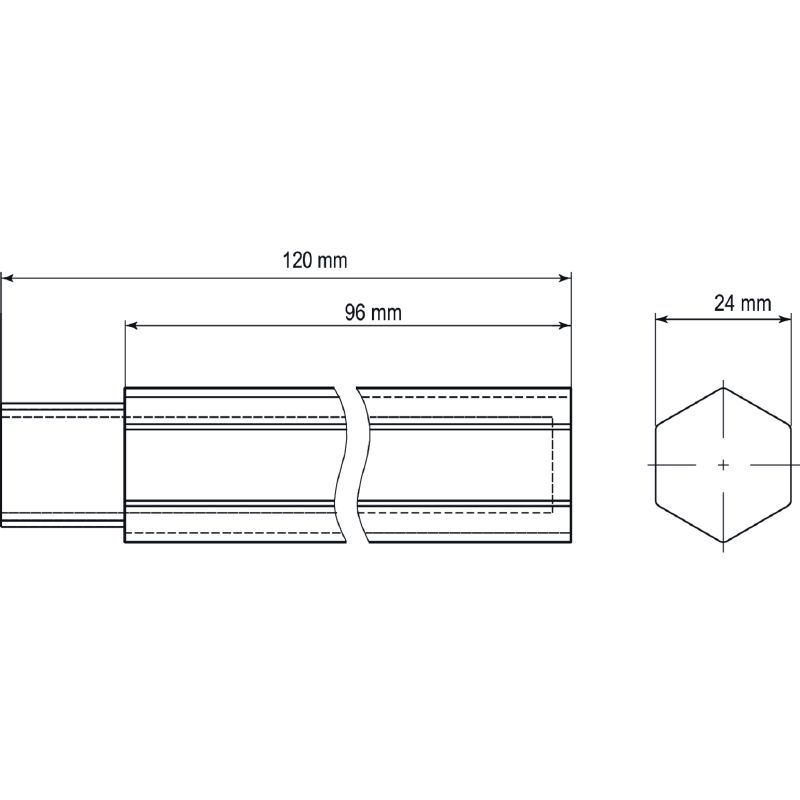

Dimensions and weights

Height of lowest version
96 mm
Width
28 mm
Width (inches)
1,102 inch
Longueur
120 mm
Length (inches)
4,724 inch
Diameter
28 mm
Net weight
300 g

Temperatures

Température de stockage
-30 °C...60 °C
Température de fonctionnement
-30 °C...60 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Protection Ex - Data

ATEX - dust labelling
IEC Ex BAS 18.0085X
Ex ia IIIC T85 °C Da
(-30 °C≤Ta≤50 °C)
ATEX - gas labelling
18ATEX0141X
II 1GD
Ex ia II T6 Ga
(-30 °C≤Ta≤50 °C)
Puissance d'entrée max. PI
2 W
Input current, max. Ii
0,8 A
Internal capacity, max. CI
0 nF
Internal inductance, max. LI
60 µH

Allmänna data

Colour
Silver
FIELD BUS FOUNDATION BUS H1 compatible
According to IEC 61158-2
Protection degree
IP67
Segment
Measurement - Monitoring - Setting
Version
Stainless steel screw mounting housing

정격 데이터 IEC / EN

Bleskový testovací proud, Iimp (10/350 µs) vodič-vodič
2 kA
Blitzprüfstrom, Iimp (10/350 µs) Ader-PE
2 kA
Corriente de descarga Imáx. (8/20µs) conductor-conductor
20 kA
Dielectric strength at FG against PE
≥ 500 V
Discharge current Imax (8/20µs) wire-PE
20 kA
Discharge current In (8/20µs) wire-wire
10 kA
Frequency range, min.
0 Hz
Rated load current IL
800 mA
Rated voltage (AC)
24 V
Rated voltage (DC), max.
33 V
Response time / fallback time
< 1 ns

Connection data

Cross-section
1 mm²
Wire connection method
Cable length: 250 mm (min.)
Type of connection
Screw connection

General data

Protection degree
IP67
Colour
silver

Ratings IECEx/ATEX/cUL

ATEX - dust labelling
IEC Ex BAS 18.0085X
Ex ia IIIC T85 °C Da
(-30 °C≤Ta≤50 °C)
ATEX - gas labelling
18ATEX0141X
II 1GD
Ex ia II T6 Ga
(-30 °C≤Ta≤50 °C)

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-02
ECLASS 15.0
27-17-15-02
