Ominaisuudet
| Version | WAVESERIES, Surge protection, Surge protection, Attenuation at 100 MHz: 40 dB |
| Order No. | 8614800000 |

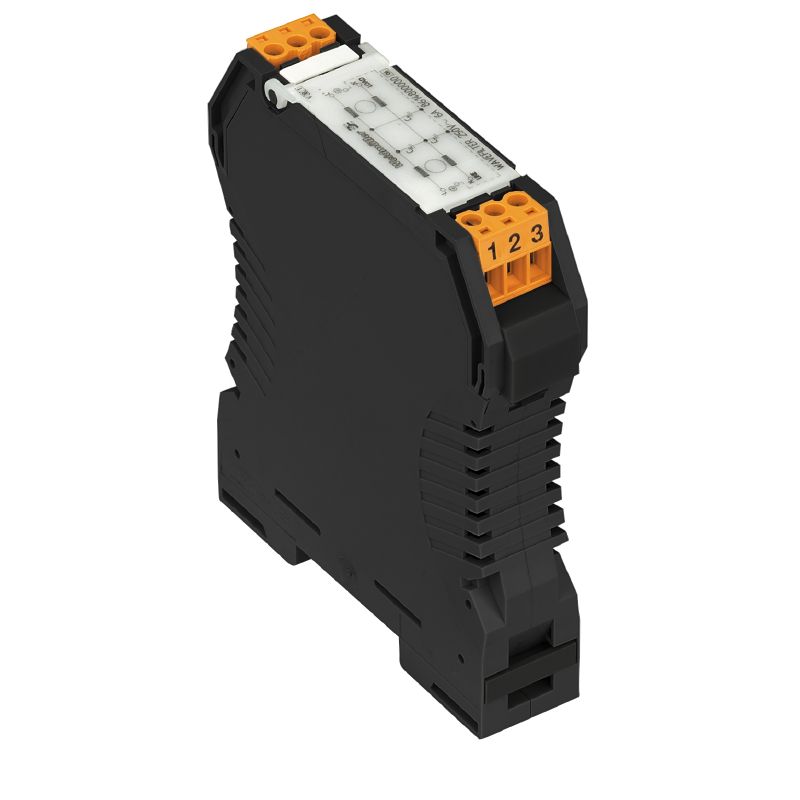

| Type | WAVEFILTER 6A |
| GTIN (EAN) | 4032248277094 |
| Qty. | 1 items |
| Depth | 110,5 mm |
| Depth (inches) | 4,35 inch |
| Height | 96,5 mm |
| Height (inches) | 3,799 inch |
| Width | 22,5 mm |
| Width (inches) | 0,886 inch |
| Net weight | 112,12 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -20 °C...40 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Design | Wave 22.5 L |
| Height with TS 35 | 112,4 mm |
| Protection degree | IP20 |
| Rail | TS 35 |
| Segment | Power distribution |
| Version | Surge protection |
| Pollution severity | 2 |
| Surge voltage category | III |
| Attenuation at 0.15 MHz | < 0.5 dB |
| Attenuation at 1 MHz | 18 dB |
| Attenuation at 10 MHz | 45 dB |
| Attenuation at 100 MHz | 40 dB |
| Capacitance | Cx: 33 nF / Cand : 22 nF |
| Fuse | 6.3 A |
| Inductance L and L1 | 0,8 mH |
| Leakage current at Un | 190 µA |
| Rated current IN | 6 A |
| Rated voltage (AC) | 250 V |
| Rated voltage (DC) | 250 V |
| Test voltage P-N | 1700 V DC |
| Test voltage P/N-PE | 2000 V AC |
| Voltage type | AC/DC |
| Cross-section | 2,5 mm² |
| Tightening torque, min. | 0,4 Nm |
| Tightening torque, max. | 0,6 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Voltage type | AC/DC |
| Protection degree | IP20 |
| Colour | black |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_86277) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_206164) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8614800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8614800000) |
| User Documentation | [Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_42845) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002623 |
| ETIM 7.0 | EC002623 |
| ETIM 8.0 | EC002623 |
| ETIM 9.0 | EC002623 |
| ECLASS 9.0 | 27-18-28-14 |
| ECLASS 9.1 | 27-42-02-08 |
| ECLASS 10.0 | 27-18-28-14 |
| ECLASS 11.0 | 27-18-28-14 |
| ECLASS 12.0 | 27-18-28-14 |
| ECLASS 13.0 | 27-18-28-14 |
| ECLASS 14.0 | 27-18-28-14 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E64388 |
