WGKV 16/Z GY BX
Product image
Similar to illustration
WGKV 16/Z GY BX

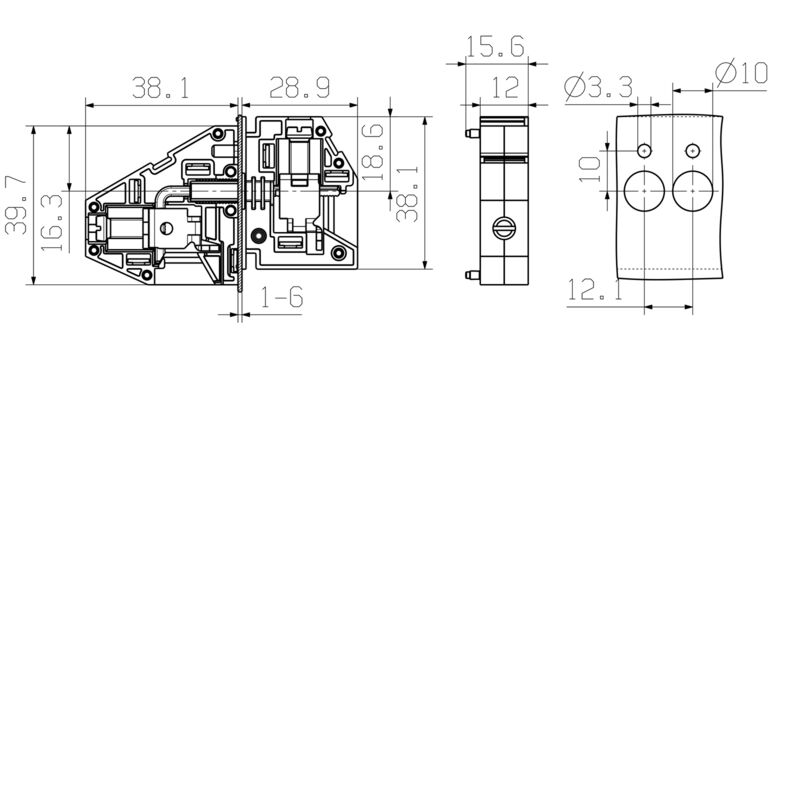

Dimensional drawing
WGKV 16/Z GY BX
Derating curve

WGKV 16/Z GY BX

OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 16 mm², Wemid (PA), Direct mounting, Feed-through (bushing)

Produkt ID 2440730000
Download datablad Engineering-support Produktdownloads
Tilbehør 6 Anvendte produkter 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Nenndaten nach CSA Rated data acc. to UL 1059 Packing Wichtiger Hinweis Klassifikationen

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Konform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 16 mm², Wemid (PA), Direct mounting, Feed-through (bushing)
Order No.
2440730000
Type
WGKV 16/Z GY BX
GTIN (EAN)
4050118468205
Qty.
50 items
Product data
IEC: 500 V / 76 A / 0.5 - 25 mm²
UL: 600 V / 85 A / AWG 20 - AWG 4
Packaging
Box

Dimensions and weights

Height
39,7 mm
Höhe (inch)
1,563 inch
Höhe niedrigstbauend
39,7 mm
Width
15,7 mm
Width (inches)
0,618 inch
Length
15,6 mm
Length (inches)
0,614 inch
Net weight
33,68 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

System parameters

Product family
OMNIMATE Power - series WGK
Wire connection method
Schraubanschluss
Conductor outlet direction
90°/270°
Number of poles
1
Pin series quantity
1
Fitted by customer
Oui
Screwdriver blade
1,0 x 5,5
Coppia di serraggio, min.
2 Nm
Coppia di serraggio, max.
2,3 Nm
Vite di serraggio
M 5
Lunghezza di spellatura
16 mm
Protezione da contatto accidentale secondo DIN VDE 0470
IP 20
Protection degree
IP20
Тип соединения 1
Винтовая зажимная клетка
Type of connection 2
Clamping yoke

Material data

Insulating material
Wemid (PA)
Colour
grey
Colour chart (similar)
RAL 7035
UL 94 flammability rating
V-0
Contact material
Lega in rame
Contact surface
stagnato
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Clamping range, min.
0,5 mm²
Clamping range, max.
25 mm²
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section AWG, max.
AWG 4
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
16 mm²
Stranded, min. H07V-R
10 mm²
Stranded, max. H07V-R
25 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
16 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
16 mm²
Conduttore innestabile
  • Sezione trasversale per il collegamento del conduttore:
    • Tipo:
      con cablaggio di precisione
    • nominale:
      4 mm²
  • terminale:
    • Lunghezza di spellatura:
      • nominale:
        15 mm
    • Terminale consigliato:
      9004100000
  • Sezione trasversale per il collegamento del conduttore:
    • Tipo:
      con cablaggio di precisione
    • nominale:
      6 mm²
  • terminale:
    • Lunghezza di spellatura:
      • nominale:
        15 mm
    • Terminale consigliato:
      0124700000
  • Sezione trasversale per il collegamento del conduttore:
    • Tipo:
      con cablaggio di precisione
    • nominale:
      10 mm²
  • terminale:
    • Lunghezza di spellatura:
      • nominale:
        15 mm
    • Terminale consigliato:
      0124800000
  • Sezione trasversale per il collegamento del conduttore:
    • Tipo:
      con cablaggio di precisione
    • nominale:
      16 mm²
  • terminale:
    • Lunghezza di spellatura:
      • nominale:
        15 mm
    • Terminale consigliato:
      0124300000
Reference text
La lunghezza dei terminali deve essere scelta a seconda del prodotto e della tensione nominale.
Il diametro esterno del collare isolante non dovrebbe essere più largo del passo (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
Rated current, min. number of poles (Tu=20°C)
76 A
Rated current, max. number of poles (Tu=20°C)
76 A
Rated voltage for surge voltage class / pollution degree III/3
500 V
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV

Nenndaten nach CSA

Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
85 A
Rated current (Use group C / CSA)
85 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 20
Wire cross-section, AWG, max.
AWG 4

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
300 V
Névleges áram (B felhasználási csoport/ UL 1059)
85 A
Rated current (Use group C / UL 1059)
85 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 20
Sezione di collegamento cavo AWG, max.
AWG 4
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
319 mm
VPE width
168 mm
VPE height
49 mm

Wichtiger Hinweis

Notes
  • Luft- und Kriechstrecken zu anderen Bauteilen sind entsprechend der jeweils relevanten Anwendungsnormen zu gestalten. Dies kann im Gerät durch Vollverguss oder den Einsatz von zusätzlichen Distanzplatten gewährleistet werden.
  • Bemessungsdaten sind bezogen auf das jeweilige Bauteil. Luft- und Kriechstrecken zu anderen Bauteilen sind entsprechend der jeweils relevanten Anwendungsnormen zu gestalten.
  • Farben: SW = Schwarz; GN/YL = Grün/Gelb; GY = Grau
  • Weitere Varianten auf Anfrage
  • WGK: Bemessungsspannung Kunststoffwände: 1 - 6 mm = 800 V; Metallwände: 1 - 2,5 mm = 800 V; Metallwände: 2,5 - 4 mm = 690 V; Metallwände: 4 - 6 mm = 500 V
  • Langzeitlagerung des Produkts bei einer Durchschnittstemperatur von 50 °C und einer maximalen Luftfeuchtigkeit von 70 %, 36 Monate


Klassifikationen

ETIM 8.0
EC001283
ETIM 9.0
EC001283
ETIM 10.0
EC001283
ECLASS 14.0
27-14-11-34
ECLASS 15.0
27-14-11-34
