ACT20M-TCI-AO-S
Product image
ACT20M-TCI-AO-S

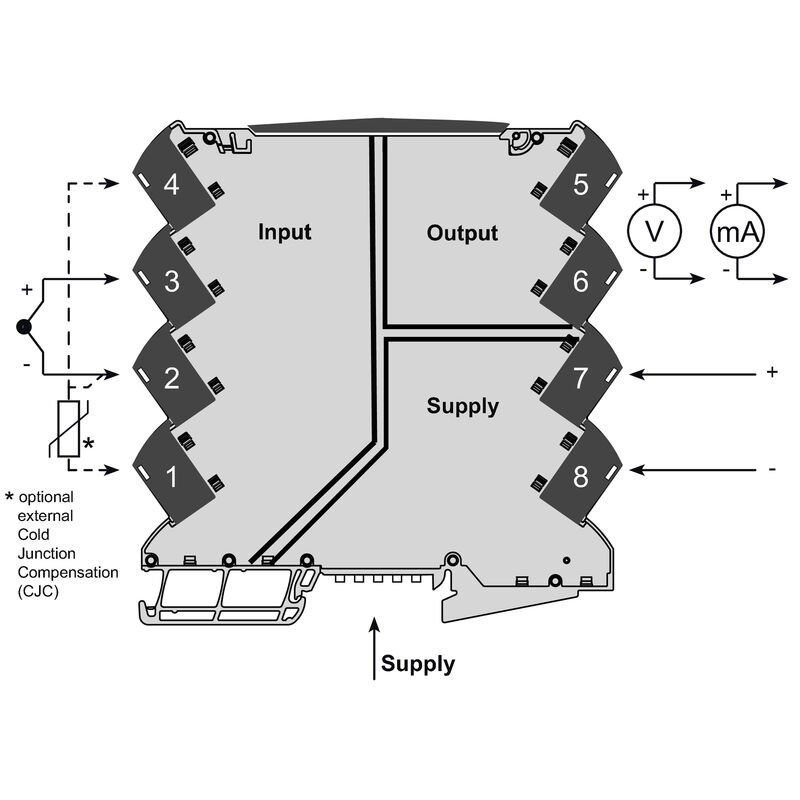

Connection diagram
ACT20M-TCI-AO-S
Dimensional drawing
ACT20M-TCI-AO-S
ACT20M-TCI-AO-S
ACT20M-TCI-AO-S

ACT20M-TCI-AO-S

Convertisseurs de signaux de température, Thermocouple, Avec séparation galvanique, Entrée : Température, thermocouple, Sortie : I / U

Product ID 1375480000
Openen in configurator
Gegevensblad downloaden Tekninen tuki Ohjelmistotuki Tuotelataukset
Accessoires 4 Autres produits de la même gamme 6
Agréments Informations générales de commande Dimensions et poids Températures Meghibásodási valószínűség Conformité environnementale du produit Input Output General data Insulation coordination Data for Ex applications (ATEX) Caractéristiques de raccordement EMC conformity and approvals Part description Besorolások

Agréments

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33adcb9c-2865-4cbb-8057-1da77b87f940/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/6bcf1f04-895d-40c6-8f30-a01c9cbab475/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Megfelel
UL File Number Search
[UL weboldal](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E337701

Informations générales de commande

Version
Convertisseurs de signaux de température, Thermocouple, Avec séparation galvanique, Entrée : Température, thermocouple, Sortie : I / U
Order No.
1375480000
Type
ACT20M-TCI-AO-S
GTIN (EAN)
4050118259650
CPZ
1 Pezzo

Dimensions et poids

Depth
114,3 mm
Profondeur (pouces)
4,5 inch
Height
112,5 mm
Hauteur (pouces)
4,429 inch
Width
6,1 mm
Szélesség (coll)
0,24 inch
Peso netto
84 g

Températures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C
Humidity at operating temperature
da 0 a 95 % (senza formazione di condensa)
Umidità
40°C/93% umidità rel., senza condensa

Meghibásodási valószínűség

MTBF
147 a

Conformité environnementale du produit

RoHS Compliance Status
Conforme avec exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Number inputs
1
Sensor
Thermocouples: J, K
Temperature input range
konfigurierbar
J: (-100…+1200 °C)
K: (-180…+1372 °C)
min. Messbereich 50°C (TC)

Output

Load impedance current
≤ 600 Ω
load impedance voltage
≥ 10 kΩ
Number of outputs
1
Output current
configurable
0...20 mA
4...20 mA
Output voltage, note
configurable
0(2)...10 V
0(1)...5 V
Type
active
connected control must be passive
Wire break detection
Sí
Configurable
3,5 mA / 23 mA / ninguno

General data

Accuracy
absolute accuracy: <±0.05 % of the measurement range
Basic accuracy: <±0.5°

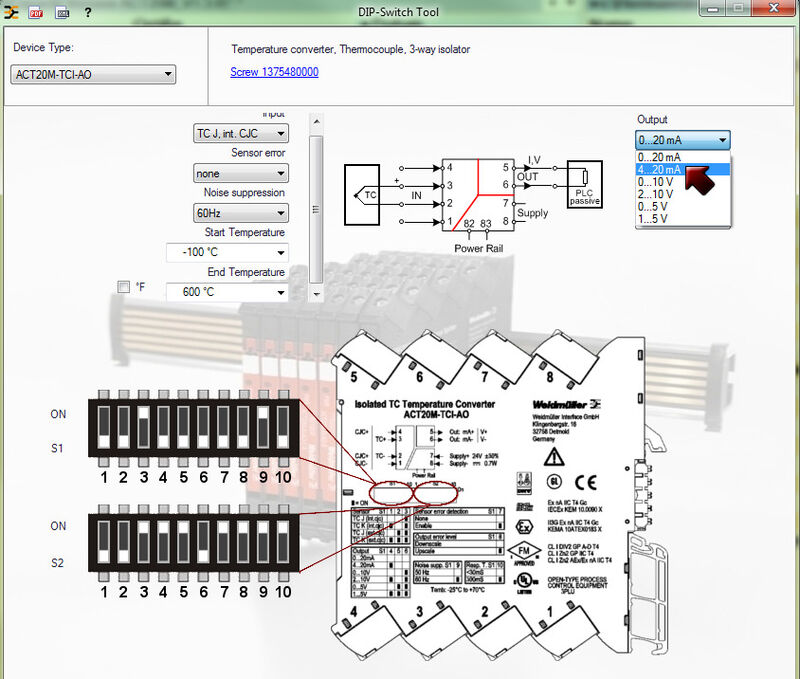

Configuration
DIP switch
Delivery state
  • Setting parameters:
    Input
  • Configuration:
    0 °C
  • Setting parameters:
    Bandwidth
  • Configuration:
    50 Hz
  • Setting parameters:
    Output 1
  • Configuration:
    0...20 mA
  • Setting parameters:
    Output 2
  • Configuration:
    0...20 mA
  • Setting parameters:
    Sensor error detection
  • Configuration:
    enabled
  • Setting parameters:
    Step response time
  • Configuration:
    < 30 ms
  • Setting parameters:
    Noise suppression
  • Configuration:
    enabled
Delivery state
Input: 0 °C // Bandwidth: 50 Hz // Output 1: 0...20 mA // Output 2: 0...20 mA // Sensor error detection: enabled // Step response time: < 30 ms // Noise suppression: enabled
Mounting rail
TS 35
Nominal power consumption
0,5 VA
Operating altitude
≤ 2000 m
Power consumption, max.
0,7 W
Power consumption, typ.
0,49 W
Protection degree
IP20
Step response time
Configurable
≤ 30 ms
<300 ms
Supply voltage
24 V DC ±30 % at terminal or via CH20M rail bus
Temperature coefficient
0,1 °C ⁄ °C
nebo
≤0,01% des Messbereichs⁄°C

Insulation coordination

EMC standards
IEC 61326-1
Galvanic isolation
3-way isolator
Insulation voltage
2.5 kVeff /1 min.
Pollution severity
2
Rated voltage
300 Veff
Surge voltage category
II

Data for Ex applications (ATEX)

IECEx - gas labelling
Ex nA IIC T4 Gc
Standard: IEC 60079-0-15
Installation location
Device installed in safe area, zone 2
Marking
II 3 G Ex nA IIC T4 Gc

Caractéristiques de raccordement

Type of connection
Raccordement vissé
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,6 Nm
Campo di serraggio, collegamento di dimensionamento
2,5 mm²
Campo di sezioni, min.
0,5 mm²
Campo di sezioni, max.
2,5 mm²
Sezione di collegamento cavo AWG, min.
AWG 30
Sezione di collegamento cavo AWG, max.
AWG 14

EMC conformity and approvals

EMC standards
IEC 61326-1
Standards
IEC 61010-1

Part description

Product description
The ACT20M-TCI-AO-S configurable temperature transducer isolates and converts analogue signals. An analogue thermocouple input signal (Type J, K) is linearly converted into an analogue output signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation) and this is done with direct wiring or over the Weidmüller rail bus.

Besorolások

ETIM 8.0
EC002919
ETIM 9.0
EC002919
ETIM 10.0
EC002919
ECLASS 14.0
27-21-01-29
ECLASS 15.0
27-21-01-29
