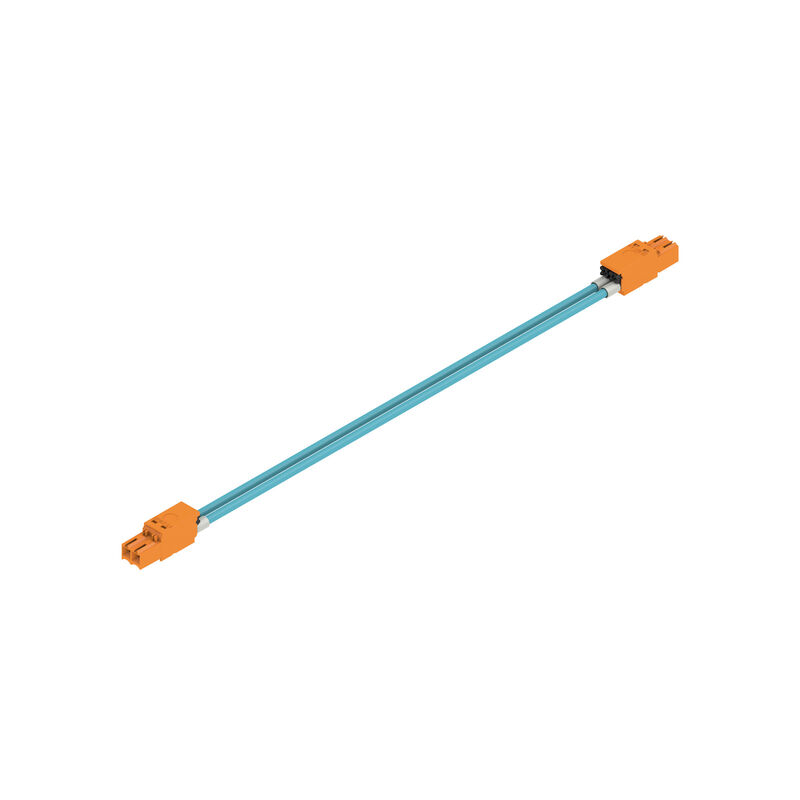

Smart Metering Cable Assemblies, 6 kV, IP20 in installed state, 24 V, Li9YH 1 x 0,75, 0.15 m

Product ID 3210930015
Gegevensblad downloaden
Verwante producten 5
General ordering data Dimensions and weights General Technical Data Technical specifications for cable Classifications

General ordering data

Version
Smart Metering Cable Assemblies, 6 kV, IP20 in installed state, 24 V, Li9YH 1 x 0,75, 0.15 m
Order No.
3210930015
Type
CH-J655-DXD-00.15-VPE10
GTIN (EAN)
4069166000251
Qty.
10 items

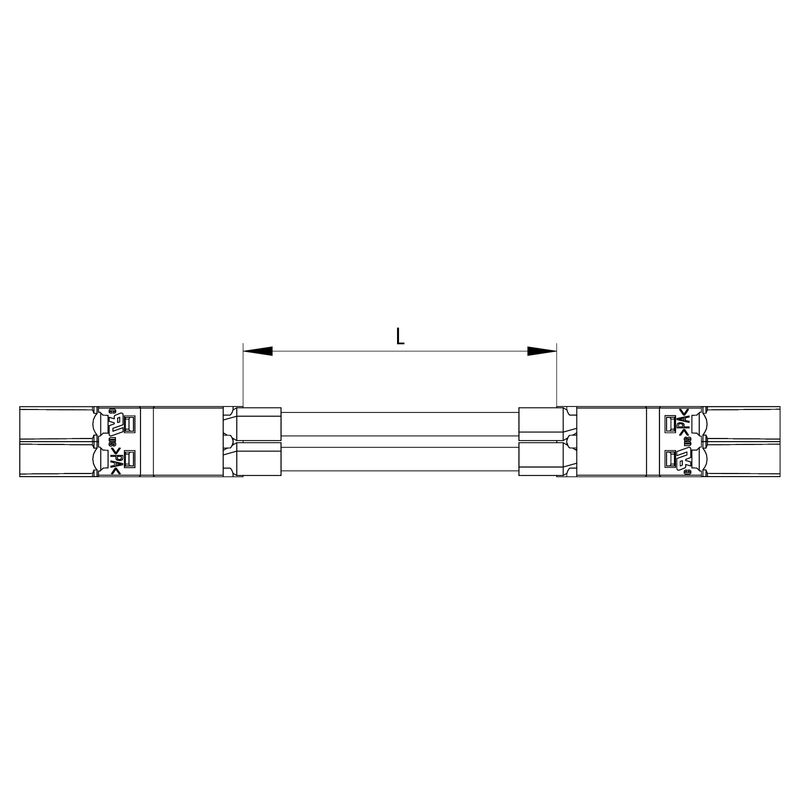

Dimensions and weights

Length
150 mm
Length (inches)
5,905 inch
Diameter
1,65 mm
Net weight
1,4 g

General Technical Data

Applications
Indoor
Nominal current
9 A
Nominal voltage
24 V
Number of poles
2
Pin arrangement
1:1, numbered cores
Pollution severity
3
Protection degree
IP20 in installed state
Rated impulse withstand voltage
6 kV
Standards
DIN VDE 0603-100
Surge voltage category
III

Technical specifications for cable

blue
Bending radius, min., moving
15 x cable diameter
Bending radius, min., stationary
8 x cable diameter
Cable length
0,15 m
Cable length, string 1
0,15 m
Cable length, string 2
0,15 m
Cable Material
Polyolefine
Core cross-section
0,75 mm²
Halogen
halogen-free
Insulation
PP
Line type
Li9YH 1 x 0,75
Number of wires
2
Resistance to oils
No
Shielded
No
Temperature range, moving, max.
90 °C
Temperature range, moving, min.
-25 °C
Temperature range, stationary, max.
90 °C
Temperature range, stationary, min.
-25 °C

Classifications

ETIM 8.0
EC001576
ETIM 9.0
EC001576
ETIM 10.0
EC001576
ECLASS 14.0
27-06-04-02
ECLASS 15.0
27-06-04-02
