CH-W-S-A11-S-V
CH-W-S-A11-S-V
CH-W-S-A11-S-V

CH-W-S-A11-S-V

This product is discontinued.

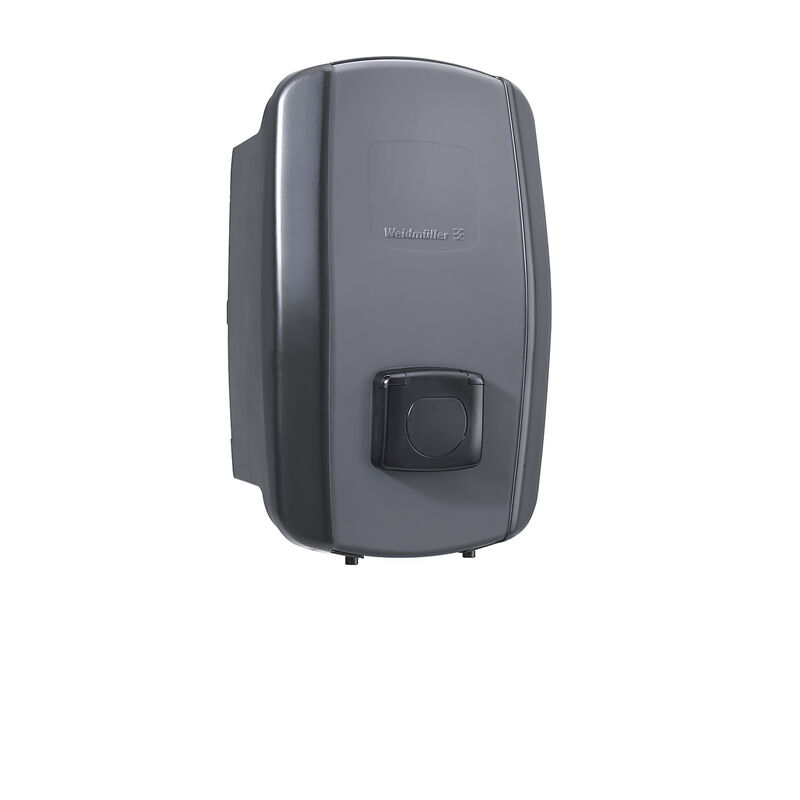

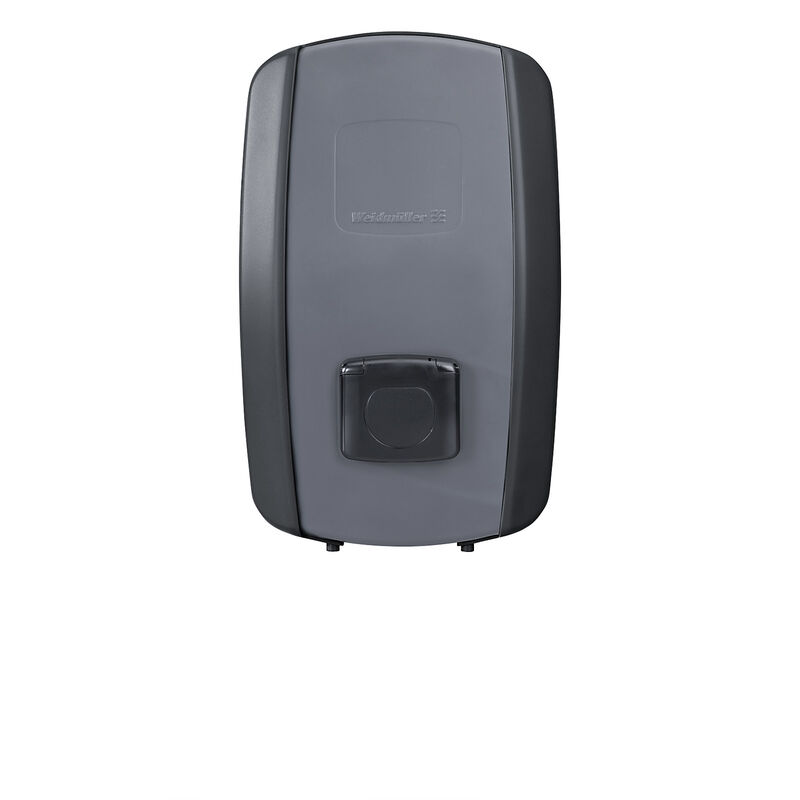

Wallbox, max. charging capacity of 11 kW @ 3-phase (400 V) grid connection, max. current 16 A, Type 2 socket outlet, Mobile App, RFID/NFC

Item No. 2875220000
Download data sheet Engineering Support Product Downloads
Accessories 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

버전
Wallbox, max. charging capacity of 11 kW @ 3-phase (400 V) grid connection, max. current 16 A, Type 2 socket outlet, Mobile App, RFID/NFC
N. d’ordine
2875220000
Type
CH-W-S-A11-S-V
GTIN (EAN)
4064675650782
Qty.
1 items
Delivery status
Discontinued
Dostępne do
16.04.2025

Dimensions and weights

Depth
167 mm
Depth (inches)
6,575 inch
Высота
439 mm
Height (inches)
17,283 inch
Szerokość
273 mm
Width (inches)
10,748 inch
Net weight
4 300 g

Temperatures

Температура хранения
-40 °C...70 °C
Рабочая температура
-30 °C...50 °C
Wilgotność
5 - 95% rel. humidity

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
d677010f-3c13-4196-b022-f62e8f2ef6a2

Classifications

ETIM 8.0
EC002883
ETIM 9.0
EC002883
ETIM 10.0
EC002883
ECLASS 14.0
27-14-47-01
ECLASS 15.0
27-14-47-01
