MCZ SC 0-10V

Limit value monitoring, Input : 0-10 V, Output 2 x transistor

Product ID 8260280000

Eigenschappen

General ordering data

Version	Limit value monitoring, Input : 0-10 V, Output 2 x transistor
Order No.	8260280000
Type	MCZ SC 0-10V
GTIN (EAN)	4008190985417
Qty.	10 items

Dimensions and weights

Depth	63,2 mm
Depth (inches)	2,488 inch
Width	6 mm
Width (inches)	0,236 inch
Length	91 mm
Length (inches)	3,583 inch
Net weight	29,6 g

Temperatures

Storage temperature	-25 °C...60 °C
Operating temperature	-20 °C...60 °C
Humidity at operating temperature	0...95 % (no condensation)

Probability of failure

SIL in compliance with IEC 61508	None
MTTF	681 a

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	35d83707-6a3b-45b5-b9f8-6ba8184c863e

Input

Input current	0.5...20 mA
Input resistance, current	50 Ω
Voltage drop	1 V

Output

Cut-off frequency (-3 dB)	100 Hz
Number of outputs	2

General data

Configuration	Potentiometer
Current consumption	15 mA
Galvanic isolation	between input ⁄ output ⁄ supply ⁄ relay
Nominal power consumption	1,5 VA
Protection degree	IP20
Rail	TS 35
Step response time	<250 µs (switching threshold at 90% of max. input signal; R_I ≤ 1 kΩ)
Temperature coefficient	± 250 ppm/K 350 ppm/K
Voltage supply	24 V DC ± 20 %

Insulation coordination

EMC standards	EN 55011 EN 61000-6
Galvanic isolation	between input ⁄ output ⁄ supply ⁄ relay

Connection data

Type of connection	TOP connection Screw connection
Clamping range, rated connection	1,5 mm²
Clamping range, min.	0,5 mm²
Clamping range, max.	1,5 mm²

Downloads

Approval/Certificate/Document of Conformity	[Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35678)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55023)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.8260280000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8260280000)
User Documentation	[Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35659)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002654
ETIM 7.0	EC002654
ETIM 8.0	EC002654
ETIM 9.0	EC002654
ECLASS 9.0	27-21-01-22
ECLASS 9.1	27-21-01-22
ECLASS 10.0	27-21-01-22
ECLASS 11.0	27-21-01-22
ECLASS 12.0	27-21-01-22
ECLASS 13.0	27-21-01-22
ECLASS 14.0	27-21-01-22

Tender specification sheets

Long specification

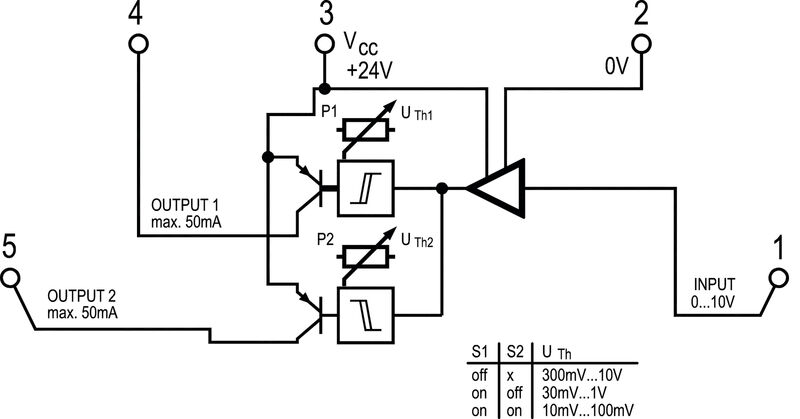

Trip amplifier for monitoring a 0...10 V standard signal with two switching outputs
Trip amplifier in 6 mm width for analogue 0...10 V standard signals with two PNP-transistor switch outputs
for monitoring an upper and lower threshold (adjustable via potentiometer).
DIP switches can be used to select a range of 300 mV to 10 V, 30 mV to 1 V, and 10 mV to 100 mV on the input side.

Add-on housing for TS35 rail mounting
Dimensions: L/W/H 91/ 6/ 63.2 mm
Tension-clamp connection / Nominal cross-section 1.5 mm²Protection degree: IP 20

Input                             0...10 V
                                          ranges 300 mV...10 V / 30 mV...1 V / 10 mV...100 mV
Output                                                 Double switching output PNP/ 50 mA per channel
                                          adjustable via potentiometer
Switching hysteresis 1 % of input
Step response time           < 250 us (10...90 %)
Temperature coefficient       < 250 ppm K
Auxiliary power                                         24 V DC +/- 20 %
Ambient
temperature range 0°C...+50 °C

Isolation 1.5 kV
Approvals cURus, CSA

Type MCZ SC 0-10V

Short specification

Approvals

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)	E141197
